Product Details:
Payment & Shipping Terms:
|
| Dot Matrix: | 128*64 | Polarizer Mode: | Transflective, Positive |
|---|---|---|---|
| Drive Method: | 1/9 Bias, 1/65 Duty | Logic Supply: | 3 V |
| IC: | ST7567 | Operating Temp: | -20 To +70 Celsius Degree |
| Storage Temp: | -30 To +80 Celsius Degree | Module Size: | 31.00*25.00*1.70 Mm |
| High Light: | mini size 128*64 LCD Module,128*64 LCD Module With ST7567,FSTN transflective positive 128*64 LCD Module |
||

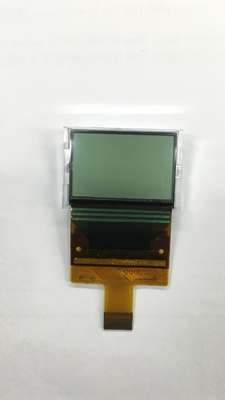

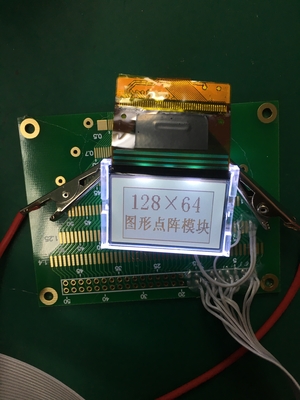

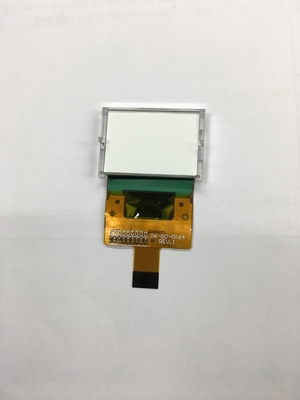

128*64 LCD Module mini size FSTN transflective positive with ST7567 6H
Product Description
Graphic LCD is a liquid crystal display specially used to display graphics and images. Compared with traditional character LCD screens, graphic LCD screens have higher resolution and richer display capabilities, and can display complex graphics, images and animations. Graphic LCD screens usually have higher pixel density and resolution, which can display more details and image information, providing clearer and more accurate graphics display. Graphic LCD screens can support a variety of colors and color depths, from monochrome to full color, allowing graphics and images to be presented in a richer, more vivid way.
| ITEM | SPECIFICATION |
| LCD Type | FSTN |
| Polarzier Mode | Transflective, positive |
| Viewing Direction | 6:00 |
| Drive Method | 1/9Bias,1/65Duty |
| Logic Supply Voltage | 3.0V |
| Outline Dimension | 31.00*25.00*1.70 mm |
| Viewing Area | 28.00*18.00 mm |
| Active Area | 24.94*15.02 mm |
| Wide range of operating temperature | -20 to 70 ºC |
| Wide range of Storage temperature | -30 to 80 ºC |
Applications
It is a LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.
Our Service
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Professional Customized Service: Professional team provide OEM&ODM service.
6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
