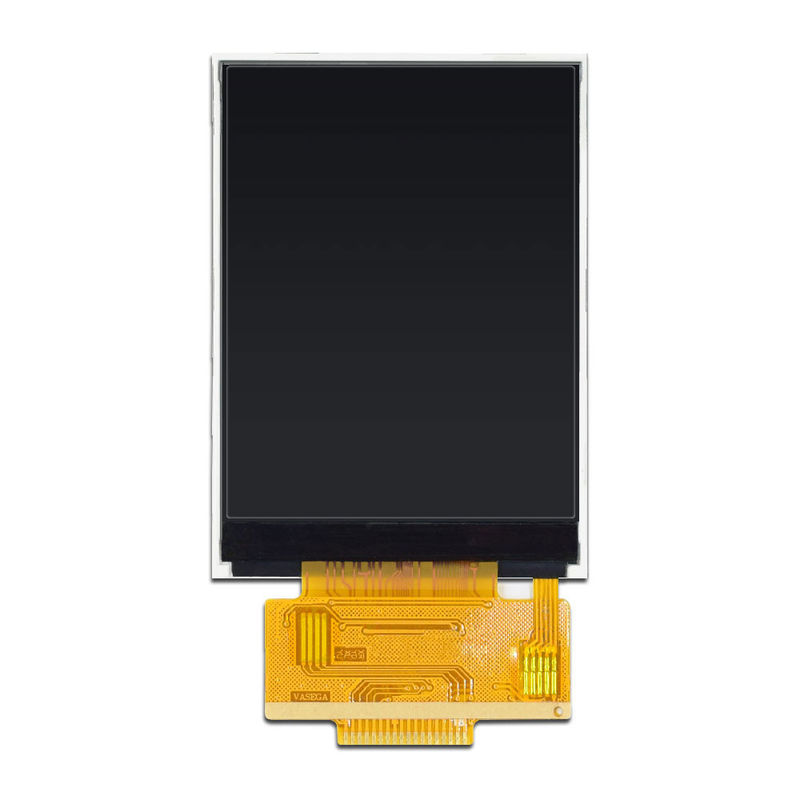

3.5'' 240*320 Wide TFT LCD Module Wide View Mono Transmissive ST7511 IC

3.5'' 240*320 wide TFT LCD Module wide view Mono Transmissive ST7511 IC

Product Description

TFT LCD (Thin Film Transistor) refers to a thin film transistor, that is, each liquid crystal pixel is driven by a thin film transistor integrated behind the pixel, so that it can achieve high speed, high brightness, and high contrast. It is currently very popular. One of the best LCD color display devices. Each pixel of the TFT is controlled by the TFT integrated on itself and is an active pixel. Therefore, not only can the speed be greatly improved, but the contrast and brightness can also be greatly improved, while the resolution has also reached a very high level. The table is our 5'' TFT LCD Display.

Item of general information	Contents
LCD Type	3.5 inch
with/ without TP	without TP
Display Resolution	240*320

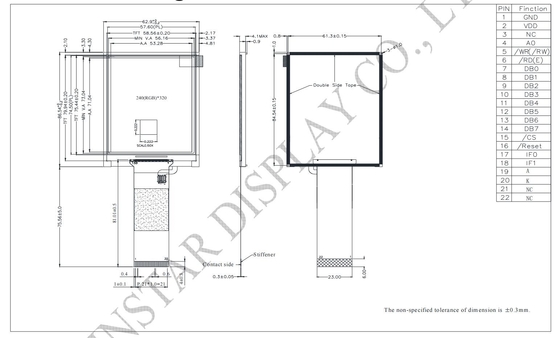

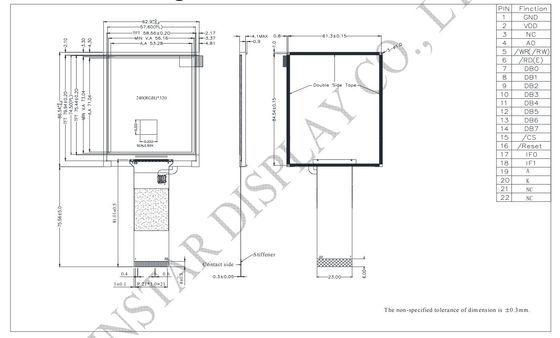

Outline Dimension	62.9* 86.54* 4.1 mm
Active area	53.28* 71.04 mm
Dot pitch	0.222* 0.222 mm
Display Mode	Mono, transmissive
Certificate	CE, RoHS, SGS
Surface	Glare
driver IC	ST7511
Operating Temp	-30º C~+80ºC
Storage Temp	-30º C~+80ºC

Product Features

1. Using high transmittance glass substrate: This LCD screen uses a glass substrate with high light transmittance, which makes the screen clear, bright, distinct, and colorful. At the same time, because it is designed with a low-power driver IC circuit, the whole machine consumes less power. The volume is greatly reduced, thereby reducing the user's cost of use.

2. Ultra-thin body: Small size, thin thickness, light weightand and easy to carry and use.

3. Low energy consumption: It saves power and does not generate high temperatures (the main power consumption and heat generation parts are in the backlight tube or LED)

4. Low radiation: It has low working voltage and low radiation, which is healthier and more comfortable.

5. Soft and comfortable screen: The screen will not flicker, which can reduce the damage to the eyes caused by the display and make the eyes less likely to tire.

6. Uniform brightness: The brightness of this LCD screen is very uniform and it can maintain high definition even under strong outdoor light.


Applications

A 5-inch TFT LCD can be used in various applications that require a small-sized display with color capabilities.
1. Automotive Displays: In automotive systems, 5-inch TFT LCD displays are often used in rearview mirrors with integrated displays, backup cameras, and in-dash infotainment systems.

2. Point-of-Sale (POS) Systems: In retail and hospitality environments, 5-inch TFT LCD displays can be found in portable or handheld POS systems. These displays enable the presentation of transaction details, menu options, pricing information, and customer interactions.

3. Portable Gaming Devices: Handheld gaming consoles or portable gaming devices often employ 5-inch TFT LCD displays. These displays can show game graphics, characters, menus, and other gaming-related content.

4. Digital Cameras: Some compact digital cameras utilize 5-inch TFT LCD displays as the main screen for framing and reviewing photos. The display can show captured images, camera settings, and menus.

5. IoT Devices: Internet of Things (IoT) devices such as small sensors or connected devices may utilize 5-inch TFT LCD displays to provide a basic user interface for configuration, status updates, or simple interactions.

6. Portable Media Players: 5-inch TFT LCD displays are commonly used in portable multimedia devices such as portable media players, handheld gaming consoles, and portable DVD players.

7. Wearable Devices: Some wearable devices like fitness trackers, heart rate monitors, or activity trackers may incorporate a 5-inch TFT LCD display to show fitness data, health metrics, and user interface elements.

8. Measurement Instruments: Small measurement instruments or handheld meters may integrate a 5-inch TFT LCD display to show measurements, readings, graphs, and other data.

9. Industrial Control Panels: In industrial settings, 5-inch TFT LCD displays can be used in control panels or human-machine interfaces (HMIs) to show real-time data, status indicators, and control options.

10. DIY Electronics Projects: Hobbyists and makers can incorporate 5-inch TFT LCD displays into their DIY electronics projects, such as small electronic gadgets, prototyping, or customized user interfaces.

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe.
Small sizes products: tray + carton
Big sizes: slot + carton.
We can design packages to meet customers' requirements.

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service.
For large quantity orders: we ship by buyer's cargo agent in China.
We can ship by air or sea transportation by our cargo agent.

Delivery Time: Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks

FAQs

1. Can you provide some samples?
-Yes, we can offer samples for you and you just pay some delivery fee.

2. How can I get samples?
- Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect

3. How can I place an order?
- If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We will talk about more detailed information of your order. Any question, pls do not hestiate to contact us.

4. Can you design the lcd in acccordance with our demand?
-Sure, we have professional team to provide ODM&OEM service and any requirements, pls do not hestiate to tell me.

5. What is your payment method?
- We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amo
