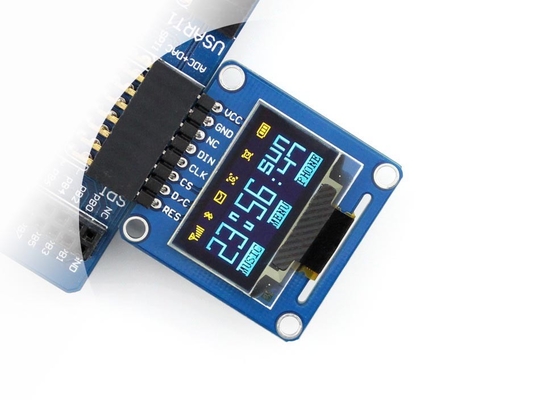

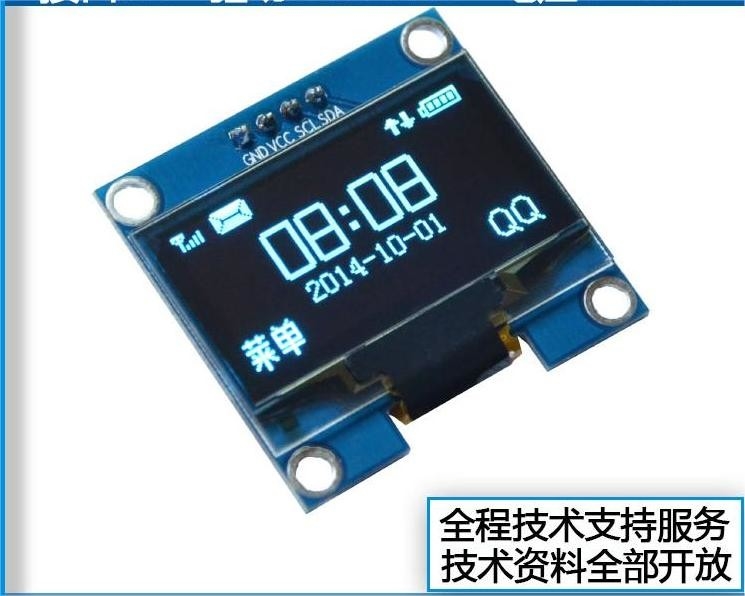

1.29'' 1.3'' OLED LCD Module 128*64 Monochrome Blue Wide Temperature Free View

1.29'' 1.3'' OLED LCD Module 128*64 Monochrome blue wide temperature free view

Product Description

One advantage of OLED displays is that each pixel emits its own light, allowing for precise control over individual pixels. When displaying predominantly dark content or black backgrounds, OLED pixels can be turned off, resulting in minimal power consumption for those pixels. This technology allows for each pixel to emit its own light, resulting in high contrast, deep blacks, and vibrant colors. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.

ITEM	SPECIFICATION	UNIT
Display Color	Monochrome/blue	-
Size	1.3''	-

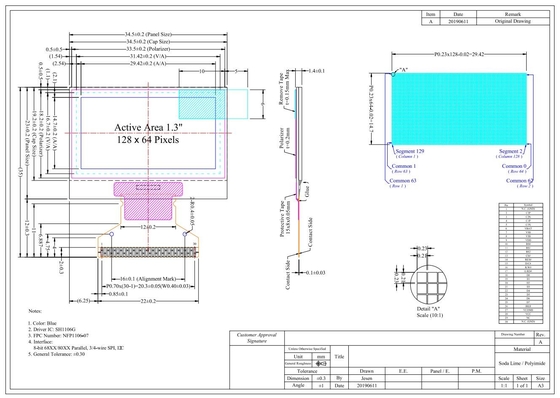

Outline dimension	34.5*23.0*1.4 mm	mm
Number of pixels	128*64	pixels
Active area	29.42* 14.7 mm	mm
Diagonal size	1.91	inch
Pixel pitch	0.23*0.23 mm	μm
Drive duty	1/16	mm
Weight	2.18 g	G(TYP)
Pixel size	0.21*0.21 mm	-
Interface	Parallel/I2C/ 4-wire SPI	-
Wide range of operating temperature	40 to 85	ºC
Wide range of Storage temperature	-40 to 85	ºC

Product Features

OLED is an advanced display technology. Unlike traditional LCD screens, it does not require a backlight, but each pixel can emit light on its own. This self-luminous property gives OLED screens many advantages and a wide range of application scenarios.

1. High contrast: Each pixel can emit its own light, so OLED screens can achieve very high contrast, making the picture more vivid and clear.
2. Wide viewing angle: The self-illuminating properties of the OLED screen allow it to have a wider viewing angle range, maintaining a better display effect no matter which angle the screen is viewed from.
3. Thin and lightweight: Since it does not require a backlight, the structure of the OLED screen is simpler, making the screen thinner and lighter, and suitable for various thin and light devices.
4. Energy saving and environmental protection: The OLED screen only lights up the pixels when displaying content, while other areas are turned off, so the energy saving effect is significant and is conducive to environmental protection.
5. High refresh rate: The OLED screen has a fast response speed and can achieve a high refresh rate, which is better for playing videos, animations and other content.
6. Display transparency: OLED screens can be made into transparent displays and used in smart glass, transparent billboards and other scenes to create unique visual effects.
