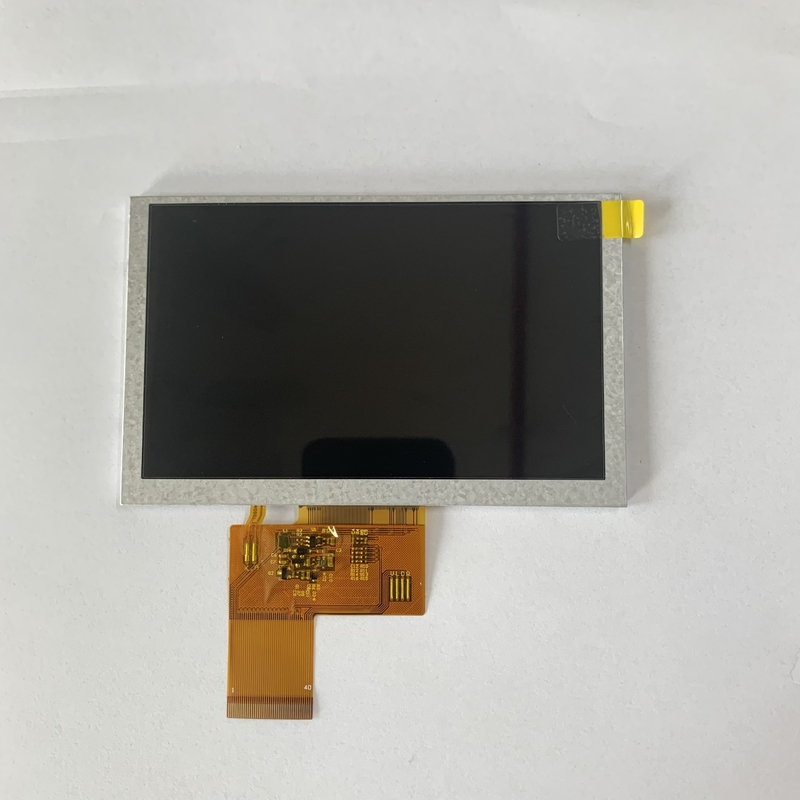

5'' TFT LCD Module 800*480 RGB 2.8 to 3.3V Cost Effective Customizable display

Tft Lcd Module 5.0'' Tft Lcd Display 800*480dots With Touch Panel Lcd Monitor

Product Description

TFT LCD (Thin Film Transistor) refers to a thin film transistor, that is, each liquid crystal pixel is driven by a thin film transistor integrated behind the pixel, so that it can achieve high speed, high brightness, and high contrast. It is currently very popular. One of the best LCD color display devices. Each pixel of the TFT is controlled by the TFT integrated on itself and is an active pixel. Therefore, not only can the speed be greatly improved, but the contrast and brightness can also be greatly improved, while the resolution has also reached a very high level. The table is our 5'' TFT LCD Display.

Item of general information	Contents
LCD Type	5 inch(Diagonal)
Recommended Viewing Direction	12 o'clock
Display Resolution	800 RGB x 480
Outline Dimension	140.70*93.83*4.55 mm
Display Mode	Normally white/Transmissive
Pixel arrangement	RGB Vertical stripe
Certificate	CE, RoHS, SGS
Driver IC	ILI6122+ILI5960
Connector	FPC
Operating Temp	-20º C~+70ºC
Storage Temp	-30º C~+80ºC

Application

FAQ

Q: Can you customize the product? what do you need?

A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.

Q: Can you provide drawings and related procedures?

A: We can provide drawings and procedures for customers to confirm.

Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.

Q: How long is the warranty and service of the product?

A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.

Product Features

1. Using high transmittance glass substrate: This LCD screen uses a glass substrate with high light transmittance, which makes the screen clear, bright, distinct, and colorful. At the same time, because it is designed with a low-power driver IC circuit, the whole machine consumes less power. The volume is greatly reduced, thereby reducing the user's cost of use.

2. Ultra-thin body: Small size, thin thickness, light weightand and easy to carry and use.

3. Low energy consumption: It saves power and does not generate high temperatures (the main power consumption and heat generation parts are in the backlight tube or LED)

4. Low radiation: It has low working voltage and low radiation, which is healthier and more comfortable.

5. Soft and comfortable screen: The screen will not flicker, which can reduce the damage to the eyes caused by the display and make the eyes less likely to tire.

6. Uniform brightness: The brightness of this LCD screen is very uniform and it can maintain high definition even under strong out
