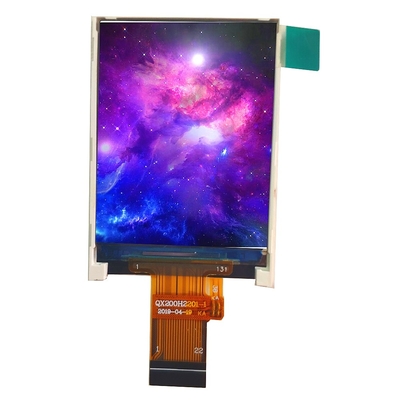

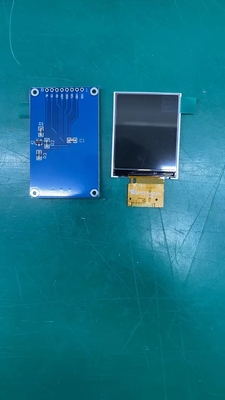

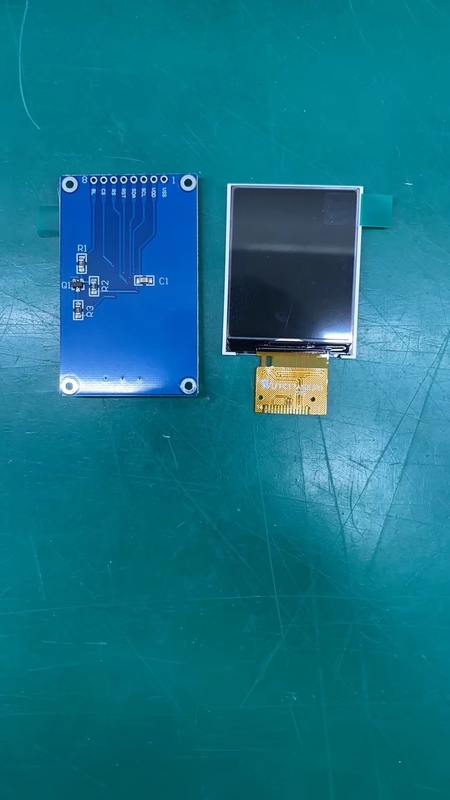

1.77'' 1.8'' TFT LCD Module 128*160 RGB with ST7735 4 line SPI interface 65k

1.77'' 1.8'' TFT LCD Module 128*160 RGB with ST7735 4 line SPI interface 65k

Product Description

• Size: The display size is 1.77 inches diagonally, which refers to the length of the visible screen area.
• Resolution: The module has a resolution of 128 pixels in width and 160 pixels in height. This means it can display 128 columns and 160 rows of pixels.
• Color Depth: The module supports a color depth of 65,536 colors (commonly referred to as 65k colors or 16-bit color). This allows for a wide range of colors to be displayed on the screen.
• Interface: The module uses the ST7735 controller and has a 4-line SPI (Serial Peripheral Interface) interface. SPI is a commonly used communication protocol for connecting peripheral devices to microcontrollers or other devices.
• RGB: The module supports RGB (Red-Green-Blue) color representation, which means it can display a wide range of colors by combining different intensities of these three primary colors.

ITEM	SPECIFICATION
Number of dots	128(RGB) * 160
LCD Type	TFT
Active Area	28.032*35.04 mm
operating voltage	3.3v
general tolerance	±0.2 mm
Driver IC	ST7735
Interface Type	4Line_SPI
Wide range of operating temperature	-20 to +70 ºC
Wide range of Storage temperature	-30 to +80 ºC

Application

Overall, this TFT LCD module is suitable for applications requiring a small, color display with moderate resolution. It can be used in various devices, such as handheld devices, embedded systems, or small information displays. The ST7735 controller and SPI interface make it relatively easy to integrate into different hardware platforms.


FAQ

Q: Can you customize the product? what do you need?

A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.

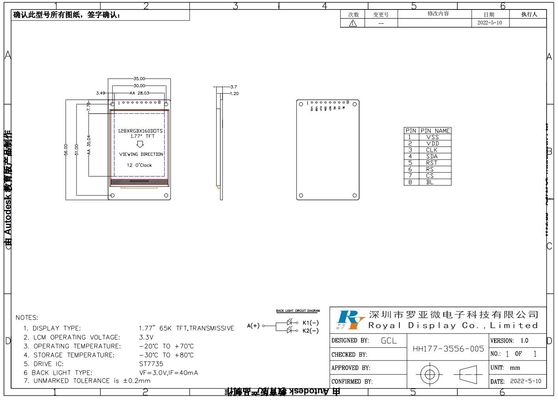

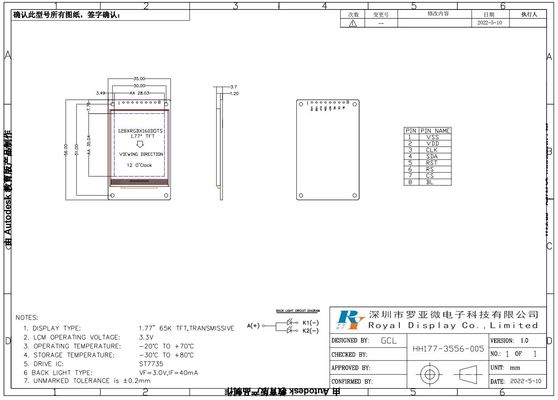

Q: Can you provide drawings and related procedures?

A: We can provide drawings and procedures for customers to confirm.

Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.

Q: How long is the warranty and service of the product?

A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.

Our Service

1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.

2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.

3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.

4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5. Professional Customized Service: Professional team provide OEM&ODM service.

6. Competitive Price: Give you a direct factory price.

7. Better After-sales Service: Long for one year warranty.
