| Dot Matrix: | 100*16 Dots | Module Dimension: | 80.0 X 36.0 X 10.0(Max) Mm |
|---|---|---|---|
| View Area: | 66.0 X 16.0 Mm | Active Area: | 59.95 X 11.15 Mm |
| DOT Size: | 0.55 X 0.65 Mm | DOT Pitch: | 0.60 X 0.70 Mm |
| High Light: | 100*16 Dots Monochrome OLED Module,2.4'' Monochrome OLED Module,WEG010016A |
||

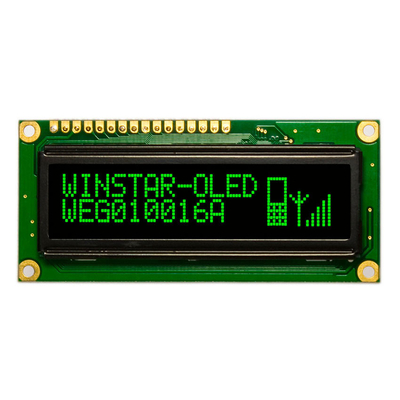

Graphic OLED modules find applications in a wide range of industries and products, including consumer electronics, wearable devices, industrial control panels, medical devices, instrumentation, automotive displays, and more. They offer high-quality graphics and versatile display capabilities for various user interfaces and visual output needs.2.4'' 100*16 dots OLED Module monochrome Winstar wide temperature range display WEG010016A
Product Description
Here are some key characteristics and features of graphic OLED modules:
Display Resolution: Graphic OLED modules come in various resolutions, such as 128x64, 128x32, 96x64, or others. The resolution determines the number of pixels available for displaying graphics and text, and higher resolutions generally offer more detailed and sharper image quality.
Display Size: The size of the OLED display varies depending on the specific module model. Graphic OLED modules are available in different sizes, ranging from small displays (e.g., 0.49 inches) to larger displays (e.g., 5 inches or more diagonally).
Colors: Graphic OLED modules typically support monochrome or full-color displays. Monochrome OLED modules emit light in a single color, such as white, yellow, or blue, while full-color OLED modules can display a wide range of colors.
Interface: Graphic OLED modules usually feature standard interfaces like SPI (Serial Peripheral Interface) or I2C (Inter-Integrated Circuit) for communication with microcontrollers or other control systems. This allows for easy integration and control of the module.
Low Power Consumption: OLED technology is known for its low power consumption compared to other display technologies like LCD. This makes graphic OLED modules energy-efficient, which is beneficial for portable devices or applications with power constraints.
Wide Viewing Angle: OLED displays offer wide viewing angles, ensuring good visibility from different orientations. This makes graphic OLED modules suitable for applications where the display may be viewed from various angles.
| ITEM | SPECIFICATION |
| Pixels | 100*16 |
| LCD Type | OLED, monochrome |
| Active Area | 2.4 inch |
| OLED interface | 6800,option 8080, ,SPI |
| Duty | 1/16 |
| IC | WS0010-TX |
| Wide range of operating temperature | -40 to +80 ºC |
| Wide range of Storage temperature | -40 to +85 ºC |
Applications
Graphic OLED modules find applications in a wide range of industries and products, including consumer electronics, wearable devices, industrial control panels, medical devices, instrumentation, automotive displays, and more. They offer high-quality graphics and versatile display capabilities for various user interfaces and visual output needs.
Our Service
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Professional Customized Service: Professional team provide OEM&ODM service.
6. Competitive Price: Give you a direct factory price.
