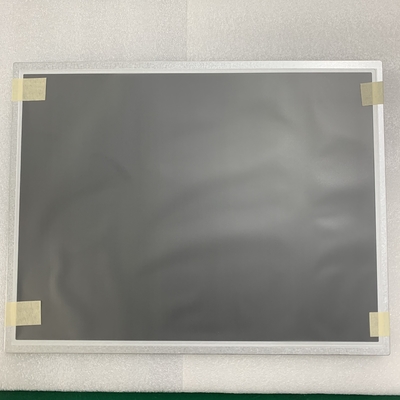

Innolux 21.5 Inch G215HCJ-L02 TFT LCD Module 1920*RGB*1080 Black 5.0V Display

INNOLUX 21.5 inch G215HCJ-L02 TFT LCD Module 1920*RGB*1080 black 5.0V display


Product Description

The G070Y2-L01 is a specific model of a TFT LCD (Thin-Film Transistor Liquid Crystal Display) panel manufactured by Innolux. Here are some features and specifications of the G070Y2-L01:

Size: The G070Y2-L01 has a display size of 7.0 inches, measured diagonally. This compact size makes it suitable for various applications that require a smaller display.

Resolution: The display resolution of the G070Y2-L01 is typically specified as 800x480 pixels. This resolution provides a good balance between clarity and readability for a screen of this size.

Aspect Ratio: The G070Y2-L01 has an aspect ratio of 15:9, which is slightly wider than the standard 16:9 widescreen aspect ratio. This aspect ratio is commonly used in smaller displays and provides a wider field of view.

TFT Technology: The G070Y2-L01 utilizes TFT technology, which consists of thin-film transistors placed at each pixel on the display. This technology enables precise control over individual pixels, resulting in high-quality images and fast response times.

Backlighting: The G070Y2-L01 typically features an LED (Light Emitting Diode) backlight, providing bright and uniform illumination across the display. LED backlights are known for their energy efficiency and longer lifespan compared to traditional CCFL (Cold Cathode Fluorescent Lamp) backlights.

Viewing Angle: The G070Y2-L01 offers a wide viewing angle, allowing users to view the screen clearly from different positions and angles without significant color or contrast distortion. This is especially important for handheld and portable devices where the screen might be viewed from various angles.

Interface: The specific interface used by the G070Y2-L01 panel may vary, but common interfaces include LVDS (Low-Voltage Differential Signaling) or MIPI (Mobile Industry Processor Interface). These interfaces facilitate communication between the display and the host device, such as a tablet or embedded system controller.The G215HCJ-L02 is a model of TFT LCD (Thin-Film Transistor Liquid Crystal Display) panel manufactured by Innolux Corporation. TFT LCDs are a type of display technology commonly used in devices such as computer monitors, televisions, and mobile devices.

The G215HCJ-L02 TFT LCD panel has a screen size of 21.5 inches and features a Full HD (1920 x 1080 pixels) resolution. It incorporates thin-film transistors, which are responsible for controlling the individual pixels on the display. This active matrix technology enables faster pixel response times, improved image quality, and higher refresh rates compared to passive matrix displays.

TFT LCD panels like the G215HCJ-L02 offer benefits such as high brightness, wide color gamut, and excellent contrast ratios. They are widely used in applications that require high-quality visuals and fast screen refresh rates, including computer monitors, televisions, digital signage, and industrial displays.

As always, it's recommended to refer to the manufacturer's official documentation or contact them directly for the most accurate and up-to-date information regarding specific product specifications and details.

Item	STANDARD Value
LCD size	21.5 inch(Diagonal)
Driver element	a-Si TFT active matrix
Resolution	1920 RGB*1080
Display mode	Normally black
Pixel pitch	0.24795 (H) x 0.24795 (V) mm
Color Gamut	72% of NTSC(Typ.)

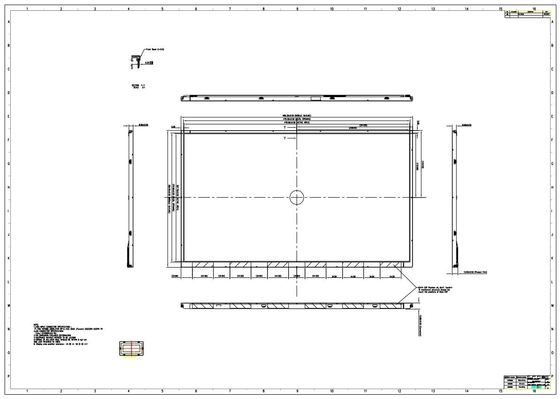

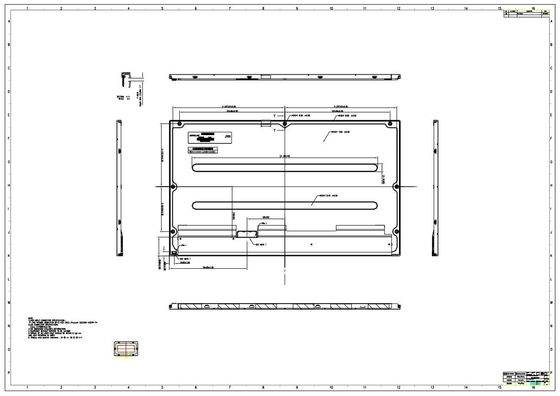

Module size	488.8 *286.95 *13.22 mm typ
Surface treatment	AG type, 3H hard coating, Haze 25
Color arrangement	RGB-stripe
Weight	1900g (Typ.)
Top & Tst	0˚C ~ +60˚C &-20˚C-~+60˚C

Applications

TFT LCD panels, including the G215HCJ-L02, are used in a wide range of applications across various industries. Here are some common applications where TFT LCD panels are commonly used:

Computer Monitors: TFT LCD panels are widely used in computer monitors for both personal and professional use. They offer high-resolution displays with sharp and vibrant visuals, making them suitable for tasks such as gaming, graphic design, video editing, and general computing.

Televisions: TFT LCD panels are commonly found in flat-screen televisions, providing high-definition and ultra-high-definition displays. They offer large screen sizes, excellent color reproduction, and wide viewing angles, making them ideal for home entertainment systems.

Mobile Devices: TFT LCD panels are used in smartphones, tablets, and other mobile devices. They provide touch-sensitive displays with crisp and vibrant visuals, enabling users to interact with the device through gestures and touch input.

Digital Signage: TFT LCD panels are extensively used in digital signage applications for advertising and information display purposes. They offer bright and high-contrast displays that can be easily seen in various lighting conditions, making them suitable for public spaces, retail environments, transportation hubs, and more.

Industrial Displays: TFT LCD panels are utilized in industrial applications such as control panels, HMI (Human-Machine Interface) systems, and ruggedized displays. They offer durability, wide temperature ranges, and resistance to environmental factors, making them suitable for demanding industrial environments.

Medical Imaging: TFT LCD panels are used in medical devices and equipment, including ultrasound machines, patient monitors, and diagnostic displays. They provide high-resolution and accurate color reproduction, enabling healthcare professionals to view medical images with precision.

Automotive Displays: TFT LCD panels are increasingly being used in automotive applications, including infotainment systems, instrument clusters, and heads-up displays. They offer visually appealing and interactive interfaces for driver information, entertainment, and navigation purposes.



​

Our Advantages

1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.

​

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
​

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.

Delivery Time:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks
​

FAQ

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
