Product Description

The G104V1-T03 is a specific model of a TFT LCD (Thin-Film Transistor Liquid Crystal Display) panel manufactured by Innolux. Here are some features and specifications of the G104V1-T03:

Size: The G104V1-T03 has a display size of 10.4 inches, measured diagonally. This makes it suitable for applications that require a compact yet readable display.

Resolution: The display resolution of the G104V1-T03 is typically specified as 800x600 pixels. This resolution provides a good balance between clarity and readability for a screen of this size.

Aspect Ratio: The G104V1-T03 has an aspect ratio of 4:3, which is the traditional aspect ratio used in older displays. This aspect ratio is suitable for applications that require a more square-shaped display.

TFT Technology: The G104V1-T03 utilizes TFT technology, which incorporates thin-film transistors for each pixel on the display. This technology enables precise control over individual pixels, resulting in high-quality images and fast response times.

Backlighting: The G104V1-T03 typically features an LED (Light Emitting Diode) backlight, providing bright and uniform illumination across the display. LED backlights are known for their energy efficiency and longer lifespan compared to traditional CCFL (Cold Cathode Fluorescent Lamp) backlights.

Viewing Angle: The G104V1-T03 offers a wide viewing angle, allowing users to view the screen clearly from different positions and angles without significant color or contrast distortion. This is important for applications where multiple people may need to view the display simultaneously.

Interface: The specific interface used by the G104V1-T03 panel may vary, but common interfaces include LVDS (Low-Voltage Differential Signaling) or VGA (Video Graphics Array). These interfaces facilitate communication between the display and the host device, such as a computer or industrial controller.

Item	STANDARD Value
LCD size	10.4 inch(Diagonal)
Driver element	a-Si TFT active matrix
Resolution	640 x R.G.B. x 480
Display mode	Normally black, Transmissive
Pixel Pitch	0.33(H) x 0.33(V) mm

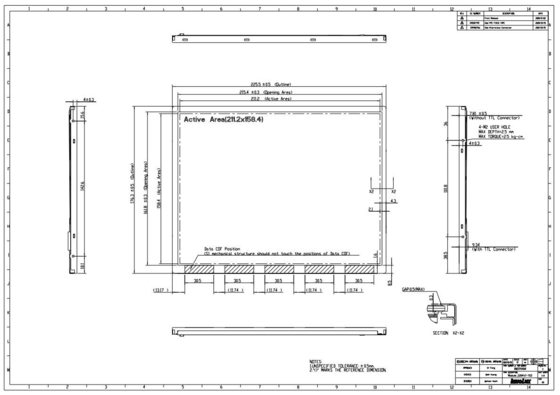

Active area	211.2(H) x 158.4(V) mm
Bezel Opening Area	215.4(H) x 161.8(V) mm
Pixel Arrangement	RGB vertical Stripe
Display Colors	262,144
Interface	Digital (TTL)
Panel power consumption	7.38 w
Surface Treatment	Hard Coating (3H), Anti-Glare ( Haze 25)
Top & Tst	-20˚C ~ +65˚C &-25˚C-~+70˚C

​​


Applications

The G104V1-T03 can be used in various applications, including:

Industrial Control Systems: The 10.4-inch size and resolution of the G104V1-T03 make it suitable for use in industrial control systems, HMI (Human-Machine Interface) panels, and automation equipment.

Medical Devices: The G104V1-T03 can be utilized in medical devices such as medical monitors, diagnostic equipment, and patient monitoring systems.

Point-of-Sale (POS) Systems: The G104V1-T03 can be integrated into POS systems, providing a compact and readable display for retail and hospitality applications.

Gaming Machines: The G104V1-T03 can be used in gaming machines, arcade systems, and casino gaming devices that require a compact display with good image quality.

Transportation Displays: The G104V1-T03 can be employed in transportation applications such as on-board displays in buses, trains, and other vehicles for passenger information and entertainment.

Please note that while these are some common applications, the G104V1-T03 can be used in various other devices and industries where a 10.4-inch TFT LCD display is required.

​

Our Advantages

1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.

​

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
​

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.

Delivery Time:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks
​

FAQ

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
