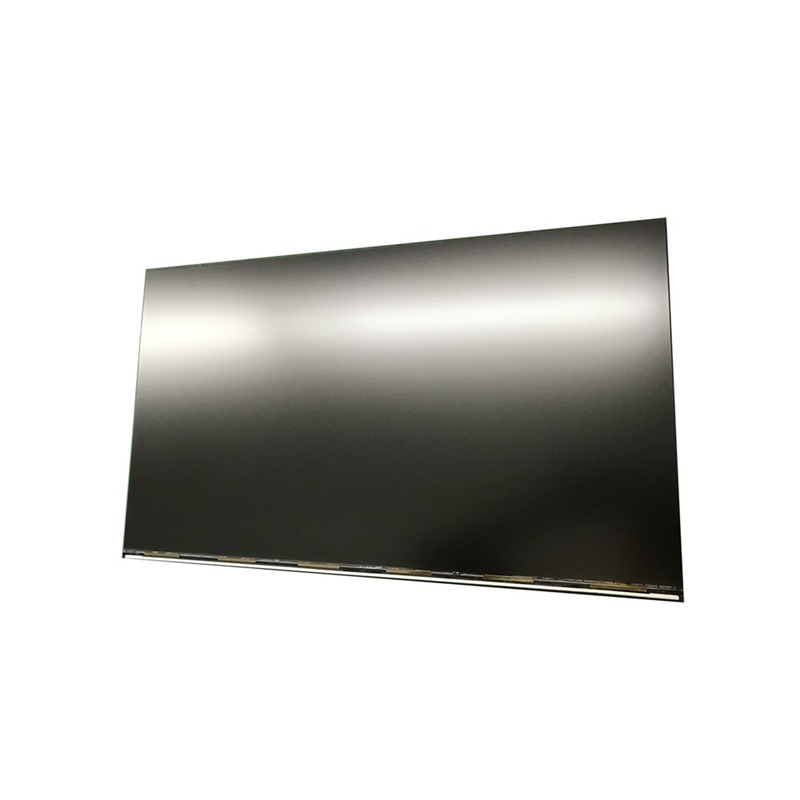

23.8 Inch Innolux TFT LCD Module R238hca-L3b 1920*1080 Full HD 16.7m Display

23.8 inch INNOLUX TFT LCD module R238HCA-L3B 1920*1080 Full HD 16.7M colors display



Product Description

The R238HCA-L3B is a specific model of a TFT LCD panel manufactured by Innolux. Here are some features and specifications of the R238HCA-L3B:

Size: The R238HCA-L3B has a display size of 23.8 inches, measured diagonally. This provides a relatively large viewing area for displaying content.

Resolution: The display resolution of the R238HCA-L3B is typically specified as 1920x1080 pixels, which is commonly known as Full HD or 1080p resolution. This resolution offers a high level of detail and clarity for images, videos, and text.

Aspect Ratio: The R238HCA-L3B has an aspect ratio of 16:9, which is the standard widescreen aspect ratio used in most displays. This aspect ratio is suitable for multimedia content and provides a wider field of view.

TFT Technology: The R238HCA-L3B utilizes TFT technology, which incorporates thin-film transistors for each pixel on the display. This technology enables precise control and fast switching of individual pixels, resulting in improved image quality and response time.

Backlighting: The R238HCA-L3B features LED (Light Emitting Diode) backlighting, providing bright and uniform illumination across the display. LED backlights are energy-efficient and offer a longer lifespan compared to traditional CCFL (Cold Cathode Fluorescent Lamp) backlights.

Viewing Angle: The R238HCA-L3B typically offers a wide viewing angle, allowing users to view the screen clearly from various positions without significant color or contrast distortion. This ensures a good viewing experience even when looking at the display from different angles.

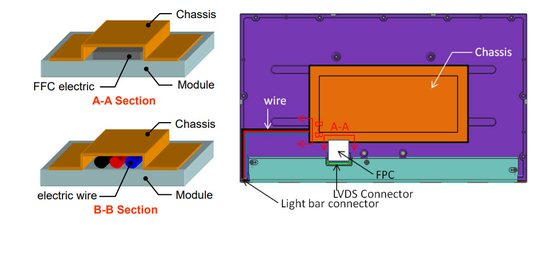

Interface: The specific interface used by the R238HCA-L3B panel may vary, but common interfaces include LVDS (Low-Voltage Differential Signaling) or eDP (Embedded DisplayPort). These interfaces facilitate communication between the display and the host device, such as a computer or monitor controller.

It's important to note that while these are the general features and specifications of the R238HCA-L3B, there may be additional details or variations specific to the production batch or customization options. For more detailed information, it's best to refer to the product datasheet or contact Innolux directly..

Item	STANDARD Value
LCD size	23.8 inch real diagonal
Driver element	a-Si TFT active matrix
Resolution	1920 x RGB x 1080
Display mode	Normally Black
Pixel Pitch	0.2745 (H) x 0.2745 (V) mm
Pixel Arrangement	RGB vertical Stripe
Display Colors	16.7M
Color Gamut	72 % of NTSC(Typ.)
Luminance, White	450(Typ.) adjustable
Surface Treatment	AG type, 3H hard coating,
Top & Tst	0˚C ~ +50˚C &-20˚C-~+60˚C

​​


Applications

The R238HCA-L3B TFT LCD panel by Innolux has various applications across different industries. Some common applications of this display include:

Computer Monitors: The R238HCA-L3B can be used as a display panel for computer monitors. Its 23.8-inch size and Full HD resolution make it suitable for providing a clear and detailed view of content, including documents, videos, and images.

All-in-One PCs: The R238HCA-L3B can be integrated into all-in-one PCs, which combine the computer components and display into a single unit. Its large size and high resolution make it ideal for multimedia tasks, gaming, and productivity on all-in-one systems.

Digital Signage: The R238HCA-L3B can be employed in digital signage applications, where it can display dynamic content and advertisements in public spaces, retail stores, airports, and other commercial environments. Its size and resolution allow for effective communication of information and eye-catching visuals.

Multimedia Displays: The R238HCA-L3B can be used in multimedia devices such as media players, digital photo frames, and home entertainment systems. Its high-resolution capabilities enable the display of videos, images, and other multimedia content with clarity and detail.

Gaming Monitors: The R238HCA-L3B can be utilized as a display panel for gaming monitors. Its size and resolution are suitable for gaming enthusiasts who require immersive visuals and fast response times for an enhanced gaming experience.

Professional Displays: The R238HCA-L3B can be integrated into professional displays used in various industries, including graphic design, photography, video editing, and content creation. Its high resolution and color accuracy make it suitable for tasks that require precise and detailed visuals.

Medical Displays: The R238HCA-L3B can be utilized in medical imaging displays and diagnostic equipment. Its high-resolution capabilities allow for the accurate visualization of medical data and images, making it useful in healthcare settings.

It's important to note that while these are some common applications, the R238HCA-L3B can be used in various other devices and industries where a 23.8-inch TFT LCD display is required. The versatility of the panel makes it suitable for both consumer and professional applications.

​

Our Advantages

1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.

​

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
​

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.

Delivery Time:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks
​

FAQ

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
