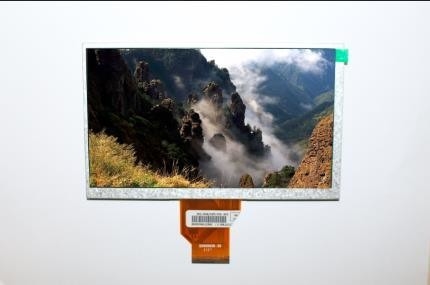

AT080TN52 Innolux 8.0 Inch LCD Module 800*RGB*600 Digital Display Panel

AT080TN52 Innolux 8.0 inch LCD Module 800*RGB*600 digital display panel

Product Description

The AT080TN52 is an 8.0-inch LCD module manufactured by Innolux, a renowned display panel manufacturer. Here are some details about this module:

Size: The AT080TN52 has an 8.0-inch diagonal screen size, measured from one corner to the opposite corner of the display panel.

Resolution: The module has a resolution of 800 x 600 pixels. This means it can display 800 pixels horizontally and 600 pixels vertically, resulting in a total of 480,000 pixels or 480K pixels.

LCD Technology: The AT080TN52 utilizes thin-film transistor (TFT) LCD technology. TFT technology ensures fast response times, vibrant colors, and good image quality.

Interface: The module features a 40-pin LVDS (Low Voltage Differential Signaling) interface for communication with external devices such as microcontrollers or display controllers.

Backlight: It typically incorporates an LED (Light-Emitting Diode) backlight, which provides uniform illumination across the display panel, ensuring good visibility in various lighting conditions.

Applications: The AT080TN52 LCD module can be used in a wide range of applications, including industrial equipment, medical devices, portable instruments, home automation systems, and other applications where an 8.0-inch display with a resolution of 800 x 600 pixels is suitable.

Item	STANDARD Value
LCD size	8 inch(Diagonal)
Driver element	a-Si TFT active matrix
Resolution	800 RGB*600
Display mode	Normally white, transmissive
Pixel pitch	0.0675(W) * 0.2025(H) mm
Active area	162.0(W) * 121.5(H) mm

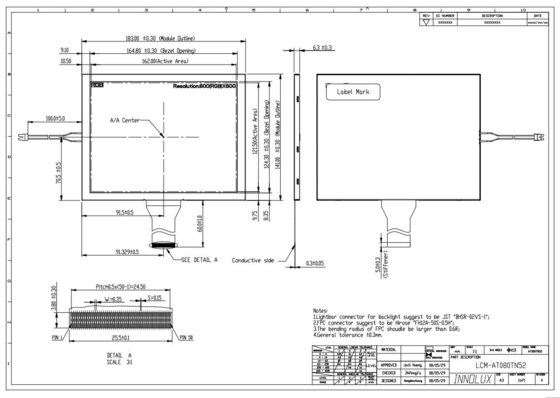

Module size	183.0(W) * 141.0(H) * 6.3(D) mm
Surface treatment	Anti Glare
Color arrangement	RGB-stripe
Interface	Digital
Weight	258g (Typ.)
Top & Tst	-20˚C ~ +70˚C &-30˚C-~+80˚C

​

Applications

The 8-inch TFT INNOLUX LCD display with a resolution of 800RGB600 pixels has various potential applications. Here are some common uses:

Industrial Control Systems: The display can be used in industrial control panels and HMI (Human-Machine Interface) applications. It provides a clear and vibrant interface for controlling and monitoring industrial processes.

Automotive Displays: The display can be integrated into car infotainment systems, providing a visual interface for navigation, entertainment, and vehicle settings.

Portable Devices: The compact size of the display makes it suitable for portable devices such as handheld gaming consoles, portable DVD players, and multimedia players.

Medical Equipment: The high-resolution display can be used in medical devices like patient monitors, ultrasound machines, and portable diagnostic devices, where accurate and detailed visual representation is critical.

Home Automation Systems: The display can be utilized in home automation systems, serving as a control panel for managing smart home devices, security systems, and energy consumption.

POS (Point of Sale) Systems: The display can be integrated into point of sale terminals used in retail and hospitality environments, providing a user-friendly interface for processing transactions and managing inventory.

Consumer Electronics: The display can be used in various consumer electronics products such as tablets, digital cameras, portable media players, and smart home hubs.

These are just a few examples, and the actual applications can vary depending on the specific requirements and industry. The 8-inch TFT INNOLUX LCD display with 800RGB600 resolution offers a decent viewing experience and can be customized and integrated into different devices and systems.

​

Our Advantages

1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.

​

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
​

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.

Delivery Time:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks
​

FAQ

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
