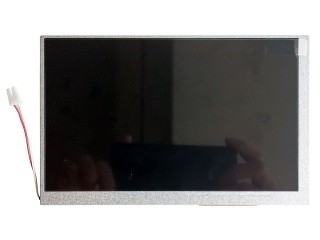

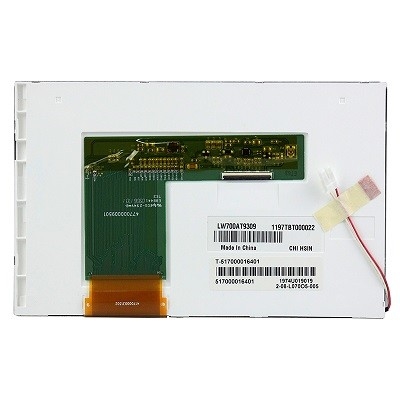

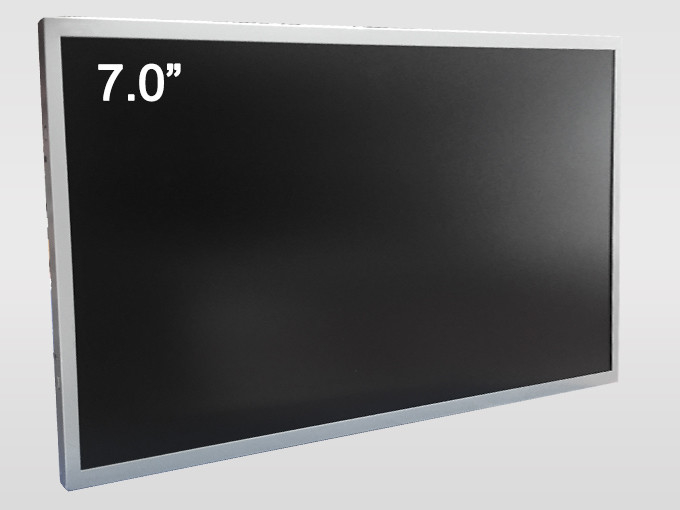

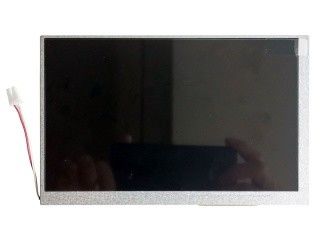

7 Inch TFT INNOLUX LCD Display 800*RGB*480 WVGA 40 PIN TTL Interface

7 inch TFT INNOLUX LCD display 800*RGB*480 WVGA 40 PIN TTL interface


Product Description

The 7-inch color screen is a larger size LCD with a larger display area and higher resolution. It uses TFT (Thin Film Transistor) liquid crystal technology, which has a high refresh rate and color performance capabilities. The TFT color screen can achieve fast response and more realistic color display. They are capable of displaying thousands of colors or millions of colors, providing richer and truer color representation. It has a large viewing angle range, allowing it to maintain a good display effect when viewed from different angles. In terms of brightness, color screens usually have adjustable backlight brightness to adapt to different environmental conditions and user needs. Here is the data of our 7inch TFT LCD Display.

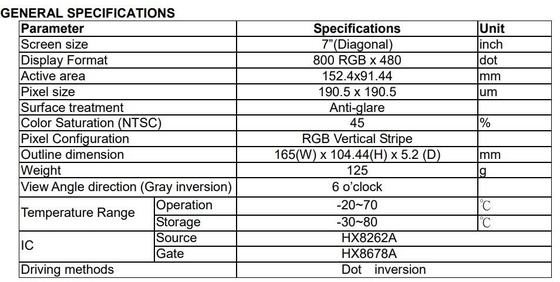

Item	STANDARD Value
LCD size	7 inch(Diagonal)
Driver element	a-Si TFT
Resolution	800 RGB*480
Display mode	Normally white
Pixel size	190.5 x 190.5 mm
Active area	152.4x91.44

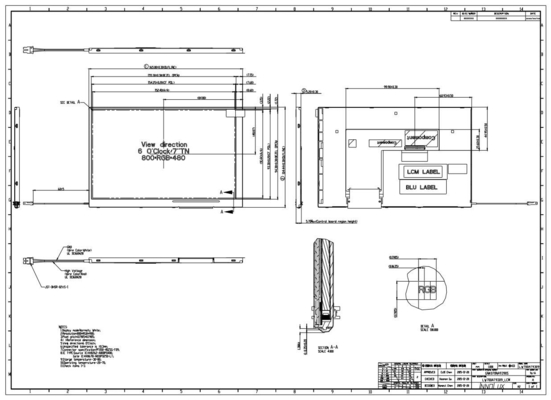

Module size	165(W) x 104.44(H) x 5.2 (D) mm
Surface treatment	Anti Glare
Color arrangement	RGB-stripe
Interface	40-pin TTL
View direction(Gray Inversion)	6 O'Clock
Weight	125g (Typ.)
Top & Tst	-20˚C ~ +70˚C &-30˚C-~+80˚C

​​


Applications

The 7-inch TFT INNOLUX LCD display with a resolution of 800RGB480 pixels has various potential applications. Here are some common uses:

Industrial Control Systems: The display can be used in industrial control panels and HMI (Human-Machine Interface) applications. It provides a clear and vibrant interface for controlling and monitoring industrial processes.

Automotive Displays: The display can be integrated into car infotainment systems, providing a visual interface for navigation, entertainment, and vehicle settings.

Portable Devices: The compact size of the display makes it suitable for portable devices such as handheld gaming consoles, portable DVD players, and multimedia players.

Medical Equipment: The high-resolution display can be used in medical devices like patient monitors, ultrasound machines, and portable diagnostic devices, where accurate and detailed visual representation is critical.

Home Automation Systems: The display can be utilized in home automation systems, serving as a control panel for managing smart home devices, security systems, and energy consumption.

POS (Point of Sale) Systems: The display can be integrated into point of sale terminals used in retail and hospitality environments, providing a user-friendly interface for processing transactions and managing inventory.

Consumer Electronics: The display can be used in various consumer electronics products such as tablets, digital cameras, portable media players, and smart home hubs.

These are just a few examples, and the actual applications can vary depending on the specific requirements and industry. The 7-inch TFT INNOLUX LCD display with 800RGB480 resolution offers a decent viewing experience and can be customized and integrated into different devices and systems.

​

Our Advantages

1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.

​

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
​

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.

Delivery Time:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks
​

FAQ

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
