Product Details:
Payment & Shipping Terms:
|
| Product Type: | TFT LCD | Product Size: | 15 Inch(Diagonal) |
|---|---|---|---|
| Driver Element: | A-Si TFT Active Matrix | Resolution: | 1024 X3(RGB)X 600 |
| Display Mode: | Normally White, Transmissive | Display Colors: | 16,194,277 Color |
| High Light: | 15'' TFT LCD Module,20 Pins LVDS TFT LCD Module |
||

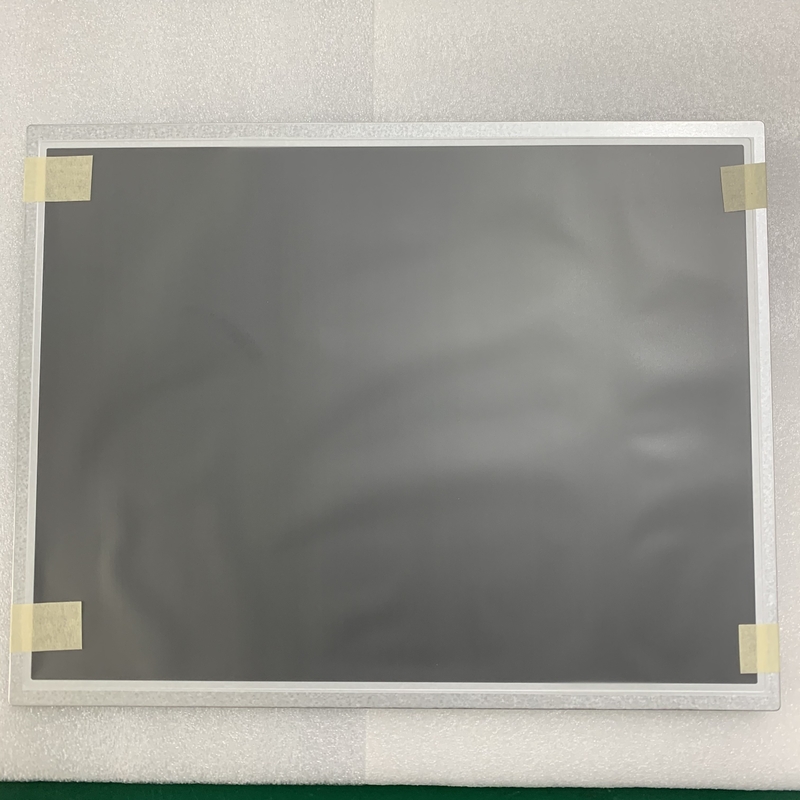

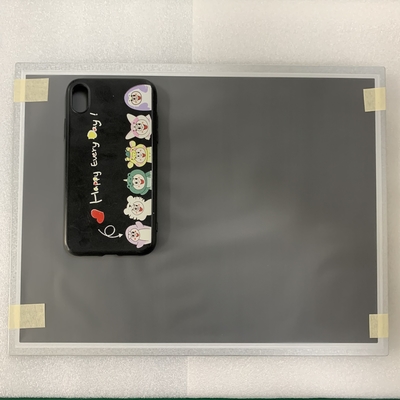

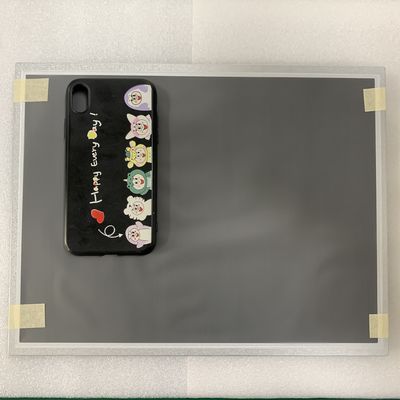

Original Innolux 15'' TFT LCD 20 Pins Lvds Interface with 1024rgbx768 Pixels
Product Description
G150X1-L02 is a 15.0" TFT Liquid Crystal Display module with 2 CCFL Backlight units and 20 pins LVDS interface. This module supports 1024 x 768 XGA mode and can display 16.2M colors. The PSWG is to establish a set of displays with standard mechanical dimensions and select electrical interface requirements for an industry standard 15.0" XGA LCD panel and the inverter module for Backlight is not built in. It uses TFT (Thin Film Transistor) liquid crystal technology, which has a high refresh rate and color performance capabilities. The TFT color screen can achieve fast response and more realistic color display. They are capable of displaying thousands of colors or millions of colors, providing richer and truer color representation. It has a large viewing angle range, allowing it to maintain a good display effect when viewed from different angles. In terms of brightness, color screens usually have adjustable backlight brightness to adapt to different environmental conditions and user needs. Here is the data of the TFT LCD Display.
| Item | STANDARD Value |
| LCD size | 15 inch(Diagonal) |
| Driver element | a-Si TFT active matrix |
| Resolution | 1024 x RGB x 768 |
| Display mode | Normally white, Transmissive |
| Pixel Pitch | 0.297(H) x 0.297(W)mm |
| Active area | 304.128 (H) x 228.096(V) mm |
| Bezel Opening Area | 307.4(H) x 231.3(V) mm |
| Pixel Arrangement | RGB vertical Stripe |
| Display Colors | 16194277color |
| Interface | Digital (TTL) |
| Display Mode | Normally White(Typ) |
| Panel power consumption | 0.226 W (Typ) |
| Surface Treatment | Hard Coating (3H), Anti-Glare ( Haze 25) |
| Top & Tst | -20˚C ~ +70˚C &-30˚C-~+80˚C |
Product Features
Compared with LCD screens of other sizes, the 15-inch TFT LCD screen has some unique features:
1. Save space: The 15-inch LCD screen is a thin and light display screen. It has a small area and can save more space.
2. Good display effect: high resolution, can provide clear and distinct images, and the rendering effect of the image is also great
3. Large viewing angle: It has a good viewing angle and can be viewed from different viewing angles.
4. Simple operation: The operation is simple and does not require complicated settings.
5. Durable and corrosion-resistant: It is made of high-quality materials with high durability, and its surface is also corrosive, which can resist the influence of the external environment, allowing it to work stably for a long time.
Product Applications
The 15-inch color screen is a large-size LCD display with a larger display area and higher resolution, and is suitable for a variety of application scenarios.
1. Tablets and mobile devices: 15-inch color screens are commonly used on tablets and other mobile devices, providing a larger display area and better visibility.
2. Car navigation and entertainment systems: They can be used to display navigation maps, vehicle information, music playback interfaces, rear-view cameras, etc., providing rich navigation and entertainment functions.
3. Industrial control and monitoring systems: The 15-inch color screen is suitable for industrial control and monitoring systems and is used to display equipment status, process parameters, data charts and operating interfaces, etc.
4. Medical equipment and instruments: 15-inch color screens are widely used in medical equipment and instruments, such as medical monitors, ultrasound diagnostic equipment, surgical navigation systems, etc.
5. Hotel and commercial display screens: 15-inch color screens can be used for information displays in hotels and commercial places to display advertisements, guides, event information, menus and other content.
Our Advantages
1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty period is one year.
