Product Details:
Payment & Shipping Terms:
|
| Display Format: | 1.91'' 240RGBx536 | Display Color: | 16.7M (RGB X 8bits) |
|---|---|---|---|
| Ltps Glass Outline: | 22.40X51.32(mm) | Panel Pitch: | 82.5* 82.5 |
| Active Area: | 19.80X44.22 (mm) | Number Of Dots: | 240(W) X RGB X 536(H) |
| High Light: | 1.91'' OLED Display Module,COG OLED Display Module |
||

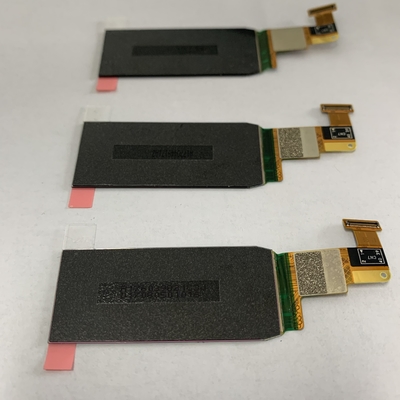

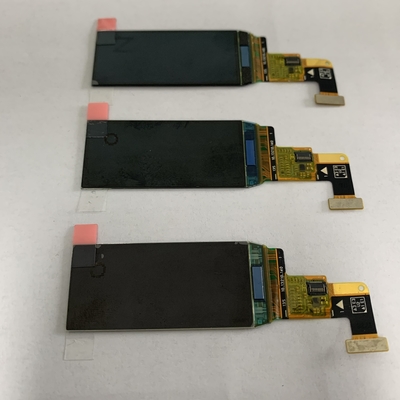

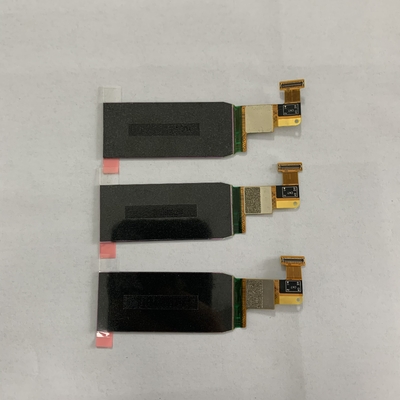

A 1.91'' OLED (Organic Light Emitting Diode) refers to a display panel with a diagonal size of 1.91 inches. OLED display technology is different from traditional LCD display methods. It does not require a backlight and uses very thin organic material coatings and glass substrates (or flexible organic substrates). When current passes through, these organic materials will emit light. Moreover, OLED display screens can be made lighter and thinner, with wider viewing angles, and can significantly save power consumption. The 1.91'' OLED display typically has a small form factor, making it suitable for compact electronic devices such as smartwatches, fitness trackers, and other wearable devices. The resolution of the display can vary, and it has high 240RGBX536 dots resolution.
The data of 1.91inch OELD display module
| Items | Specification | Unit |
| Display Color | 16.7M (RGB x 8bits) | - |
| Display format | 1.91"(240RGBx536) | - |
| LTPS Glass outline | 22.40 x 51.32 | mm |
| Number of dots | 240(W) x RGB x 536(H) | dots |
| Active area | 19.80x44.22 | mm |
| Diagonal size | 1.91 | inch |
| Pixel pitch | 82.5* 82.5 | μm |
| Glass thickness(LTPS/Encap. glass) | 0.3 / 0.2 | mm |
| Weight | 2.16 | G(TYP) |
| Pixel arrangement | Real RGB arrangement | - |
| Interface | MIPI(1Lane) | - |
| Wide range of operating temperature | -30 to 70 | ºC |
| Wide range of Storage temperature | -40 to 85 | ºC |
The outline dimension drawing of 1.91inch OLED Display Module
OLED is an advanced display technology. Unlike traditional LCD screens, it does not require a backlight, but each pixel can emit light on its own. This self-luminous property gives OLED screens many advantages and a wide range of application scenarios.
1. High contrast: Each pixel can emit its own light, so OLED screens can achieve very high contrast, making the picture more vivid and clear.
2. Wide viewing angle: The self-illuminating properties of the OLED screen allow it to have a wider viewing angle range, maintaining a better display effect no matter which angle the screen is viewed from.
3. Thin and lightweight: Since it does not require a backlight, the structure of the OLED screen is simpler, making the screen thinner and lighter, and suitable for various thin and light devices.
4. Energy saving and environmental protection: The OLED screen only lights up the pixels when displaying content, while other areas are turned off, so the energy saving effect is significant and is conducive to environmental protection.
5. High refresh rate: The OLED screen has a fast response speed and can achieve a high refresh rate, which is better for playing videos, animations and other content.
6. Display transparency: OLED screens can be made into transparent displays and used in smart glass, transparent billboards and other scenes to create unique visual effects.
