Product Details:
Payment & Shipping Terms:
|
| LCD Type: | OLED | Diagonal Screen Size: | 1.12inch |
|---|---|---|---|
| Active Area(mm): | 20.135X20.14 | Panel Size(mm): | 25.8X30.1X1.227 |
| Pixel Size(mm): | 0.045X0.19 | Pixel Pitch(mm): | 0.07X0.21 |
| High Light: | 34 FPC Pins OLED LCD Display,1.12'' OLED LCD Display |
||

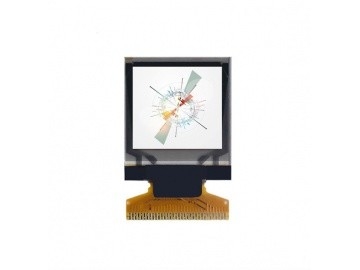

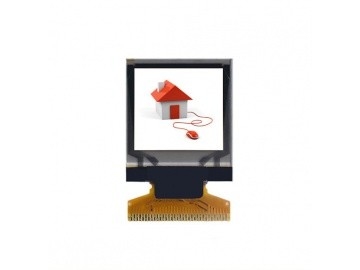

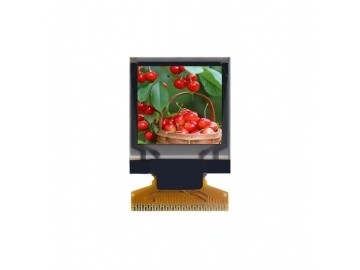

34 FPC Pins 96RGBX96 Pixels Module Full Color 1.12'' OLED LCD Display
Product Description
One advantage of OLED displays is that each pixel emits its own light, allowing for precise control over individual pixels. When displaying predominantly dark content or black backgrounds, OLED pixels can be turned off, resulting in minimal power consumption for those pixels. This technology allows for each pixel to emit its own light, resulting in high contrast, deep blacks, and vibrant colors. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
| ITEM | SPECIFICATION |
| Display Size | 1.12 |
| Number of Pixels | 96RGBX96 |
| Display | OLED |
| Active Area(mm) | 20.135×20.14 |
| Panel Size(mm) | 25.8×30.1×1.227 |
| Pixel pitch(mm) | 0.07×0.21 |
| Pixel Size(mm) | 0.045×0.19 |
| Drive IC | SSD1351 |
| Color | Full color |
| Duty | 1/96 |
| FPC Pins | 34 |
| Requirements On Environmentall Protectio | ROHS |
| Wide range of operating temperature | -40 to 70 |
| Wide range of Storage temperature | -40 to 85 |
Product Applications
A 1.12-inch display, can be used in various applications that require a small-sized, high-quality display. Here are some common applications where a1.12-inch display can be utilized:
| Wearable Devices | smartwatches, fitness trackers,smart glasses |
| Portable Medical Devices | pulse oximeters, glucose meters, portable ECG monitors |
| IoT (Internet of Things) Devices | small sensors, smart home controllers, connected gadgets |
| Handheld Instruments | small handheld instruments,measurement tools |
| Portable Audio/Video Players | pulse oximeters, glucose meters, portable ECG monitors |
| Audio Equipment | MP3 players, digital audio recorders |
| Small-Scale HMI (Human-Machine Interface) | control panels, automation systems, industrial equipment |
| Smart Home Devices | smart thermostats, smart plugs, home automation controllers |
Product Features
(1) Fast response speed
OLED technology has a fast response speed and a response time that can reach the microsecond level.
(2) Low power consumption
OLED does not require a backlight, which is a relatively energy-efficient part of LCD, so OLED is more energy-efficient.
(3) High-resolution display
Most high-resolution OLED displays use an active matrix, also known as AMOLED, whose luminescent layer can absorb 260000 true colors with high resolution.
(4) Wider perspective
OLEDs are actively emitting light, so the image will not display distortion within a large viewing angle range.
(5) Wide temperature characteristics
OLED can operate over a wide temperature range. According to relevant technical analysis, temperatures ranging from -40 ° C to 80 ° C can operate normally.
Customized Services
We have a professional team to provide OEM&ODM services. Even customers do not have a cooperation with us, we also can provide technical services. And we can customize 100% completely the same according to customer's requirement and guarantee to provide our products for sale for a long time and provide complete after-sales service.
1. LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2. Display form: LCD panel/COB/COG/COF
3. Polarizer: Transflective, Transmissive, Reflective
4. Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5. Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6. Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
FAQ
1.What's the MOQ of your product?
-Different MOQ requirements for bulk order.
2. How do you package the product?
-For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
3. How to deal with it if the goods are damaged when arrive?
-Please don't hesitate to contact me immediately, I will verify the damage and contact logistics soon to solve it for you ASAP.
4. What about the delivery time?
-For standard product,1 week for samples,4 weeks for bulk order; and for customization,3-4 weeks for samples,4 weeks for mass production after sample confirmation.
5. Is there any warranty for your products?
-Yes,we offer 12-month warranty for unartificial defect.
