Product Details:
Payment & Shipping Terms:
|
| Product Type: | TFT LCD | Product Size: | 7inch |
|---|---|---|---|
| Outline Dimension: | 165.30X121.00X7.75mm | Display Area: | 154.08X85.92mm |
| Pixel Pitch: | 0.1926X0.179(V) | Resolution: | 1024RGB×600 |
| High Light: | 7'' TFT LCD,1024x600 Pixels HDMI Touch Display |
||

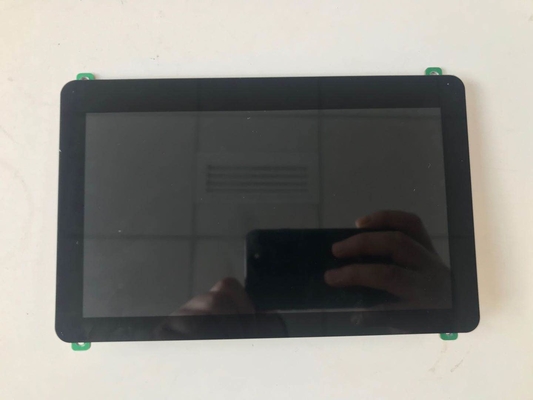

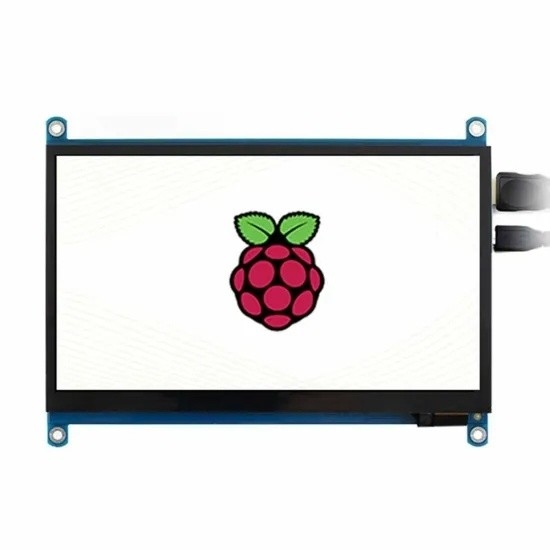

Raspberry Screen Transmissive 7'' TFT LCD 1024RGBX600 Pixels Display HDMI Touch
Product Description
A 7-inch display screen is a display screen with a size of 7 inches (approximately 17.78 centimeters), also known as a 7-inch display screen. It is a liquid crystal display that utilizes the photoelectric effect to convert electrical pulses into visible images. The 7-inch display screen is mainly composed of LCD panel, driver circuit board, control circuit board, built-in power supply and other components, which has the advantages of small size, good display effect, simple operation, and durability.
| Item | STANDARD Value |
| LCD size | 7 inch(Diagonal) |
| LCD Display Type | TFT/TRANSMISSIVE |
| LCD Display Mode | Normally White |
| Recommended Viewing Direction | All O'clock |
| Gray inversion Direction | 6 O'clock |
| Resolution | 1024RGB×600 |
| Module size | 165.30×121.00×7.75 mm |
| Active area | 154.08×85.92 mm |
| Pixel pitch | 0.1926×0.179 mm |
| Color Pixel Arrangement | RGB Stripe |
| LCD Driver IC | TBD |
| Module Interface Type | HDMI(Display)&USB(touch) |
| Module Input voltage | Android/Win7/Win8 |
| Interface | 5.0V |
| Module Power consumption | TBD |
| Color Numbers | 16.7M |
| Backlight Type | White LED |
| Top & Tst | -20˚C ~ +70˚C &-30˚C-~+80˚C |
Product Features
Compared with LCD screens of other sizes, the 7-inch TFT LCD screen has some unique features:
1. Low energy consumption: It saves power and does not generate high temperatures (the main power consumption and heat generation parts are in the backlight tube or LED)
2. Uniform brightness: The brightness of this LCD screen is very uniform and it can maintain high definition even under strong outdoor light.
3. Low radiation: It has low working voltage and low radiation, which is healthier and more comfortable.
4. Soft and comfortable screen: The screen will not flicker, which can reduce the damage to the eyes caused by the display and make the eyes less likely to tire.
5.Vibrant Colors: 7-inch TFT LCD display generally delivers vibrant colors.
6. Fast response: 7-inchTFT LCD Display usually have fast response speed, that is, the speed at which the image refreshes.
Product Applications
1. Digital Cameras: Some compact digital cameras utilize 7-inch TFT LCD displays as the main screen for framing and reviewing photos. The display can show captured images, camera settings, and menus.
2. IoT Devices: Internet of Things (IoT) devices such as small sensors or connected devices may utilize 7-inch TFT LCD displays to provide a basic user interface for configuration, status updates, or simple interactions.
3. Portable Media Players: 7-inch TFT LCD displays are commonly used in portable multimedia devices such as portable media players, handheld gaming consoles, and portable DVD players.
4. Wearable Devices: Some wearable devices like fitness trackers, heart rate monitors, or activity trackers may incorporate a 7-inch TFT LCD display to show fitness data, health metrics, and user interface elements.
5. Measurement Instruments: Small measurement instruments or handheld meters may integrate a 7-inch TFT LCD display to show measurements, readings, graphs, and other data.
Our Advantages
1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty period is one year.
FAQ
1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.
2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.
3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.
4. How long does it take to produce the product?
-It depends on the product you need. Usually 15~30 working days.
5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instruction by Clients → Delivery → Cargo tracking → Receipt of cargo
