Product Details:
Payment & Shipping Terms:
|
| Product Type: | TFT LCD | Product Size: | 4.3inch |
|---|---|---|---|
| Viewing Angle: | 6 O’clock | Display Mode: | Normally White, Transmissive |
| Driver Element: | A-Si TFT Active Matrix | Resolution: | 480X3 (RGB) X272 |

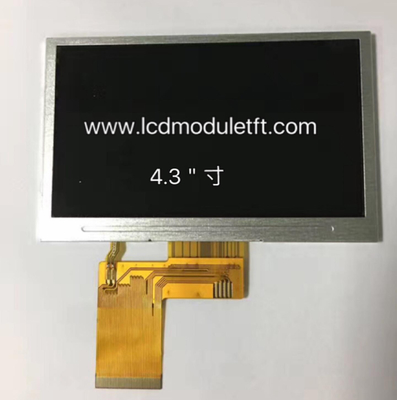

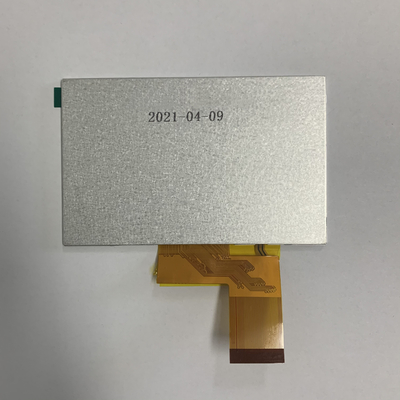

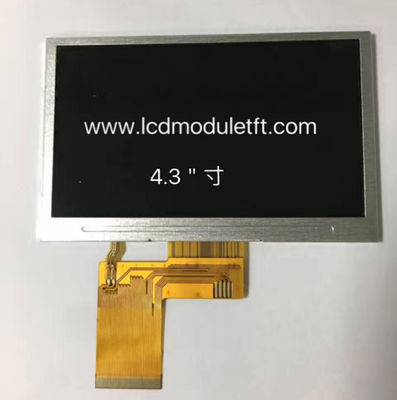

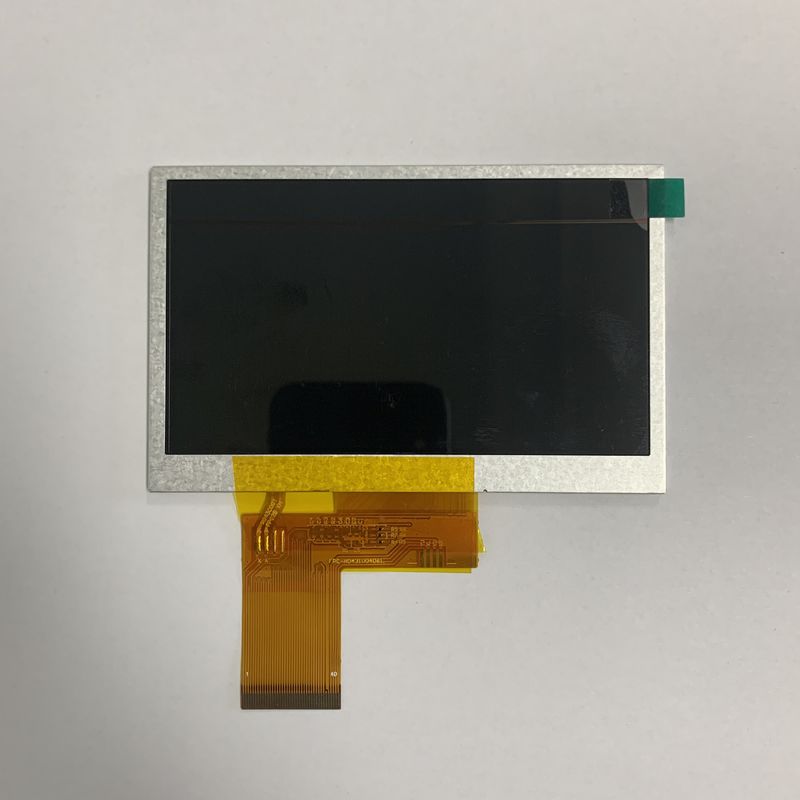

Transmissive 6 O'clock View Direction 4.3'' TFT LCD Display 480X3 (RGB) X272
Product Description
The 4.3-inch TFT LCD display has a physical size of 4.3 inches (approximately 10.9 cm) diagonally and a resolution of 480x272 to provide clearer, more detailed images and text display. 4.3-inch color screens usually use TFT (thin film transistor) liquid crystal technology. TFT technology is built on the basis of adding a thin film transistor to each pixel. Each transistor is used to control liquid crystal molecules in the liquid crystal layer to achieve light regulation and image display. The 4.3-inch color screen is equipped with an LED backlight. The backlight provides the brightness of the screen, making it clearly visible under various environmental conditions. The table contains some data about our 4.3 inch TFT LCD Display.
| Item of general information | Contents |
| LCD Type | 4.3 inch(Diagonal) |
| Recommended Viewing Direction | 6 O'Clock |
| Dot pitch(W × H×T)(mm) | 0.198(W) × 0.198 (H) |
| Active area(mm) | 95.04 (W) × 53.856(H) |
| Panel size | 105.42(W) ×67.07(H) ×3.0(D) |
| Color arrangement | RGB Vertical stripe |
| Display Color | 16.7M |
| Backlight Type | Side-Light |
| Driver element | a-Si TFT active matrix |
| Interface | Digital, Parallel 8-bit RGB |
| LCD Drive IC | OMT5180/ST7282 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Product Features
Compared with LCD screens of other sizes, the 4.3-inch TFT LCD screen has some unique features:
1. Compact size: The 4.3-inch TFT LCD is a moderate display screen suitable for mobile devices and some portable electronic products.
2. High resolution: A 4.3-inch TFT LCD usually has a higher resolution and can present clear and detailed images and text.
3. High contrast: 4.3-inch TFT LCD generally provide high contrast.
4.Vibrant Colors: 4.3-inch TFT LCD display generally delivers vibrant colors.
5. Fast response:4.3-inch TFT LCD Display usually have fast response speed, that is, the speed at which the image refreshes.
Product Applications
The 4.3-inch TFT LCD screen can not only meet the needs of daily use, but also support high-end application scenarios such as high-definition video playback and game entertainment. The 4.3-inch TFT LCD Display is one of the most common screen sizes for smartphones and tablets. They are used to display mobile applications, games, web browsing, media playback and other interactive interfaces, providing a rich multimedia experience. And the 4.3 inch TFT LCD Display is suitable for use in portable devices and electronic products. In addition to the above applications, the 4.3-inch color screen can also be used in car navigation systems, car entertainment systems, security monitoring systems, advertising displays and other fields.
Our Advantages
1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty period is one year.
FAQ
1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.
2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.
3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.
4. How long does it take to produce the product?
-It depends on the product you need. Usually 15~30 working days.
5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instruction by Clients → Delivery → Cargo tracking → Receipt of cargo
