Product Details:
Payment & Shipping Terms:
|
| Product Type: | TFT LCD | Product Size: | 5inch |
|---|---|---|---|
| Viewing Angle: | 6 O'clock | Driver IC: | St7789V2 |
| Display Mode: | Normally White TN | Interface: | 5V |

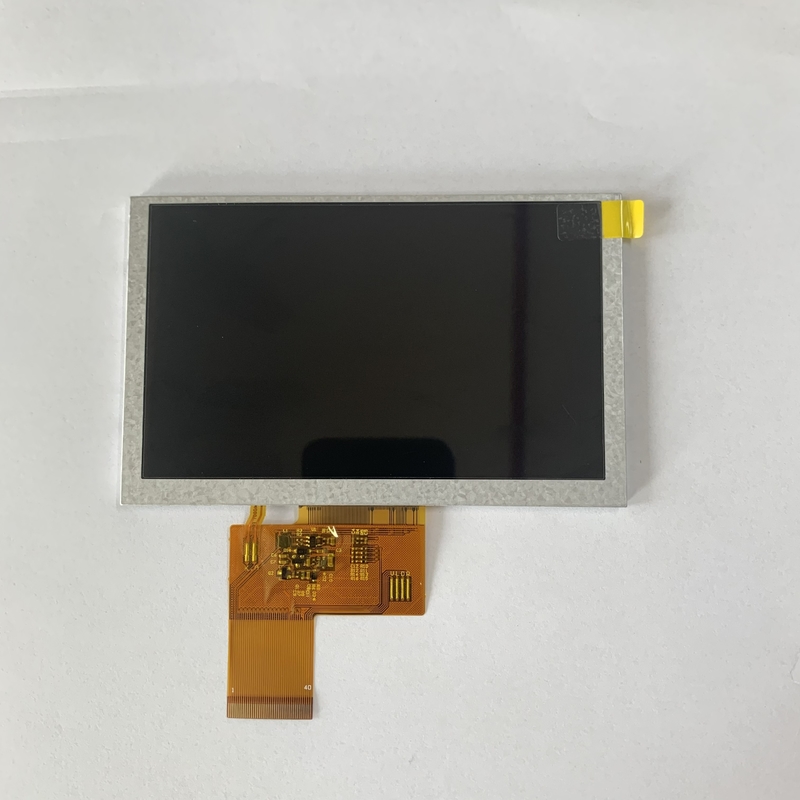

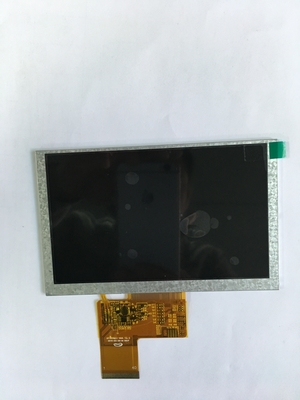

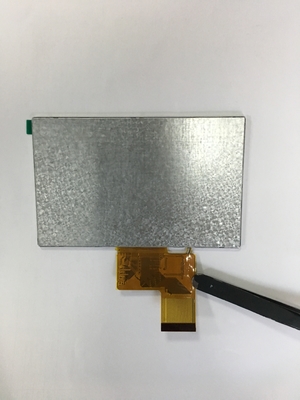

40 Pins FPC RGB 5'' TFT LCD Display 480rgbx272 Resolution with Rtp
Product Description
A TFT LCD module consists of a glass panel with a thin-film transistor array formed on it. The TFT array is composed of individual transistors associated with each pixel, allowing for precise control of each pixel's state. Color filters and liquid crystal material are also present to produce colors and control light transmission. "5-inch" refers to the diagonal measurement of the display panel. The actual dimensions of the module vary depending on the manufacturer. The following are some detailed information about our 5-inch TFT LCD Moudule product.
| Item | STANDARD Value |
| Display Size | 5 Inch |
| View Direction | 6 O'clock |
| Outline Dimension | 120.7 x 75.8 x 3.0 (mm) |
| Display area | 110.8(H) x 62.8(V)(mm) |
| Number of Pixel | 480 RGB (H) x 272(V)(mm) |
| Pixel pitch | 0.135(H) x 0.135(V)(mm) |
| Pixel arrangement | RGB Vertical stripe |
| Display mode | Normally white |
| interface | 6 bits + FRC driver with 1 channel TTL |
| Power supply voltage | 5V |
| Top & Tst | -20˚C ~ +70˚C &-30˚C-~+80˚C |
Product Features
Compared with LCD screens of other sizes, the 5-inch TFT LCD screen has some unique features:
1. Compact size: The 5-inch TFT LCD is a moderate display screen suitable for mobile devices and some portable electronic products.
2. High resolution: A 5-inch TFT LCD usually has a higher resolution and can present clear and detailed images and text.
3. High contrast: 5-inch TFT LCD generally provide high contrast.
4.Vibrant Colors: 5-inch TFT LCD display generally delivers vibrant colors.
5. Fast response: 5-inchTFT LCD Display usually have fast response speed, that is, the speed at which the image refreshes.
Product Applications
1. Smartphones and wearable devices: 5-inch TFT display screens, as a mainstream display device, are widely used in various mobile phones and wearable devices. These devices are thin, light, and high-performance, and the 5-inch TFT display can provide clear and detailed images, bringing a good user experience to consumers.
Our Advantages
1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty period is one year.
FAQ
1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.
2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.
3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.
4. How long does it take to produce the product?
-It depends on the product you need. Usually 15~30 working days.
5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instruction by Clients → Delivery → Cargo tracking → Receipt of cargo
