Product Details:
Payment & Shipping Terms:
|
| Model NO.: | RYT0350RDW01 | Product Type: | TFT LCD |
|---|---|---|---|
| Active Area(mm): | 70.08*52.36 | Viewing Direction: | 12 O'clock |
| Resolution: | 320 X (RGB) X 240 | Interface: | 24-Bit RGB/Serial RGB/Ccir656/Ccir601 |

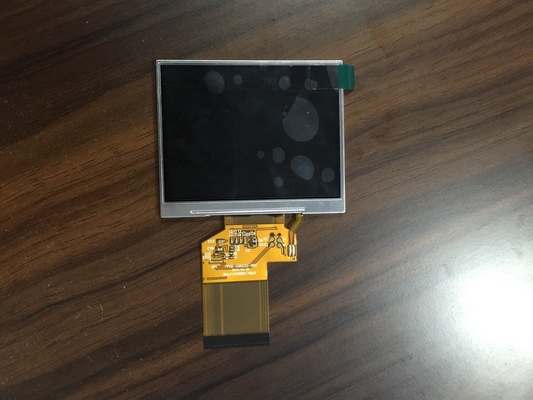

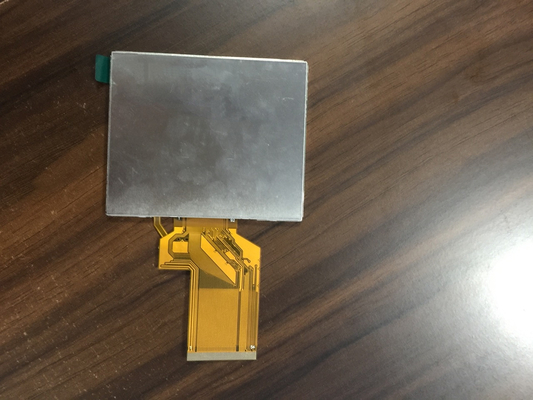

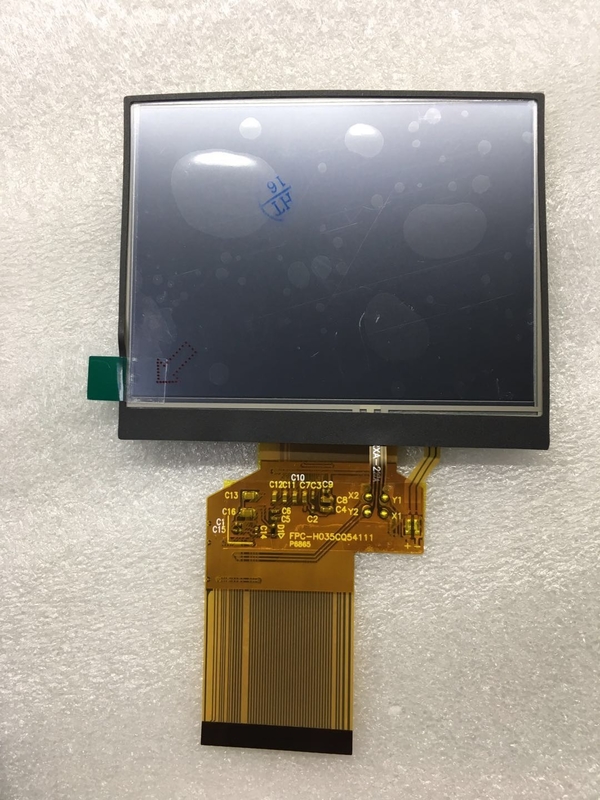

3.5inch TFT LCD Display Module 320X240 Color Screen with Resistive Touch Panel
Product Description
A TFT LCD module consists of a glass panel with a thin-film transistor array formed on it. The TFT array is composed of individual transistors associated with each pixel, allowing for precise control of each pixel's state. Color filters and liquid crystal material are also present to produce colors and control light transmission. "3.5-inch" refers to the diagonal measurement of the display panel. The actual dimensions of the module vary depending on the manufacturer. Typically, a 3.5-inch TFT LCD module has a resolution of 320x240 pixels, providing a moderately sized display area.
| Characteristics | Features | Specification |
| LCD Size | 3.5inch | |
| Display Fromat | 320(RGB) x 240 | |
| Interface | 24-bit RGB/SERIAL RGB/CCIR656/CCIR601 |
|
| Color Depth | 16.7M | |
| Technology type | a-Si | |
| Display Spec. | 0.073 x 0.219 | |
| Display mode | Normally White | |
| Driver IC | HX8238D | |
| Surface Treatment | Haze 20% | |
| Viewing Direction | 12 O'clock | |
| Gray Viewing Direction | 6 O'clock | |
| Mechanical | LCM(W x H xD) (mm) | 76.90*63.9*3.26 |
| Active Area | 70.08*52.36 | |
| With/Without TSP | Without TSP | |
| Weight(g) | TBD | |
| LED Numbers | 6 LEDs |
Product Features
Compared with LCD screens of other sizes, the 3.5-inch TFT LCD screen has some unique features:
1. Moderate size
The 3.5-inch screen size is suitable for a variety of portable devices such as smartphones, portable game consoles, medical equipment and instruments. Not only does it provide enough visual information, it also keeps the device compact.
2. High resolution
Although smaller in size, the resolution of 3.5-inch TFT LCD screens is usually relatively high. This means it can display more details and clearer images, making it suitable for applications requiring high precision.
3. Display quality
The TFT LCD screen has excellent color performance and contrast, and can present bright and vivid images. This makes it ideal for areas requiring high-quality images, such as entertainment equipment, medical diagnostic equipment, and scientific instruments.
4. Fast response time
3.5-inch TFT LCD screens usually have fast response times, which is very important for applications in video playback and gaming that require fast image refresh. Fast response time helps reduce motion blur and image tearing.
Product Applications
3.5-inch TFT LCD screens are widely used in many fields, the following are some of the main fields:
1. Smartphone
Many early smartphones used 3.5-inch TFT LCD screens, which provided suitable screen size and high-quality images, allowing users to engage in multimedia entertainment and online browsing.
2. Medical equipment
Medical equipment such as portable ultrasound instruments and blood glucose monitors usually use 3.5-inch TFT LCD screens to display patient data and images for doctors to diagnose and monitor.
3. Instruments and scientific equipment
Scientific instruments, test equipment and measurement tools often use 3.5-inch TFT LCD screens to display experimental data and results to ensure high accuracy and visibility.
4. Industrial control
Industrial control panels usually use 3.5-inch TFT LCD screens to monitor industrial processes, such as automated production lines and machine operations.
5. Smart home appliance
In smart home appliance, a 3.5-inch LCD screen is usually used, such as attendance machines and video doorbells.
6. Portable Handheld Devices
The compact size of a 3.5-inch TFT LCD module makes it suitable for integration into portable handheld devices such as handheld gaming consoles, portable media players, digital cameras, and GPS navigation systems. It provides a vibrant and detailed display for media playback, gaming graphics, and user interfaces.
7. Consumer Electronics:
The 3.5-inch TFT LCD module can be used in various consumer electronic devices such as portable DVD players, digital photo frames, e-book readers, and home appliances with display interfaces.
Our Advantages
1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty period is one year.
Packing&Shipping
Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.
Delivery Time:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
FAQ
1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.
2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.
3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.
4. How long does it take to produce the product?
-It depends on the product you need. Usually 15~30 working days.
5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instruction by Clients → Delivery → Cargo tracking → Receipt of cargo
