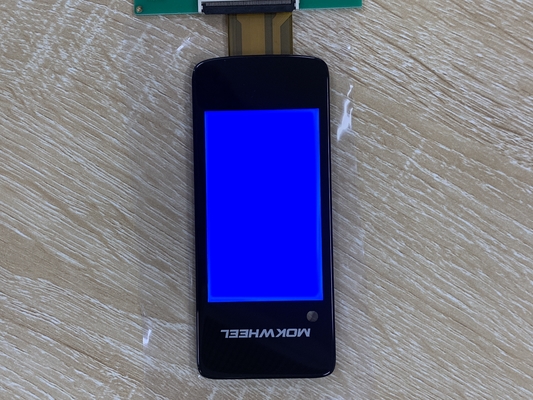

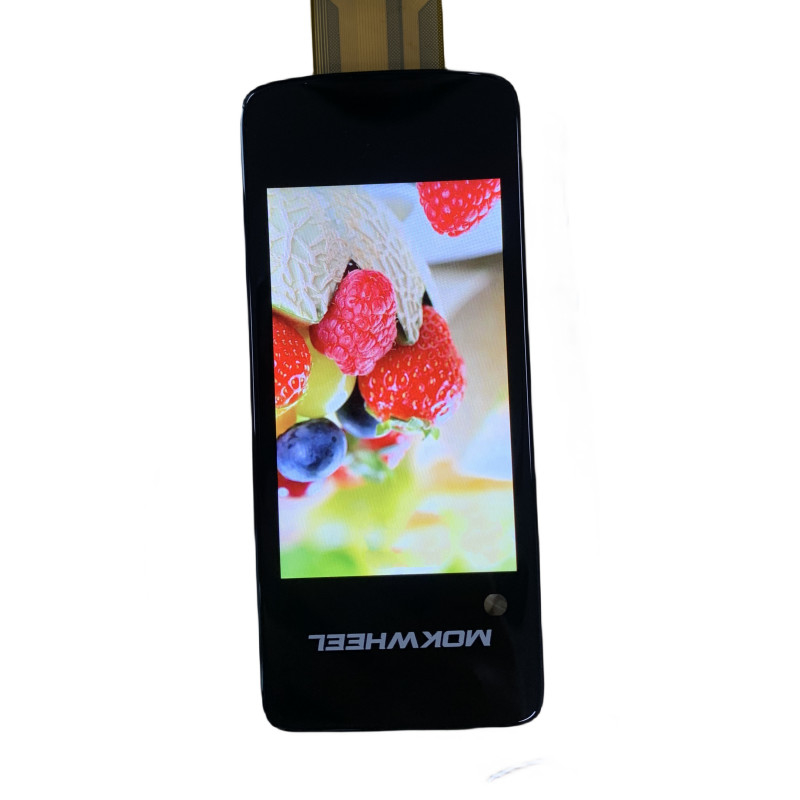

High Resolution 3.1inch 480*RGB*800 TFT LCD Module with BOE Glass

High Resolution 3.1inch 480*RGB*800 TFT LCD Module with BOE Glass
High Resolution 3.1inch 480*RGB*800 TFT LCD Module with BOE Glass

Large Image :  High Resolution 3.1inch 480*RGB*800 TFT LCD Module with BOE Glass

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS, ROHS
Model Number: RYT031WVGA
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 15~25 working days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 10k/Month
Detailed Product Description
Display Type: TFT LCD Resolution: 480 X 3(RGB) X 800
Display Mode: Normally White/Transmissive Viewing Angle: FREE
Cover Glass Size: 113.06*48.52mm LCM Size: 74.72*43.48mm
LCM Viewing Area: 67.65*40.72mm LCD Active Area: 67.2*40.32mm
Drive IC: ST7701S-G5 Glass Brand: Boe
Brightness: 350 Nits Highlight: High Resolution & Brightness

High Resolution 3.1inch TFT LCD 480*RGB*800 with BOE Glass

Quick Detail of 2.8inch TFT LCD Module

3.1 Inch TFT Display | RYT031WVGA
Driver: ST7701S-G5
LVDS, White LED backlight, IPS, Wide temp, Transmissive, Capacitive Touch Screen, HDMI connection, CTP Driver: ILI9341V RoHS Compliant

1. IPS, free viewing direction display screen.
2. Customized :Logo,Touch Button,Silk-Printing,Mirror Cover Lens,Shape/Hole
3. Anti-Glare/Anti-Finger/ Anti-Reflective/Waterproof/Gloves Touch Available
4. Supply TFT/Touch Panel/touch display module(TFT+CTP)

High Resolution 3.1inch 480*RGB*800 TFT LCD Module with BOE Glass 0
Specification of 3.1inch TFT Display

Model NO. RYT031WVGA
LCD Module Type High resolution TFT Module
Usage Small-sized LCM, Monitor LCM
Touch Screen Type Without touch
Viewing Angle FREE
Glass brand BOE
Brightness 350nits
Interface IPS

High Resolution 3.1inch 480*RGB*800 TFT LCD Module with BOE Glass 1


About 3.1inch TFT LCD Display


A 3.1-inch 480x800 TFT display refers to a specific type of TFT (Thin-Film Transistor) display with a screen size of 3.1 inches and a resolution of 480x800 pixels. Here's some information about this type of display:

1. TFT Technology: TFT is a type of LCD (Liquid Crystal Display) that uses thin-film transistors to control individual pixels on the screen. It offers improved image quality, color accuracy, and faster response times compared to traditional passive matrix LCDs.

2. Screen Size: The display has a diagonal measurement of 3.1 inches, which refers to the distance from one corner of the display to the opposite corner. The actual dimensions of the display can vary depending on the aspect ratio and bezel size.

3. Resolution: The display has a resolution of 480x800 pixels. This means it can display a grid of 480 pixels horizontally and 800 pixels vertically, resulting in a total of 384,000 pixels. The higher the resolution, the more detailed and sharp the displayed content can be.

3. Aspect Ratio: The aspect ratio of the display refers to the ratio of the width to the height of the screen. In the case of a 480x800 display, the aspect ratio is approximately 15:9. This aspect ratio influences the visual proportions of the displayed content.

4. Color Depth: TFT displays support different color depths, typically measured in bits per pixel (bpp). A common color depth for this type of display is 16 bits (65,536 colors) or 24 bits (16.7 million colors), allowing for vibrant and accurate color reproduction.

5. Interface: TFT displays are driven by a controller that communicates with the display using a specific interface. Common interfaces for TFT displays include parallel interfaces, such as RGB (Red, Green, Blue), as well as serial interfaces like SPI (Serial Peripheral Interface) or MIPI DSI (Mobile Industry Processor Interface Display Serial Interface).

6. Applications: TFT displays of this size and resolution are commonly used in handheld devices, portable media players, smartphones, smartwatches, GPS navigation systems, and various other portable electronic devices. Their compact size and reasonably high resolution make them suitable for applications that require a balance between screen real estate and visual quality.

It's worth noting that the specific features and characteristics of a 3.1-inch 480x800 TFT display can vary depending on the manufacturer and model. Therefore, it's important to refer to the display's datasheet or specifications for precise details regarding the display's electrical characteristics, viewing angles, brightness, and other parameters.

High Resolution 3.1inch 480*RGB*800 TFT LCD Module with BOE Glass 2

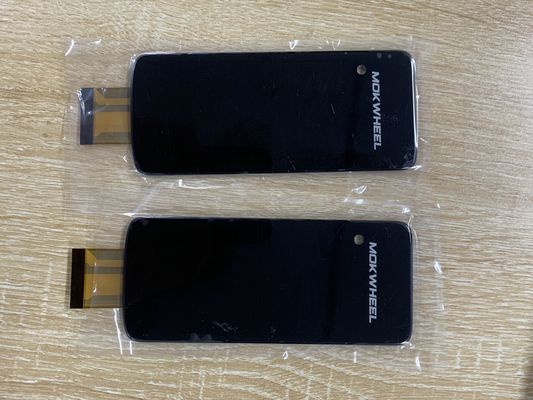

Packing & shipping & delivery about 3.1inch TFT display

Packaging Details:

All the products are packed in right way to keep it safe.

For small sizes of products we use tray + carton,

For bigger sizes we use foam slot + carton.

we also design packages according to customers' requirements

Shipping Details:

For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.

For large quantity orders: we ship by buyer's cargo agent in China,

we can also ship by air or sea transportation by our cargo agent.

Delivery Details:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks


FAQ about TFT display

Q1. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.



Q2. What is the lead time for Sample order and Mass Production order?
A:
--For Royal Display standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.

--For Customized products,

We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.

Mass production of special products could be as fast as 3weeks.

--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.



Q3. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.
