Product Details:
Payment & Shipping Terms:
|
| Type: | Capacitive | Aspect Ratio: | 16:9 |
|---|---|---|---|
| Colors: | Black , Accept Custom | Structure: | Cover Lens + Sensor +FPC |
| Size: | Customized Sizes | Application: | Tablet,Smart Home,Car, Mobile,Industrial Automation.ATM |
| High Light: | 3.5Inch Touch Screen Panel,Capacitive Touch Screen Panel,I2C Touch Screen Panel |
||

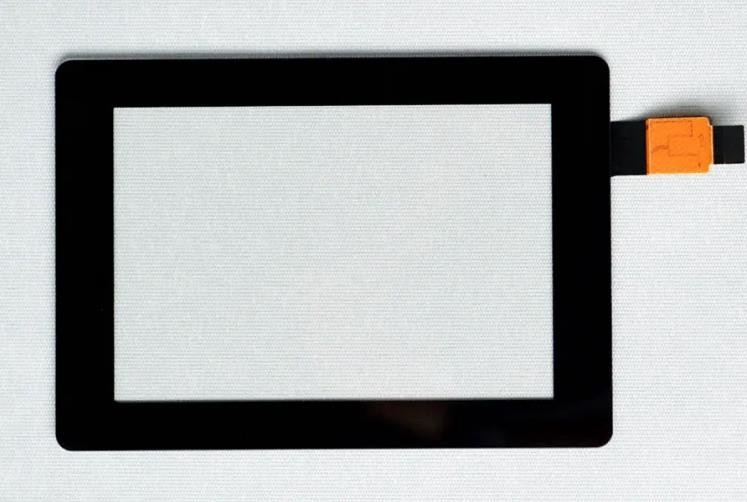

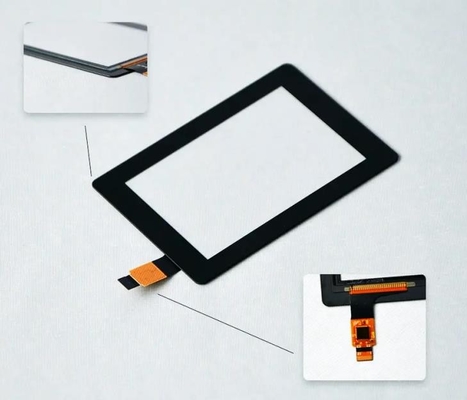

Small Size 3.5 Inch Custom Industrial Touchscreen I2C Capacitive Touch Screen Panel
Specification Of Touch Screen
We have standard one and also available to make the customization of with different size, shape, color, logo etc.
Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding.
Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel, ILITEK, ST...
| Type | 3.5''Capacitive touch screen | Structure | G+G |
| Lens OD | 94.94x66.86mm | Surface Hardness | 6H |
| Sensor OD | 82.34x56.86mm | Transparency | 86%min |
| Window VA | 74.94x50.36mm | Interface of CTP | USB/I2C/RS232 |
| Cover Glass Thickness | 0.70mm | Touch Points | 2points |
| Sensor Thickness | 0.40mm | Storage Temp | -30 to 80 degree |
| Total Thickness | 1.30mm | Operating Temp | -20 to 70 degree |
| Touch Controller | Mstar2133A | Touch Solution | COF |
| Silk-print Color | Black | Customized | Available |
| Supported Os | Windows, Linux, Android, Mac, QNX | ||
Warranty
Royal Display offers the original purchaser who has purchased a product from the lcd module tft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
Application
About US
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
