Product Details:
Payment & Shipping Terms:
|
| LCD Type: | Va | Polarizer Type: | Transmissive/Negative |
|---|---|---|---|
| Module Size(mm): | 110.0(W)*70.0(H)*2.85(D) | Viewing Area(mm): | 100.0(W)*60.0(H) |
| Operating Voltage: | 3.3V | Frame Frequency: | 64Hz |
| Drive Mode: | 1/4 Duty 1/3 Bias | Viewing Direction: | 12 O'clock |
| High Light: | 3.3V Negative VA LCD Panel,VA LCD Panel 1/3 Bias,FSTN VA 7 Segment LCD Display |
||

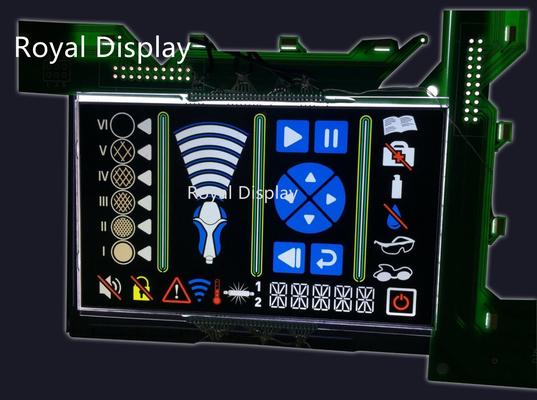

7 Segment LCD Display Va Negative 64Hz Graphic LCD Display with Silk-Screen
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | 7 Segment Va Negative Graphic Lcd Display |
| Module No. | RYD2080VV01-B |
| Viewing Angle | 12 O' clock |
| Display Type | VA |
| Polarzier Mode | Transmissive/Negative |
| Drive Method | 1/4 Duty 1/3 Bias |
| Power supply | 3.3V |
| Connector | PIN |
| Operating Temp | 0º C~50ºC |
| Storage Temp | -20º C~70ºC |
WHAT IS VA LCD DISPLAY
VA liquid crystal (vertical alignment liquid crystal) is the abbreviation of vertical alignment liquid crystal. Compared with TN LCD, VA LCD has higher contrast and wider viewing angle. It is the mainstream technology used in today's large screen LCD TV. It has high contrast, mild color temperature and low light leakage. The viewing angle can be increased to 178 degrees, which has the advantage of improving the discoloration of TN layout.
FAQ
Q: Can we customize product? What cost will be included?
A: The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q: What is your delivery method?
A: EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q: What kind of packaging? The transport process will not be damaged?
A: Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
