50 Pin Connector 137PPI 7in TFT LCD Panel 800X480 At070tn94

50 Pin Connector 137PPI 7in TFT LCD Panel 800X480 At070tn94
50 Pin Connector 137PPI 7in TFT LCD Panel 800X480 At070tn94 50 Pin Connector 137PPI 7in TFT LCD Panel 800X480 At070tn94

Large Image :  50 Pin Connector 137PPI 7in TFT LCD Panel 800X480 At070tn94

Product Details:
Place of Origin: CHINA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: AT070TN94
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: please contact us
Packaging Details: Standard Packaging
Delivery Time: 25~30days
Supply Ability: 2000pcs per month
Detailed Product Description
Product Name: Innolux AT070TN94 LCD Panel Model Number: AT070TN94
Resolution: 800X3(RGB)X480 Display Mode: Normally White, Transmissive
Panel Size(mm): 164.9 X 100.0 X 5.7 Surface Treatment: Antiglare
High Light:

137PPI TFT LCD Panel

,

7in TFT LCD Panel

,

800X480 Lcd Display Module

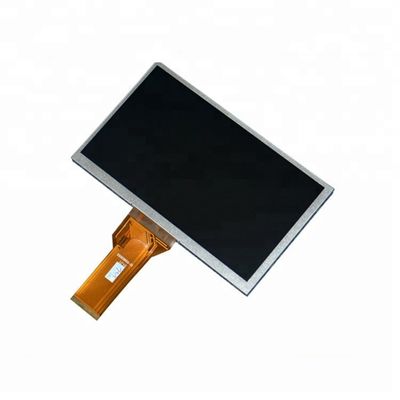

Innolux 50 Pin Connector LCD Display Panels 7 Inch TFT 800X480 At070tn94


PRODUCT DESCRIPITION

Panel Name: AT070TN94
Touch Panel: Optional TP
Screen Size: 7" inch
Aspect Ratio: 16:9
Display Mode: Transmissive
Display Resolution: 800X3(RGB)X480
PPI ( Pixel per inch ): 137
Module/Panel Size(mm): 164.9 x 100.0 x 5.7
Active Area(mm): 154.08 x 85.92
Dot Pitch(mm): 0.0642(W) X 0.1790(H)
Surface Treatment: Anti-Glare
Viewing Angle (Tpy.)θT/θB/θL/θR: 50/70/70/70
Viewing direction: 6 O'Clock
NTSC: 50%
Luminance(nits): 400
Contrast Ratio: 500
Response Time(ms): 25
Consumption (W)- Panel: 0.226
Consumption (W)- Backlight: 1.674
Module Weight (g): 150.0
Interface: 50pin FPC,Parallel 24bit RGB
Operation Temperature( ºC): -30~85
Storage Temperature (ºC): -30~85
Lamp Type: White LED backlight Display




APPLICATION OF CHIMEI INNOLUX G057VGE-T01



IT Products: Digital Video, Media Player, Advertising Machine.
Medical Equipment: Ultrasound Machine, Medial Monitor, Medical Imaging, Healthcare

Telecommunication Devices: Telephone, Interphone, Smart Watch, Tablet PC, PDA
Consumer Products: Camera, DVD Player, Cell Phone, Game Player, Digital Photo Frame, E-Book Reader, Mp3 Player, MP4 PMP, Netbook PC
Home Appliances: Air-condition Display, Refrigerator, Video Doorbell, Smart Machine
Automobile Display: GPS, Protable Navigation, Video Player,Speedometer, Recorder.
Technical Equipment: Elevator Controller, Industrial Machine, Security Monitor, POS
Office Automation: Printer, Scanner, Fax Machine, Desktop Monitor, Desktop Monitor
