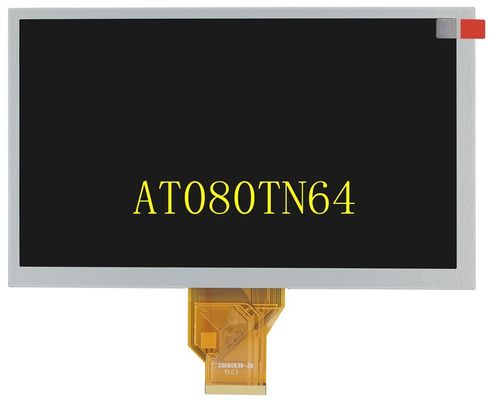

At080tn64 Innolux 8" LCM 800X480 Automotive LCD Panel 0.226W

At080tn64 Innolux 8" LCM 800X480 Automotive LCD Panel 0.226W
At080tn64 Innolux 8" LCM 800X480 Automotive LCD Panel 0.226W At080tn64 Innolux 8" LCM 800X480 Automotive LCD Panel 0.226W

Large Image :  At080tn64 Innolux 8" LCM 800X480 Automotive LCD Panel 0.226W

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: RoHS
Model Number: AT080TN64
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: $USD 18.9/pcs
Packaging Details: 30pcs/carton
Delivery Time: 7~10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300,000 Piece/Pieces per Year
Detailed Product Description
Type: TFT Display Type: TFT LCD
Screen Size: 8'' Resolution: 800X3(RGB)X480
Driver Element: A-Si TFT Active Matrix Outline (mm): 192.8(W) X 116.9(H) X 6.4(D)
Active Area(mm): 176.64(W) X 99.36(H) Color Arrangement: RGB-stripe
Surface Treatment: Anti-Glare Backlight Power Consumption: 2.232 W (Typ)
Interface: Digital Driving Methods: 1+2 Dot
Application: Industrial Application
High Light:

800X480 Automotive LCD Panel

,

8" LCM Automotive LCD Panel

,

0.226W Automotive LCD Display

At080tn64 Innolux 8" LCM 800X480 Automotive Display LCD Panel

PRODUCT DESCRIPTION

Item Description
Model Name AT080TN64
Product type TFT LCD Module
Screen Size 8.0"
Resolution 800X3(RGB)X480
Module Size(mm) 192.8(W) X 116.9(H) X 6.4(D)
Active Area(mm) 176.64(W) X 99.36(H) mm
Surface treatment Anti-Glare
Color arrangement RGB-stripe
Backlight Power consumption 2.232 W (Typ)
Panel Power consumption 0.226W (Typ)
Driving methods 1+2 dot
Interface Digital
Operation Temperature( ºC) -20º C~70ºC
Storage Temperature (ºC) -30º C~80ºC



At080tn64 Innolux 8" LCM 800X480 Automotive LCD Panel 0.226W 0

APPLICATION OF CHIMEI INNOLUX AT080TN64


1. Automotive Application
2. Industrail Security
3. Intelligent Interaction
4. Smart Home Appliances
5. Digital SignageAt080tn64 Innolux 8" LCM 800X480 Automotive LCD Panel 0.226W 1

At080tn64 Innolux 8" LCM 800X480 Automotive LCD Panel 0.226W 2
