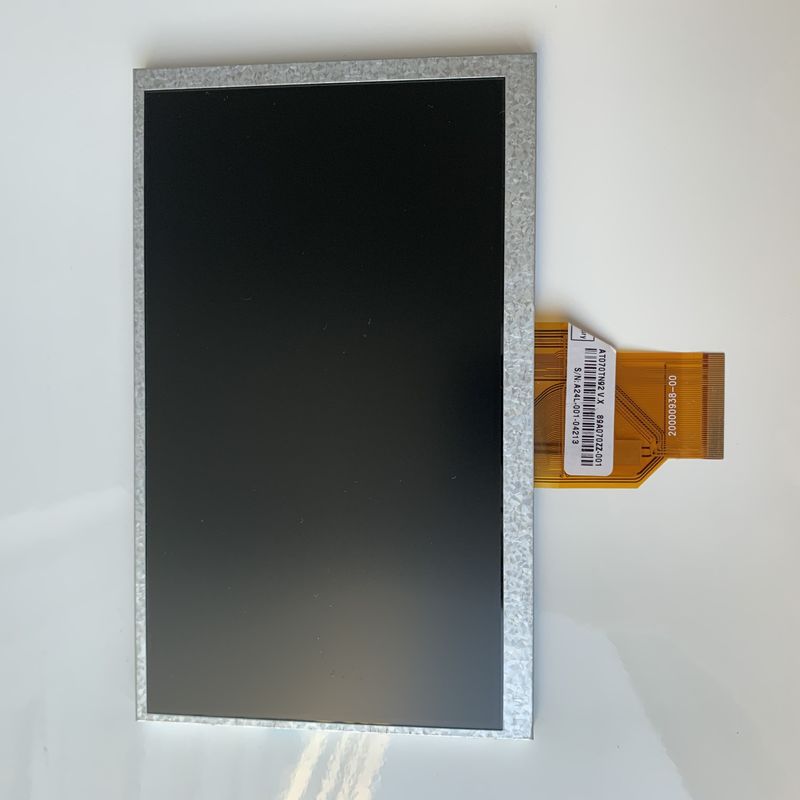

7.0 Inch 250cd/m2 800x480 High Brightness Tft Panel AT070TN94

7.0 Inch 250cd/m2 800x480 High Brightness Tft Panel AT070TN94
7.0 Inch 250cd/m2 800x480 High Brightness Tft Panel AT070TN94 7.0 Inch 250cd/m2 800x480 High Brightness Tft Panel AT070TN94

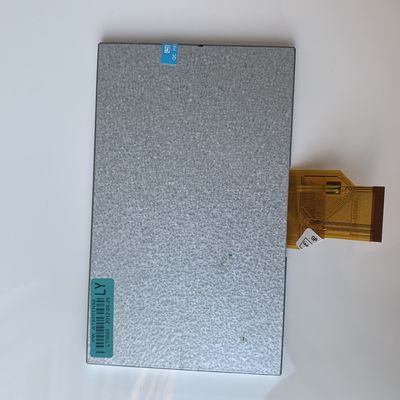

Large Image :  7.0 Inch 250cd/m2 800x480 High Brightness Tft Panel AT070TN94

Product Details:
Place of Origin: China
Brand Name: Royal
Certification: RoHS
Model Number: AT070TN94
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: $19.99/pcs
Packaging Details: 96pcs/carton
Delivery Time: 15~18 working days
Payment Terms: Western Union, T/T
Supply Ability: 300,000 Piece/Pieces per Year
Detailed Product Description
Screen Size: 7" Resolution: 800X3(RGB)X480
Display Mode: Normally White Transmissive Outline Dimension: 164.9(W)x100(H)x5.7(D)
Active Area: 153.6(H)X90(V)mm Application: Industrial Application
Pixel Arrangement: RGB-Veritical Stripe Drive IC: GT911
TP: 8-wire CTP
High Light:

800x480 High Brightness Tft Panel

,

250cd/M2 High Brightness Tft Panel

,

AT070TN94

Innolux 7 Inch TFT Display | AT070TN94

Custom high brightness tft panel 7.0 inch 800x480 RGB interface 1000 units LCD

Innolux's employees worldwide number more than 60,000, and its production sites and sales locations span the global.
With its major TFT plants located in Zhunan and Tainan, both in Taiwan, Innolux has also established overseas
module plants in the Chinese cities of Ningbo, Nanjing, Foshan, and Shanghai. Innolux's extensive global presence allows it to quickly provide a full range of services to its customers, reducing logistics and manpower costs, while achieving the environmental objectives of energy conservation and reduced carbon emissions. Innolux's unique intelligent management platform has not only enhanced the company's management capabilities, but also provides customers with prompt, accurate delivery information.
This is just one of the ways we are constantly striving to boost customer satisfaction.



Module number AT070TN94
Resolution 800X480
Pixel pitch 0.05(W) × 0.15(H) mm
Active Area 153.6(W) × 90.0(H) mm
View angle R/L/U/D 75/75/70/75(Deg)
Pixel Arrangement RGB Vertical Stripe
Surface Treatment Anti-glare
Electrical Interface LVDS
Brightness 250(cd/m2)
Contrast ratio 500:01:00
Outline dimension 165.75(W) ×105.39(H) ×3.4(D) mm
Backlight LED
Response time 25(ms)
Display mode TN, Normally White, Transmissive
Operate temperature -30-85(°C)
Storage temperature -30-85(°C)
Display Colors 262k/16.7M(6 bit/ 6 bit + Dithering)
Power Consumption 1.90W(Typ.)
Power Supply Voltage 3.3v(Typ.)
Backlight lifetime 20k hrs(Min.)



7.0 Inch 250cd/m2 800x480 High Brightness Tft Panel AT070TN94 07.0 Inch 250cd/m2 800x480 High Brightness Tft Panel AT070TN94 1

ACCESSORIES

Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
7.0 Inch 250cd/m2 800x480 High Brightness Tft Panel AT070TN94 2



WARRANTY

Royal Display offers the original purchaser who has purchased a product from the lcdmoduletft.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.

7.0 Inch 250cd/m2 800x480 High Brightness Tft Panel AT070TN94 3

OUR SERVICE ADVANTAGES



1. Small order would be accepted.

2. Mass production lead time would be guaranteed.

3. Each order will have 0.2%-0.5% spare.

4. Even customers do not have a cooperation with us, we also can provide technical services.

5. If mass production has any quality problem, customer can return it.
6. Got many good reviews from our customers.
