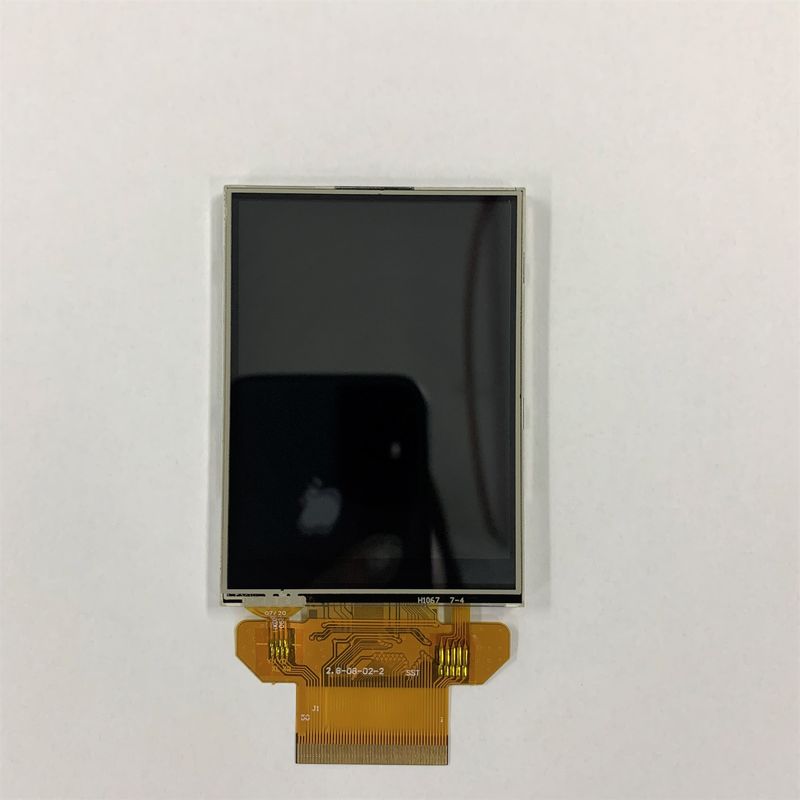

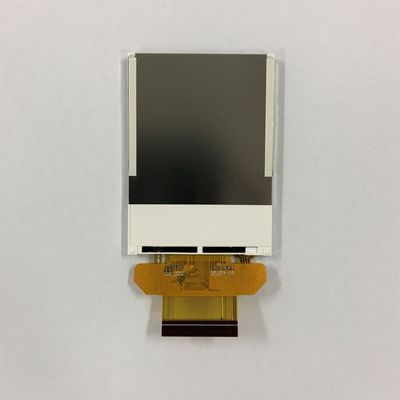

2.8'' RGB 240X320 Transmissive TFT LCD Module Panel

Certification
China Royal Display Co.,Limited certification
China Royal Display Co.,Limited certification
Customer Reviews
Royal Display, Perfect LCD Supplier, Fast response, thanks for cooperation.

—— Beata from Poland

Received the lcds today, no damage and test well, thanks.

—— Natalya Kryukova from Russia

Fast delivery and good quality, I am happy with Royal Display, I will order more later.

—— Meerimgul from Turkey

High quality screen, fast service.

—— Daniel Castelo from Switzerland

I'm Online Chat Now

2.8'' RGB 240X320 Transmissive TFT LCD Module Panel

2.8'' RGB 240X320 Transmissive TFT LCD Module Panel
2.8'' RGB 240X320 Transmissive TFT LCD Module Panel 2.8'' RGB 240X320 Transmissive TFT LCD Module Panel

Large Image :  2.8'' RGB 240X320 Transmissive TFT LCD Module Panel

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: RoHS
Model Number: RYTPQ28NN08-02
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: $USD 2.58/pcs
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300,000 Piece/Pieces per Year
Detailed Product Description
Type: TFT Display Type: TFT LCD
Screen Size: 2.8'' Resolution: 240X3(RGB)X320
Outline (mm): 50.2(W) X 69.3 (H) X 4.0 (D) Active Area(mm): 43.2(H) X57.6 (V)
TP VA Size(mm): 96.04x54.86 Drive IC: LLI9341V
Pixel Arrangement: RGB-Veritical Stripe TP: 8-Wire CTP
Operation Temperature( ºC): -20º C~70ºC Storage Temperature (ºC): -30º C~80ºC
High Light:

Transmissive TFT LCD Module

,

240X320 TFT LCD Module

,

2.8'' RGB TFT LCD Panel

2.8'' RGB 240X320 Resolution Normally White Transmissive TFT LCD Module

PRODUCT DESCRIPTION
2.8 Inch TFT Display | RYTPQ28NN08-02

1. IPS or 12 o'clock display screen.
2. Customized :Logo,Touch Button,Silk-Printing,Mirror Cover Lens,Shape/Hole
3. Anti-Glare/Anti-Finger/ Anti-Reflective/Waterproof/Gloves Touch Available

4. Supply TFT/Touch Panel/touch display module(TFT+CTP)



Item Description
Model Name RYTPQ28NN08-02
Product type TFT LCD Module
Screen Size 2.8"
Aspect Ratio 4:3
Resolution 240X3(RGB)X320
LCM Size(mm) 50.2(W)X69.3(H)X4.9(D)
Active Area(mm) 43.2(H) X57.6 (V)
TP 8-Wire CTP
Drive IC Ili9341V
Operation Temperature( ºC) -20º C~70ºC
Storage Temperature (ºC) -30º C~80ºC





ABOUT US

Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.

More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.


2.8'' RGB 240X320 Transmissive TFT LCD Module Panel 0

2.8'' RGB 240X320 Transmissive TFT LCD Module Panel 1



OUR SERVICE ADVANTAGES



1. Small order would be accepted.

2. Mass production lead time would be guaranteed.

3. Each order will have 0.2%-0.5% spare.

4. Even customers do not have a cooperation with us, we also can provide technical services.

5. If mass production has any quality problem, customer can return it.

2.8'' RGB 240X320 Transmissive TFT LCD Module Panel 2

ACCESSORIES

Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!

2.8'' RGB 240X320 Transmissive TFT LCD Module Panel 3

FAQ



1. What is the MOQ?
Re: No MOQ for samples,different MOQ requirements for bulk order.



2. What about the delivery time?
Re: For standard product,1 week for samples,4 weeks for bulk order;
For customization,3-4 weeks for samples,4 weeks for mass production after sample confirmation.



3. Do you offer customization service?

Re: Yes,welcome OEM&ODM,please send us your requirements for assessment.



4. Is there any warranty for your products?
Re: Yes,we offer 12-month warranty for unartificial defect.



5. What is your payment method?
Re: We support make payment via TT/West Union/Paypal, 50%-100% deposit in advance and balance before shipping as order amount.
