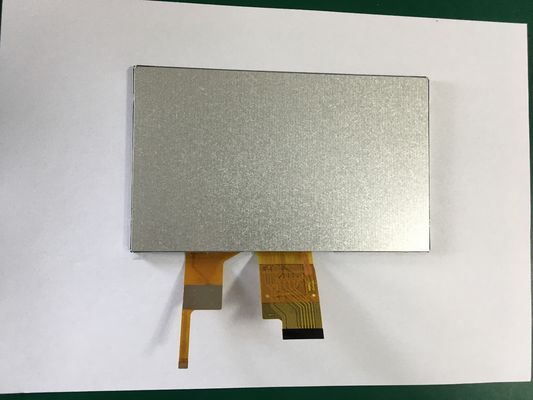

LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1

large.img.alt
small.img.alt small.img.alt

Large Image :  LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1

Product Details:
Place of Origin: China
Brand Name: Royal
Certification: RoHS
Model Number: AT070TNA2 V.1
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: $25.8/pcs
Packaging Details: 96pcs/carton
Delivery Time: 3-5 working days
Payment Terms: T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300,000 Piece/Pieces per Year
Detailed Product Description
Screen Size: 7" Resolution: 1024X3(RGB)X600
Interface: 40pin FPC, Parallel 24bit RGB Viewing Direction: Full Viewing Angle, ALL, 12 O'clock
Aspect Ratio: 16:9 Contrast Ratio: 500
Luminance(nits): 400 Application: Industrial Application
High Light:

IPS TFT Capacitive Lvds Display

,

1024X600 TFT Capacitive Lvds Display

,

AT070TNA2 V.1

Orginal Innolux 30 Pin LCD 7'' 1024X600 IPS Touchscreen TFT Capacitive Lvds Display


Module number AT070TNA2 V.1
Resolution 1024X600
Pixel pitch 0.05(W) × 0.15(H) mm
Active Area 153.6(W) × 90.0(H) mm
View angle R/L/U/D 75/75/70/75(Deg)
Pixel Arrangement RGB Vertical Stripe
Surface Treatment Anti-glare
Electrical Interface LVDS
Brightness 250(cd/m2)
Contrast ratio 500:01:00
Outline dimension 165.75(W) ×105.39(H) ×3.4(D) mm
Backlight LED
Response time 25(ms)
Display mode TN, Normally White, Transmissive
Operate temperature -30-85(°C)
Storage temperature -30-85(°C)
Display Colors 262k/16.7M(6 bit/ 6 bit + Dithering)
Power Consumption 1.90W(Typ.)
Power Supply Voltage 3.3v(Typ.)
Backlight lifetime 20k hrs(Min.)



Design your display: We have professional R&D team, who can develop, design and customize LCD/LCM for customers. OEM and ODM are welcomed. We have world advanced technology LCD/LCM manufacturing workshop, with certifications of ISO9001, ISO14001 and TS16949.



At present we have three series of special display, namely: wide temperature, high resolution, high brightness. This is a high-brightness display, it's brightness up to 1000 cd/m2 . At the same time, we also have the controller board, You can enjoy a one-stop shop.

LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1 0

ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1 1LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1 2
OUR SERVICE ADVANTAGES

1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
6. Got many good reviews from our customers.

FAQ


Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
Innolux 10.1 Inch 1280*800 IPS lcd module with hdmi driver board


Q: What about the delivery time?
A: The LCD products need 5-6 weeks to be made after receive deposit.



Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.


Q: What's your payment method?
A: We usually accept the payment methods include T/T, Western Union and Trade Assurance. 50-100% deposit in advance and balance before shipping upon the payment amount. Buyer can choose which payment ways that you accept.


Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.


Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.

LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1 3
