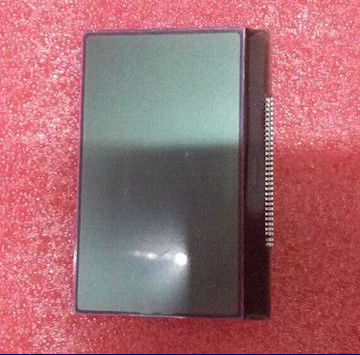

FSTN Positive Black Lcd Graphic Display 128x64 With SGS / ROHS Certificate

FSTN Positive Black Lcd Graphic Display 128x64 With SGS / ROHS Certificate
FSTN Positive Black Lcd Graphic Display 128x64 With SGS / ROHS Certificate FSTN Positive Black Lcd Graphic Display 128x64 With SGS / ROHS Certificate

Large Image :  FSTN Positive Black Lcd Graphic Display 128x64 With SGS / ROHS Certificate

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG12864
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: Graphic COG LCD Module RYG12864 Model No.: RYG12864
Dot Format: 128X64 Viewing Angle: 6 O' Clock
Operating Temp: -20º C~70º C LCD Type: FSTN Postive
Driver: ST7565R
High Light:

Lcd Graphic Display Module

,

Monochrome Graphic Display

Graphic COG LCD Module 128X64 Dots With ST7565R RYG12864 FSTN Positive Black On White

1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 128*64 dots Graphic LCD Module
Model No. RYG12864
Dot Format 128*64
Outline Dimension(mm) 77.4*52.4
Viewing Area(mm) 70*40
Pixel Size( mm) 0.52 x 0.48
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7565R
Power supply 3.3V
Interface Parallel
Operating Temp -30º C~70º C
Storage Temp -30º C~80º C



Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range



FSTN Positive Black Lcd Graphic Display 128x64 With SGS / ROHS Certificate 0

FSTN Positive Black Lcd Graphic Display 128x64 With SGS / ROHS Certificate 1
