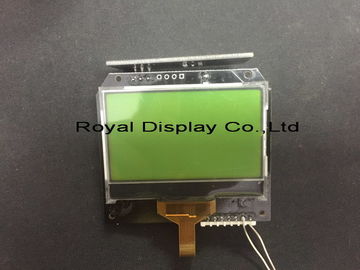

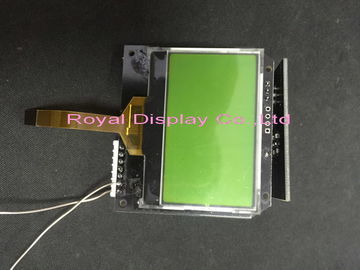

STN-Y/G Graphic Oled Display , Transflective Lcd Display 3.3V Power Supply

STN-Y/G Graphic Oled Display , Transflective Lcd Display 3.3V Power Supply
STN-Y/G Graphic Oled Display , Transflective Lcd Display 3.3V Power Supply STN-Y/G Graphic Oled Display , Transflective Lcd Display 3.3V Power Supply STN-Y/G Graphic Oled Display , Transflective Lcd Display 3.3V Power Supply

Large Image :  STN-Y/G Graphic Oled Display , Transflective Lcd Display 3.3V Power Supply

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG12864I-GYMWWN-C
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 9.5Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 500k/Month
Detailed Product Description
Product Name: COG Graphic LCD 128 X 64(RYG12864I-GYMWWN-C) Model No.: RYG12864I-GYMWWN-C
Dot Format: 128x64 Viewing Angle: 6 O' Clock
LCD Type: STN-Y/G LED Backlight: White
Driver IC: ST7567 Operating Temp: -20º C~70º C
Storage Temp: -30º C~80º C
High Light:

Lcd Graphic Display Module

,

Transflective Lcd Display

RYG12864I-GYMWWN COG Graphic LCD Module FSTN Positve 128*64 dots , 3.3V Power supply

  1. COG LCD Module
  2. Dots Format , 128x64
  3. Controller , ST7567 OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. Widely Use On Hand-held Device
  6. PIN SYMBOL
    1 /CS1
    2 /RES
    3 A0
    4 SCL
    5 SDA
    6 VDD
    7 VSS
    8 V0
    9 XV0
    10 VG

    STN-Y/G Graphic Oled Display , Transflective Lcd Display 3.3V Power Supply 0
