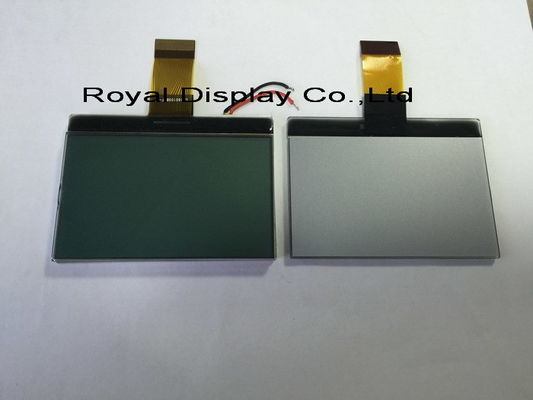

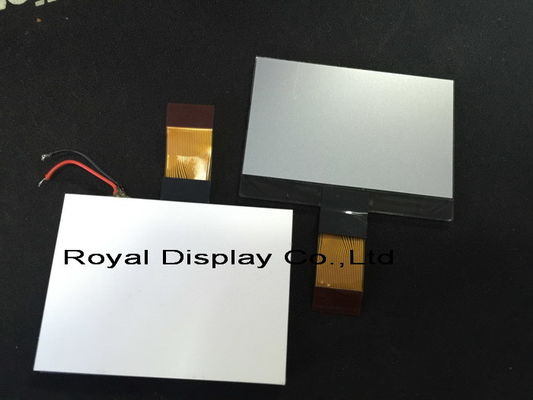

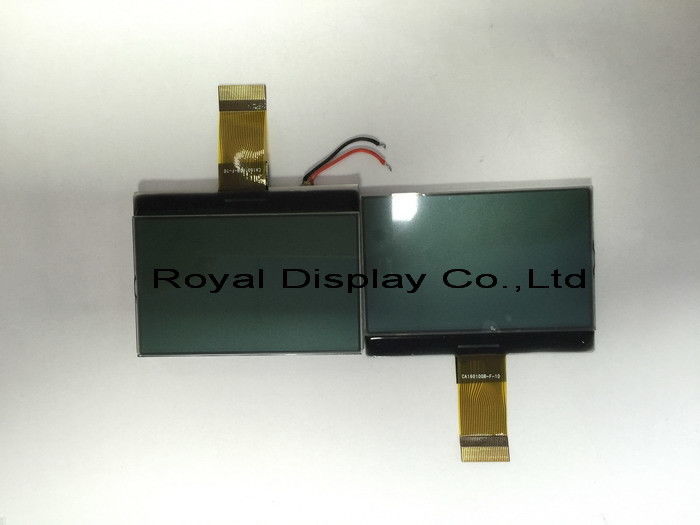

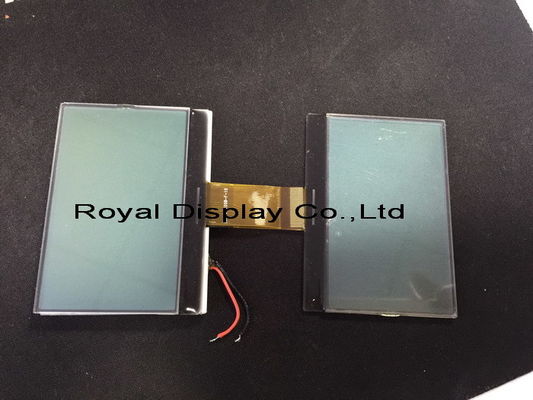

RYG160100B Graphic LCD Module FSTN Positive Black On White 160*100 Dots

RYG160100B Graphic LCD Module FSTN Positive Black On White 160*100 Dots
RYG160100B Graphic LCD Module FSTN Positive Black On White 160*100 Dots RYG160100B Graphic LCD Module FSTN Positive Black On White 160*100 Dots RYG160100B Graphic LCD Module FSTN Positive Black On White 160*100 Dots RYG160100B Graphic LCD Module FSTN Positive Black On White 160*100 Dots

Large Image :  RYG160100B Graphic LCD Module FSTN Positive Black On White 160*100 Dots

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG160100B
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: RYG160100B COG Graphic LCD Module FSTN Positive Black On White 160*100 Dots , 3.3V Power Supply Model No.: RYG160100B
Dot Format: 160x100 Viewing Angle: 6 O' Clock
LED Backlight: White Driver IC: ST7586S
Operating Temp: -20º C~70º C LCD Type: FSTN Postive
High Light:

Lcd Graphic Display Module

,

Transflective Lcd Display



RYG160100B COG Graphic LCD Module FSTN Positive Black On White 160*100 dots , 3.3V Power supply



  1. COG Graphic LCD Module
  2. Dots Format , 160x100
  3. Controller , ST7586S OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. LED Back Light , White , Red , Amber .
  6. Widely Use On Hand-held Device .
  7. CN1 SYMBOL CN1 SYMBOL
    1 GND 11~13 IF3~IF1
    2 VG 14 RST
    4 V0 15 RD
    5 VM 16~23 DB7~DB0
    6 VDD 24 WR
    7 VSS 25 A0
    8 VD1 26 GND
    9 VDD1
    10

    CS



    RYG160100B Graphic LCD Module FSTN Positive Black On White 160*100 Dots 0

Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range
