N-Pos COG Graphic LCD Module STN Gray RYG12864Z 128*64 dots , 3.3V Power supply

Name: N-Pos COG Graphic LCD Module STN Gray RYG12864Z 128*64 dots , 3.3V Power supply
Brand: ROYAL DISPLAY
SKU: RYG12864Z
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (185 reviews)

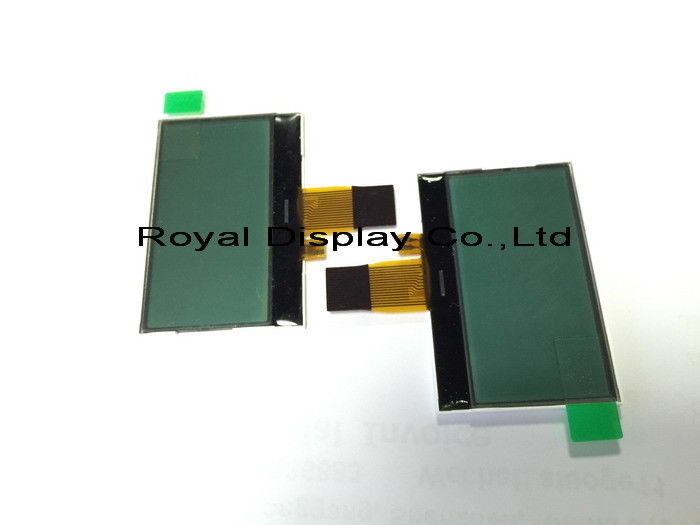

Large Image : N-Pos COG Graphic LCD Module STN Gray RYG12864Z 128*64 dots , 3.3V Power supply

Product Details:

Place of Origin:	CHINA
Brand Name:	ROYAL DISPLAY
Certification:	SGS ROHS
Model Number:	RYG12864Z

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Negotiable
Packaging Details:	420pcs/CTN 14Kg L45W36H32CM
Delivery Time:	25~28 Working Days
Supply Ability:	300k/Month

Contact Now

Detailed Product Description

Product Name:	N-Pos COG Graphic LCD Module STN Gray RYG12864Z 128*64 Dots , 3.3V Power Supply	Model No.:	RYG12864Z
Dot Format:	128x64	Viewing Angle:	6 O' Clock
LED Backlight:	White	Driver IC:	ST7567
High Light:	Lcd Graphic Display Module , Transflective Lcd Display

N-Pos COG Graphic LCD Module STN Gray RYG12864Z 128*64 dots , 3.3V Power supply

COG Graphic LCD Module
Dots Format , 128x64
Controller , ST7567 OR EQUIV
STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
LED Back Light , White , Red , Amber .
Used for N-Pos

CN1	SYMBOL	CN1	SYMBOL
1	TG-IN-1	10	D7(SDA)
2	TG-OUT-2	11	D6(SCL)
3	LED-A	12	A0
4	LED-K	13	RSTB
5	VG	14	CSB
6	XV0	15	TG-IN-2
7	V0		TG-OUT-2
8	VSS
9	VDD

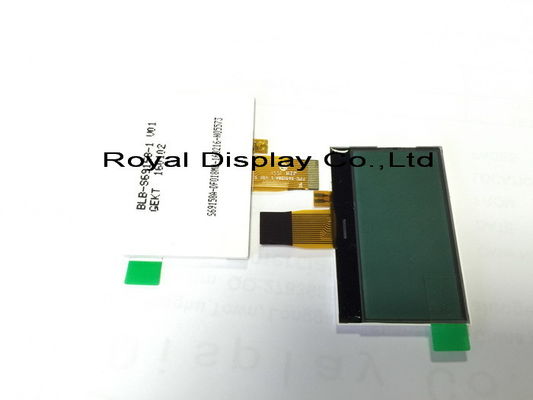

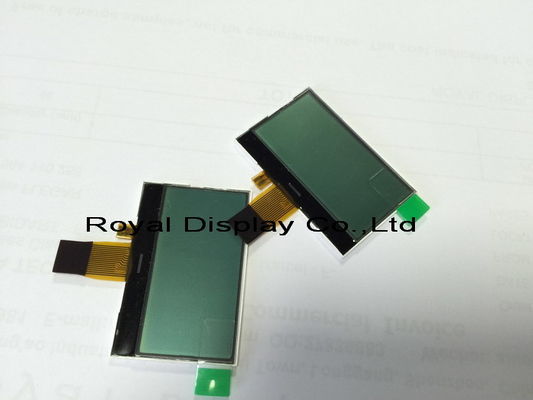

N-Pos COG Graphic LCD Module STN Gray RYG12864Z 128*64 dots , 3.3V Power supply 0

Typical Applications:

N-Pos Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range
