Product Details:
Payment & Shipping Terms:
|
| Resolution: | 128X32 | Display Color: | OLED(Blue/White) |
|---|---|---|---|
| Controller IC: | SSD1306 | Module Size (mm): | 30.0(W)X11.50(H)X1.2(D) |
| Active Area(mm): | 22.384(W)X5.584(H) | Drive Duty: | 1/32 |
| High Light: | 0.91 Inch OLED Display Module,128X32 OLED Display Module,HTN STN Monochrome OLED Display |
||
PRODUCT DESCRIPTION

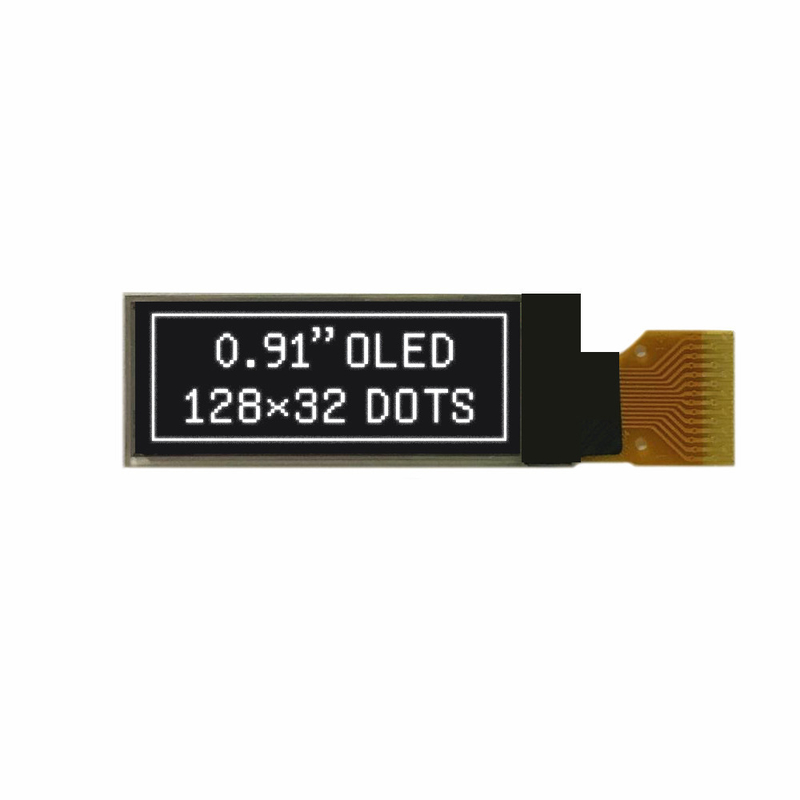

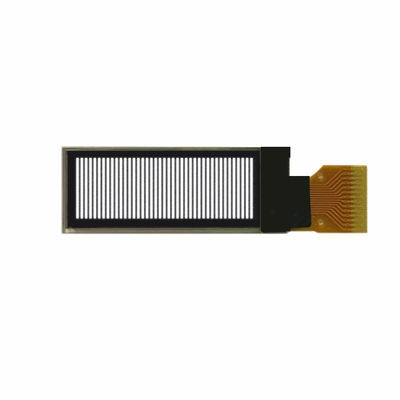

0.91'' 128x32 Monochrome OLED Display | RY-2832TSWFG02
Active Area: 22.384(W)X5.584(H)
Driver IC: SSD1306
| Item | Description |
| Dot Matrix | 128X32 |
| Driver IC | SSD1306 |
| Duty | 1/32 |
| Panel Pitch(mm) | 0.175(W)X0.175(H) |
| Panel Size(mm) | 0.159(W)X0.159(H) |
| Operating Temp. | -30°C~+70°C |
| Storage Temp. | -40°C~+80°C |
WHAT CAN WE CUSTOM?
1. LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2. Display form: LCD panel/COB/COG/COF
3. Polarizer: Transflective, Transmissive, Reflective
4. Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5. Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6. Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
APPLICATION
OLED display technology has the advantages of self illumination, wide viewing angle, almost infinite high contrast, low power consumption, high reaction speed and so on.
It is widely used in mobile phones, digital cameras, DVD players, personal digital assistants (PDAs), laptops, car audio and television. The OLED display is thin and light because it does not use backlight.
FAQ
Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.
Q: Can we visit your factory?
A: You are welcome to visit us.
Q: Can I have a sample order?
A: Yes. We warmly welcome the sample for you to test the quality.
Q: Where can l get the datasheet ?
A: When we get your inquiry, and tell us which one you need,we would send you immediately.
Q: Can we customize product? What cost will be included?
A: The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.
Q: What kind of packaging? The transport process will not be damaged?
A: Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.
