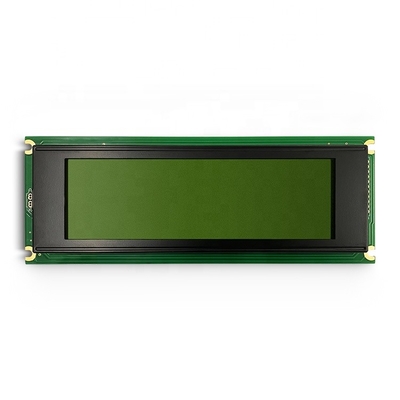

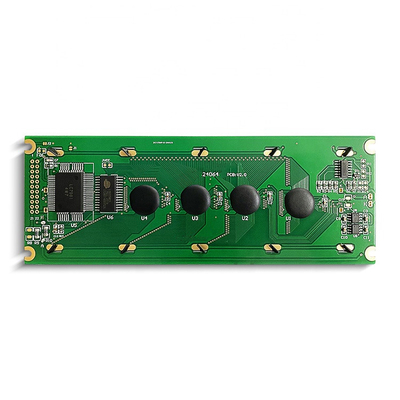

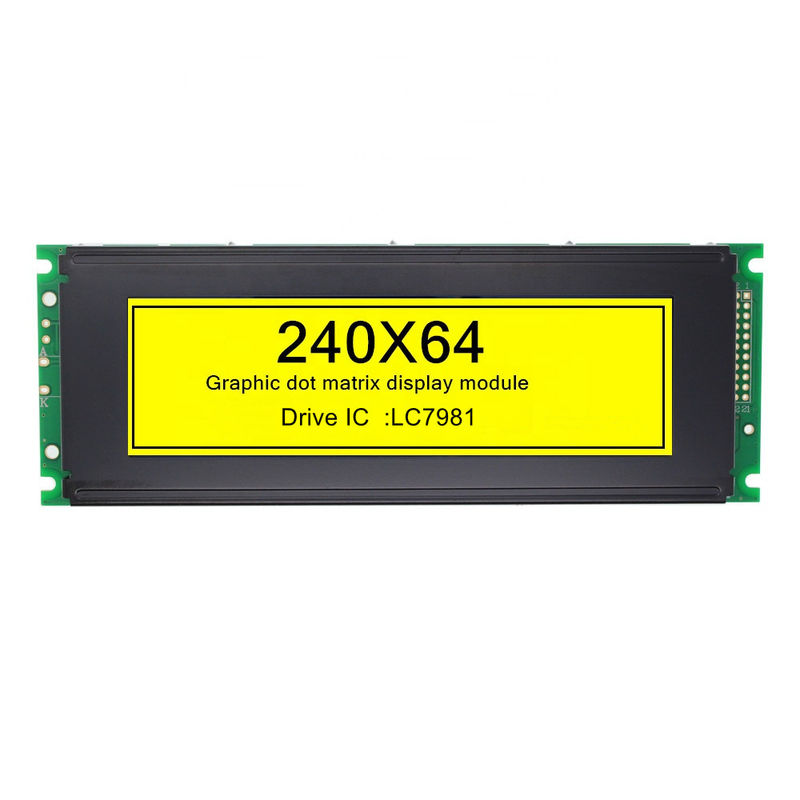

5.4 Inch Graphic Lcd Module Stn YG 240×64 Dots Monochrome Lcd Display

5.4 Inch Graphic Lcd Module Stn YG 240×64 Dots Monochrome Lcd Display
5.4 Inch Graphic Lcd Module Stn YG 240×64 Dots Monochrome Lcd Display 5.4 Inch Graphic Lcd Module Stn YG 240×64 Dots Monochrome Lcd Display 5.4 Inch Graphic Lcd Module Stn YG 240×64 Dots Monochrome Lcd Display

Large Image :  5.4 Inch Graphic Lcd Module Stn YG 240×64 Dots Monochrome Lcd Display

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ISO Rohs
Model Number: RYP24064B
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25~28 Working Days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300k/Month
Detailed Product Description
Product Name: 24064dots COB Lcd Display Model No.: RYP24064B
Display Size: 5.4" LCD Type: Graphic
Outline Dimensions: 180.0(W)*65.0(H)*12.5(D)mm Viewing Area: 132.6(W)*39.0(H)mm
Active Area: 127.16(W)*33.88(H)mm Backlight: Stn Yellow Green
High Light:

5.4 Inch Graphic Lcd Module

,

Stn YG Graphic Lcd Module

,

240×64 Dots Monochrome Lcd Display W

Graphic Lcd Module 5.4 Inch Stn YG 24064dots Monochrome Lcd Display With Backlight



PRODUCT DESCRIPTION



Item Description
Display Type 240*64dots Stn Lcd Display
Outline Dimensions 180.0(W)*65.0(H)*12.5(D)mm
Viewing Area 132.6(W)*39.0(H)mm
Active Area 127.16(W)*33.88(H)mm
Operating Temp -20º C~70ºC
Storage Temp -30º C~80º C





APPLICATION

More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.

5.4 Inch Graphic Lcd Module Stn YG 240×64 Dots Monochrome Lcd Display 0

FAQ

Q: Can you customize the product? what do you need?

A: The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.



Q: Can you provide drawings and related procedures?

A: We can provide drawings and procedures for customers to confirm.



Q: Can the LCD module be Export directly?

A: We have passed SGS,RoHS and other certifications, and can export.



Q: How do you manage product quality?

A: The products are baked, aging, electrical measurement and other procedures for testing.



Q: How long is the product warranty and service?

A: The product is valid for 1 year and is a lifetime technical support service.

5.4 Inch Graphic Lcd Module Stn YG 240×64 Dots Monochrome Lcd Display 1
