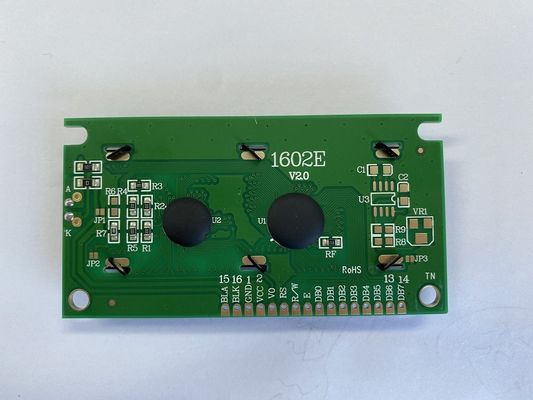

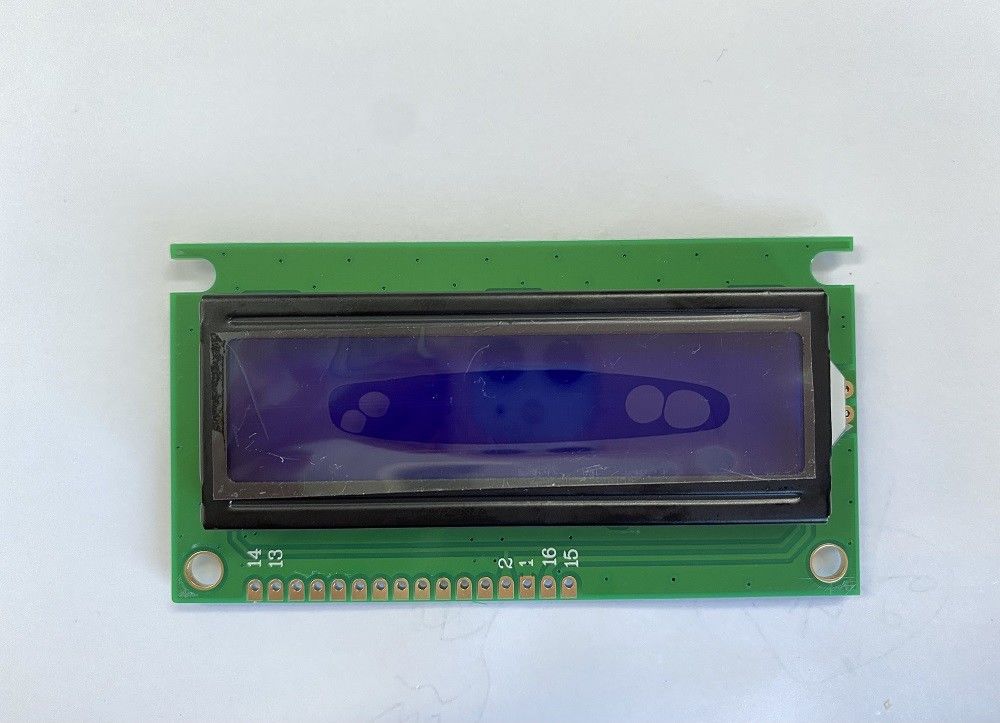

Cog FPC Character LCD Display St7066 LED Backlight With FFC Connector

Cog FPC Character LCD Display St7066 LED Backlight With FFC Connector
Cog FPC Character LCD Display St7066 LED Backlight With FFC Connector Cog FPC Character LCD Display St7066 LED Backlight With FFC Connector

Large Image :  Cog FPC Character LCD Display St7066 LED Backlight With FFC Connector

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYP1602D
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 16X2 Outline (mm): 84X 44X 9.5/13.5mm
Backlight: LED Yellow-Green/White Connection: Cog+FPC
Power Supply: 5V Interface: Parallel
View Angle Range: 6 O' Clock Connector: FFC-Connector
High Light:

Cog FPC Character LCD Display

,

FFC Connector Character LCD Display

,

LED Backlight Character LCD Panel


PRODUCT DESCRIPTION


Item Description
Product Name 16x2dots Graphic LCD Module
Model No. RYP1602D
Dot Format 16x2
Outline (mm) 84X 44 X 9.5/13.5
Viewing Area(mm) 62.2X17.9
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7066
Power supply 3.3V/5V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC





Character LCM

1>> Customer requirements can be customized


2>> Available for different modes such as yellow-green, blue and white color.


3>> Support characters: 8x2,16x1,16x2,16x4,20x4, ect..


4>> Customized for the total module including new size, backlight, color,


PCB circuit board. connection mode ect.

Application: DAB Radios,Stereos, Access Control, The Printer





OUR SERVICE ADVANTAGES

1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union,L/C, PayPal

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Warranty: Usually, product warranty for one year.

7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.





APPLICATIONS

Cog FPC Character LCD Display St7066 LED Backlight With FFC Connector 0

Cog FPC Character LCD Display St7066 LED Backlight With FFC Connector 1
