t Customizable LED Backlight Multicolor LED Blacklight Different Size/Types Available LCD Backligh

Name: t Customizable LED Backlight Multicolor LED Blacklight Different Size/Types Available LCD Backligh
Brand: Royal Display
SKU: RYB030PW06-A1
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (154 reviews)

Large Image : t Customizable LED Backlight Multicolor LED Blacklight Different Size/Types Available LCD Backligh

Product Details:

Place of Origin:	China
Brand Name:	Royal Display
Certification:	SGS ROHS
Model Number:	RYB030PW06-A1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Cartons, Capboard, EPE, Blister Tray
Delivery Time:	25~28 Working Days
Payment Terms:	Western Union, MoneyGram, T/T, L/C, D/A, D/P
Supply Ability:	500k/Month

Contact Now

Detailed Product Description

Blacklight:	White/ Green/ Red/Blue	Color:	Muti-Color
Pixel Pitch:	Customized	Certificate:	RoHS REACH
High Light:	FSTN Module LCD LED Backlight, P2.54 Connector LCD LED Backlight, RYB030PW06-A1

Description

Royal and started the product development, production, sales of LED backlight since 2007.

Our backlight widely used in control panel,dashboard, and other indicators with MONO LCD display

Tooling SMD LED Backlight with a Custom Mold

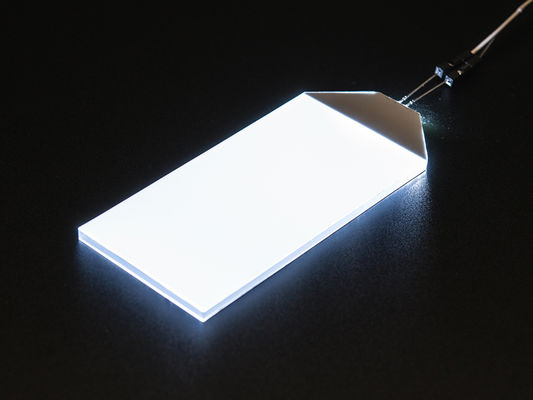

LED backlight is used to light LCD,so that LCD graphics can be seen clearly on the dark environment or at night.

Usually,The LED backlight that we said was side-LED backlight. Side-LED backlight can be separated into two types: SMD LED backlight and DIP LED backlight (direct insertion probe).

1.LED Backlight size: LED backlight size will be decided by LCD size. Usually,LED backlight should be longer than LCD,because LED backlight needs a 7-8mm covering area to covering LED.

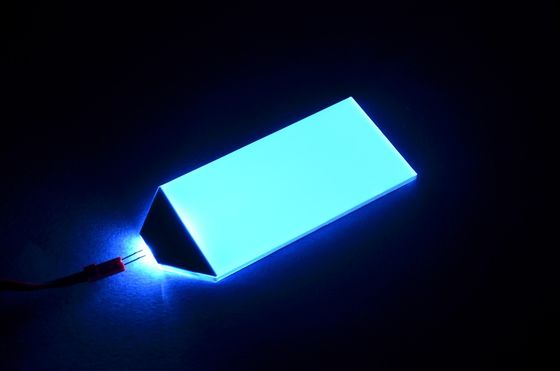

2.LED backlight color:

LED backlight colors just have white,blue,green,red,orange,amber,yellow and so on. All colors are confirmed by LED colors. You can't specify a special color or send us Pantone color, (Maybe there is no this kind of LED)
If LCD need kinds of colors,then you can use RGB LED backlight. But RGB LED color is not very pure.

3.Connector: pins.

Pin pitch 2.54mm,;Pin diameter 0.4mm.
Pins should be inserted into PCB holes ans solder them.

t Customizable LED Backlight Multicolor LED Blacklight Different Size/Types Available LCD Backligh 1

SMD LED backlight specifications:

SMD LED backlight means LEDs are bonded on the PCB.So it is necessary to make PCB mold

1) LED Backlight size: LED backlight size will be decided by LCD size. Usually,LED backlight should be longer than LCD,because LED backlight needs a 5-6mm covering area to covering LED.

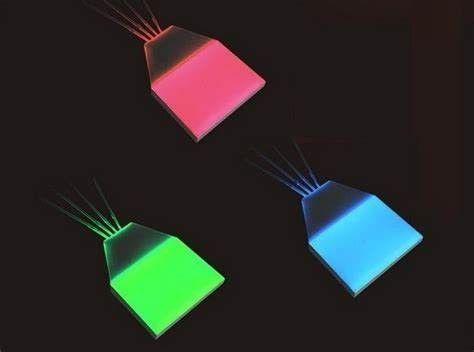

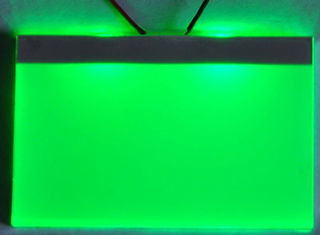

2)LED backlight color:
LED backlight colors just have white,blue,green,red,orange,amber,yellow and so on. All colors are confirmed by LED colors. You can't specify a special color or send us Pantone color,then ask us to follow it. (Maybe there is no this kind of LED)
If you need kinds of colors,then you can use RGB LED backlight. But RGB LED color is not very pure.

3)Connector:
Wires connection:solder wires on the PCB
PCB Pin connection:PCB pin should be inserted into PCB and solder it.

4)LED numbers:
If LED backlight size is very big,maybe it is necessary to use 2 LED,3 LED,4,5.........
If LED backlight is too long,we should install LED at both side of backlight.

5)LED voltage:
White LED,blue LED,green LED is 3.0-3.2V
Red LED,orange LED,yellow-green LED etc are 1.9-2.0V

APPLICATION
