| DOT Format: | 192X64 | Outline (mm): | 135X65 |
|---|---|---|---|
| IC Package: | Cog | Backlight Color: | White Color |
| Display Type: | FSTN | Power Supply: | 3.3V |
| Interface: | Parallel | View Angle Range: | No |
| Connector: | FFC-Connector | Viewing Direction: | 6:00 |
| High Light: | Stn Graphic LCD Graphic Module,ROHS FSTN Graphic LCD Module,FPC FSTN Lcd Display Module |
||

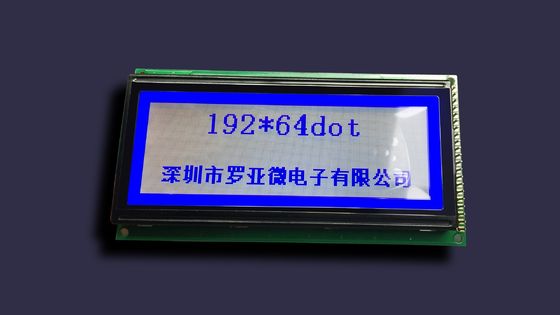

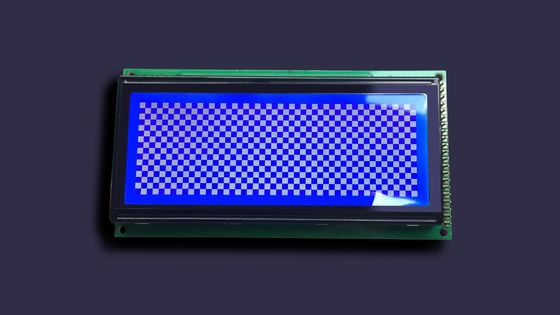

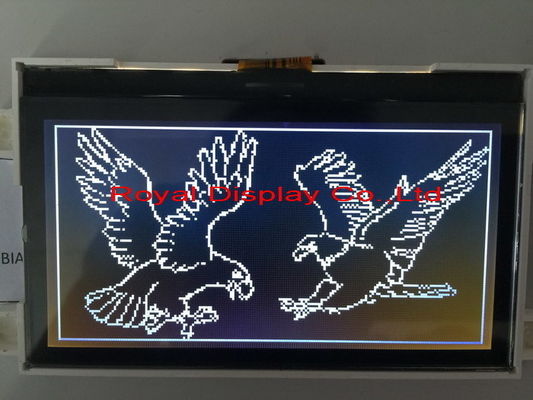

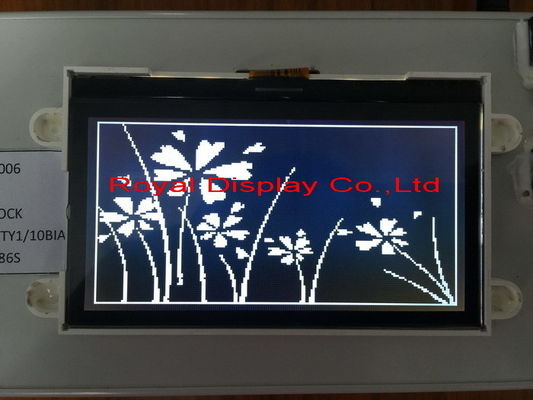

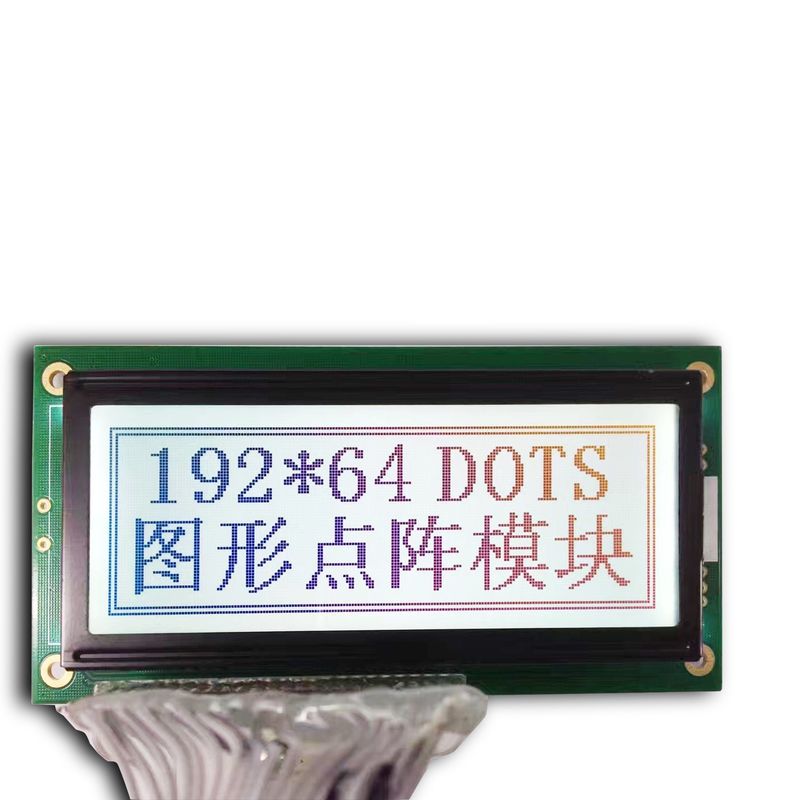

High contrast DFSTN white pixel black background COB COG LCD Display
PRODUCT DESCRIPTION
1. 192x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 192x64dots Graphic LCD Module |
| Model No. | RY19264 |
| Dot Format | 192x64 |
| Outline (mm) | 135*65 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7586S |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Our Advantages
1. More than 10 years experience, strong background in Monochrome LCD display design.
2. IATF16949:2016 and ISO9001:2015 certificated manufacture, provided all customized solutions.
3. Faster support in Front and After-sales services. Support customer from the product design.
Application
Graphic LCD Display
1>Customized according to client's requirement
1. Monochrome Custom-made Module in TN,HTN, STN, FSTN,VA Technologies
2. Available for different modes such as yellow-green, blue and black color.
3. Customized for the total module including new size, backlight, color, PCB circuit board. connection mode ect.
Application: Radio,Pos Machine, Medical Equipment, Household Devices,Telephone etc..
FAQ
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
Q:What certification could provide ?
A: There are RoHS/CE certificatons for raw materials. The products reach RoHS/CE standard. And they could be certified with RoHS/CE if the certifications are needed.
Q:Can you provide product drawings and test reports?
A:According to customer needs, our company can provide product related information and test reports.
Q.: What is your business type?
A: A: We design, produce and export our products.
