FPC Soldering 128x64 Dots matrix lcd module cog Positive LCD Display FSTN Air Conditioner Controller

FPC Soldering 128x64 Dots matrix lcd module cog Positive LCD Display FSTN Air Conditioner Controller
FPC Soldering 128x64 Dots matrix lcd module cog Positive LCD Display FSTN Air Conditioner Controller FPC Soldering 128x64 Dots matrix lcd module cog Positive LCD Display FSTN Air Conditioner Controller FPC Soldering 128x64 Dots matrix lcd module cog Positive LCD Display FSTN Air Conditioner Controller

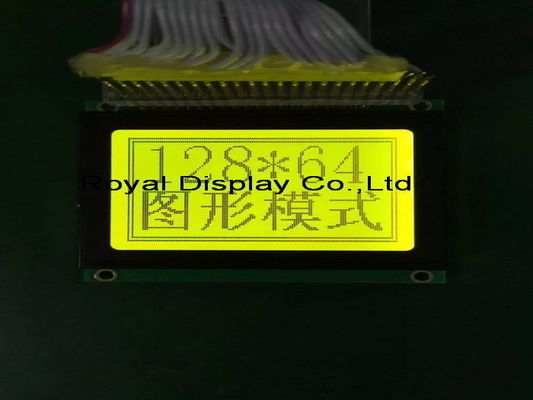

Large Image :  FPC Soldering 128x64 Dots matrix lcd module cog Positive LCD Display FSTN Air Conditioner Controller

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYG12864A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 128x64 Outline (mm): 41*35
Controller: ST7565R Backlight Color: White Or Amber LED Backlight
IC Package: Cog   Connection: FPC-Soldering
Operating Temp.: -20°C~+70°C    Storage Temp.: -30°C~+80°C
 Display Type: FSTN-Positive, STN-Gray Power Supply: 3V
Interface: Parallel Sunlight Readable: Yes
Connector: FPC Viewing Direction: 12:00
High Light:

128x64 Dots Positive LCD Display

,

FPC Soldering Positive LCD Display

,

FSTN 128 X 64 Graphic Lcd Display

Character Transflective 128x64 Lcd Display FSTN Positive COG Type


Product Description
1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option

Item Description
Product Name 128x64 dots Graphic LCD Module
Model No. RYG12864M
Dot Format 128x64
Outline (mm) 41*35
Viewing Area(mm) 12:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 12 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7565R
Power supply 3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC







OUR SERVICE ADVANTAGES
1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union.

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air

7, Warranty: Usually, product warranty for one year.

8, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.







Factory Process





FPC Soldering 128x64 Dots matrix lcd module cog Positive LCD Display FSTN Air Conditioner Controller 0





FPC Soldering 128x64 Dots matrix lcd module cog Positive LCD Display FSTN Air Conditioner Controller 1






ABOUT US

Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.

More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.



FPC Soldering 128x64 Dots matrix lcd module cog Positive LCD Display FSTN Air Conditioner Controller 2







The professional manufacturer of LCD, LCD module, and LED backlight
