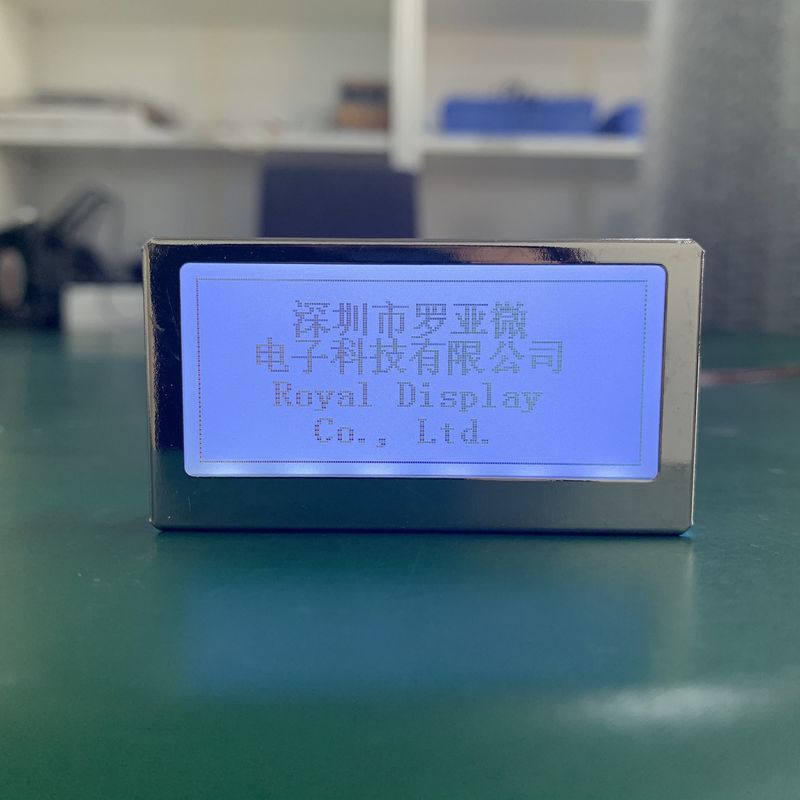

192X80 Monochrome LCD Display Module Graphic FSTN RYP19280A

192X80 Monochrome LCD Display Module Graphic FSTN RYP19280A
192X80 Monochrome LCD Display Module Graphic FSTN RYP19280A

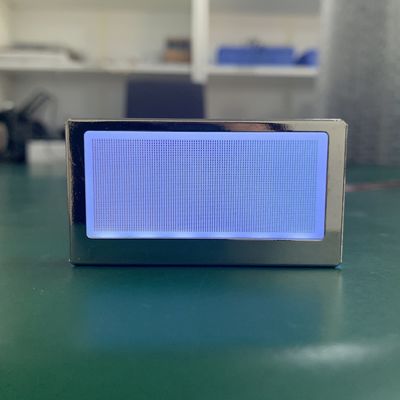

Large Image :  192X80 Monochrome LCD Display Module Graphic FSTN RYP19280A

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: ROHS
Model Number: RYP19280A
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: please contact us
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 150K/Month
Detailed Product Description
Display Type: FSTN Gray, Transflective, Positive Type: COB
Driver Method: 1/128duty 1/12bias Viewing Direction: 12 O'clck
Operating Temp.: -40℃~+70℃ Stroage Temp.: -40℃~+80℃
Customized: Available,OEM ODM Welcome Color: Mono,Custom
High Light:

192X80 Monochrome LCD Display Module

,

Graphic FSTN LCD Display Module

,

RYP19280A Lcd Panel Module

Graphic FSTN Gray 192x80 Monochrome LCD Module RYP19280A


PRODUCT DESCRIPTION


* RYP19280A is a liquid crystal display Module (LCM).

* It is composed of a Graphic LCD Display.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Item Description
Model No. RYP19280A
Display Type FSTN Gray, Transflective, positive
Outline (mm) 63.9*34.25*13.4mm
Viewing Angle 12 O' clock
Driver method 1/128duty 1/12bias
Operating Voltage 3.3V
Connector PCB
Operating Temp -40º C~70ºC
Storage Temp -40º C~80ºC


192X80 Monochrome LCD Display Module Graphic FSTN RYP19280A 0

Graphic LCDs

Graphic LCDs can display fully changeable graphics. It is a common option for applications that need to display many different menus or need the ability to display several different fonts and font sizes. In addition to the changing graphics, it also can provide optimal sunlight readability with low power consumption.


Features

Wide variety of off the shelf sizes and resolutions

Most products kept in stock and can ship same day

Ability to display fully changeable graphics

Sunlight readable

Low power consumption

Fully customizable

Graphic LCD Module, LCD display, 192x80 LCD module, LCD screen, COB LCD module, Monochrome LCD, Mono LCD display, Segment LCD display, Customized LCD Module, RYP19280A, LCD Module for Interver UPS
