3.3V COB Monochrome LCD Module Display FSTN Gray For Inverter UPS

3.3V COB Monochrome LCD Module Display FSTN Gray For Inverter UPS
3.3V COB Monochrome LCD Module Display FSTN Gray For Inverter UPS

Large Image :  3.3V COB Monochrome LCD Module Display FSTN Gray For Inverter UPS

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: ROHS
Model Number: RYP1286408
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: please contact us
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 150K/Month
Detailed Product Description
Display Type: FSTN Gray, Transflective, Positive Viewing Direction: 6 O'clck
Driver Method: 1/9duty 1/65bias Operating Temp.: -40℃~+70℃
Stroage Temp.: -40℃~+80℃ Customized: Available,OEM ODM Welcome
High Light:

COB Monochrome LCD Module Display

,

3.3V Monochrome LCD Module Display

,

FSTN Gray Lcd Panel Module

Customized FSTN COB Monochrome LCD Module for Interver UPS


PRODUCT DESCRIPTION


PRODUCT DESCRIPTION


* RYP1286408 is a liquid crystal display Module (LCM).

* It is composed of a LCD Display Module.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Item Description
Model No. RYP1286408
Display Type FSTN Gray, Transflective, positive
Outline (mm) 68*36.5*9.5mm
Viewing Angle 6 O' clock
Driver method 1/9duty 1/65bias
Operating Voltage 3.3V
Connector PIN
Operating Temp -40º C~70ºC
Storage Temp -40º C~80ºC

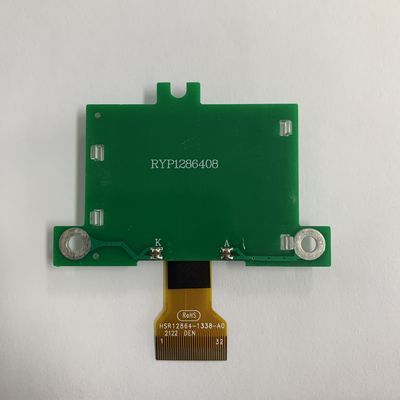

3.3V COB Monochrome LCD Module Display FSTN Gray For Inverter UPS 0

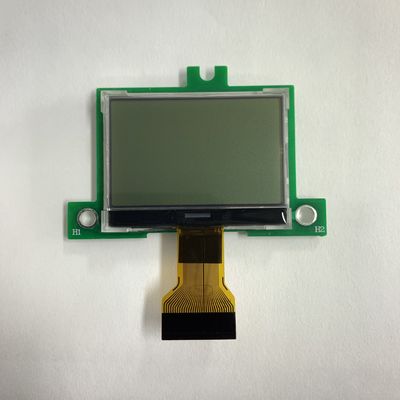

3.3V COB Monochrome LCD Module Display FSTN Gray For Inverter UPS 1

Designing Your Custom LCD

Royal Display Solutions has supported customers with custom LCD modules from automotive, medical and test equipment to industrial applications. Whether your design requires a small LCD, or a fully customized LCD module, our experienced technical customer support can assist you in designing your custom display.

The process begins with you supplying your dimensions and segment content/artwork. Our team will work with you and advise on the most practical design for your project. This includes the need for a power budget or a low current draw LCD. Design considerations for your customized LCD will include the type of interface, backlight options, power consumption, space constraints, touch panel options, half-life and more!

Custom LCD modules are a standard business practice for us. From the very simple modifications of an existing display to complete new product designs, we welcome your request.

Graphic LCD Module, LCD display, 128x64 LCD module, LCD screen, COB LCD module, Monochrome LCD, Mono LCD display, Segment LCD display, Customized LCD Module, RYP1286408, LCD Module for Interver UPS
