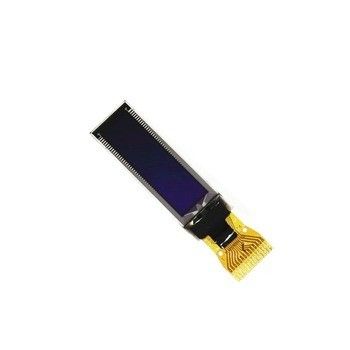

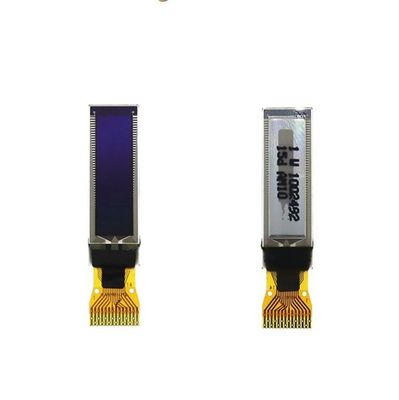

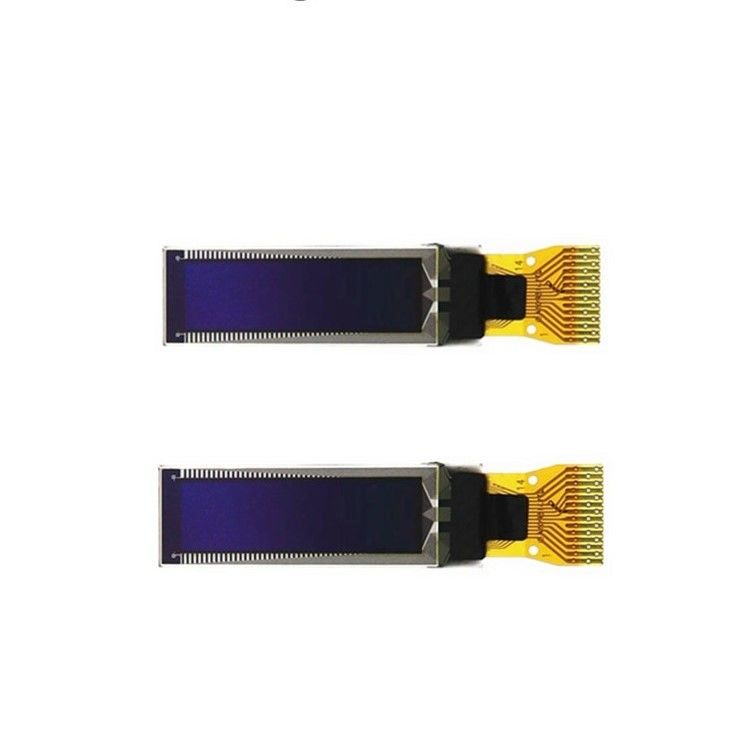

Small Size 0.86 Inch Mono OLED Display Module 14 Pin SSD1316 With 96X32 dot matrix Pixels

Small Size 0.86 Inch Mono OLED Display Module 14 Pin SSD1316 With 96X32 dot matrix Pixels
Small Size 0.86 Inch Mono OLED Display Module 14 Pin SSD1316 With 96X32 dot matrix Pixels Small Size 0.86 Inch Mono OLED Display Module 14 Pin SSD1316 With 96X32 dot matrix Pixels Small Size 0.86 Inch Mono OLED Display Module 14 Pin SSD1316 With 96X32 dot matrix Pixels

Large Image :  Small Size 0.86 Inch Mono OLED Display Module 14 Pin SSD1316 With 96X32 dot matrix Pixels

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY-9632TSWZG02
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
Resolution: 96X16 Display Color: Blue/ White
Controller IC: SSD1316 Interface: I2c Port
High Light:

0.86 Inch Mono OLED Display Module

,

96X32 Pixels OLED Display Module

,

SSD1316 OLED LCD Display

PRODUCT DESCRIPTION

96x32 Graphic OLED Display | RY-9632TSWZG02

Module size: 29.1x9.2x1.2mm

Driver: SSD1316

Blue/ white Pixels, 8-bit Parallel; I2C; Wide Temp (-40° to +70° operating/-40° to +85° storage), 3.3~4.2V OLED, RoHS Compliant.



Model Number RY-9632TSWZG02
Resolution 96*32
Display color White/Blue
Drive Duty 1/32 Duty
Dot Patch 0.22*0.19mm
Controller IC SSD1316
Outline Dimensions 29.1x9.2x1.2mm
Active Area 21.1x6.06mm
Interface IIC port
Pixel Size 0.2*0.17mm
Operating Temp. -20°C~+70°C
Storage Temp. -30°C~+80°C
Number of pins 14 pin




MORE INFORMATION ABOUT OLED DISPLAY

0.84 inch OLED Arduino is very popular application for the 0.84 inch OLED displays, it is also known for 0.84 inch OLED I2C Display. If need Arduino 0.84 inch OLED I2C example, you can buy the I2C 0.84 inch OLED Display Module to test at first, you can check the 0.84 inch OLED datasheet above, and we can provide the 0.84 inch OLED I2C Arduino library for your projects.

Small Size 0.86 Inch Mono OLED Display Module 14 Pin SSD1316 With 96X32 dot matrix Pixels 0



OLED Display

Small Size 0.86 Inch Mono OLED Display Module 14 Pin SSD1316 With 96X32 dot matrix Pixels 1







Small Size 0.86 Inch Mono OLED Display Module 14 Pin SSD1316 With 96X32 dot matrix Pixels 2







OLED Display

1. Feature: oled self-luminous, low power, without backlight,

2. Application: sports bracelets, Watches,Handheld Devices,Electronic tages

3. Thin (no backlight required)

4. Uniform brightness

5. Wide operating temperature range (solid-state devices with electro-optical properties that are independent of temperature)

6. deal for video with rapid switching times (μs)

7. High contrast (>2000:1)

8. Wide viewing angles (-180°) with no gray inversion

9. Low power consumption

10. Free consulting and 24x7 technical supported



FAQ:

Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.



Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.



Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.



Q:What certification could provide ?
A: There are RoHS/CE certificatons for raw materials. The products reach RoHS/CE standard. And they could be certified with RoHS/CE if the certifications are needed.



Q:Can you provide product drawings and test reports?
A:According to customer needs, our company can provide product related information and test reports.



Q.: What is your business type?
A: A: We design, produce and export our products.



Q: Where is your main market?
A: We sell and ship our products all over the world. Our main market is Europe,North America and Asia.
