Product Details:
Payment & Shipping Terms:
|
| Product Type: | TFT LCD | Resolution: | 800X3(RGB)X480 |
|---|---|---|---|
| Module Size(mm): | 192.8(W) X 116.9(H) X 6.4(D) Mm | Active Area(mm): | 176.64(W) X 99.36(H) Mm |
| Display Mode: | Normally White, Transmissive | Interface: | Digital (Ttl) |
PPRODUCT DESCRIPTION

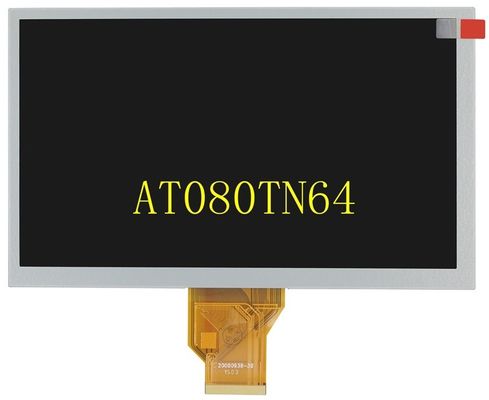

AT080TN64 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×6.7(D) mm, viewing area size of 180.1(W)×103.4(H) mm, with surface treament of Antiglare, net weight of 245g (Typ.).
| Panel Brand | INNOLUX |
| Model Number | AT080TN64 |
| Driver element | a-Si TFT-LCD , Panel |
| Panel Size | 8.0 inch |
| Resolution | 800*480 |
| Display Mode | Normally White, Transmissive |
| Surface Treatment | Antiglare |
| Dot pitch | 0.0736(W) X 0.2070(H) mm |
| Active area | 176.64(W) X 99.36(H) mm |
| Module size | 192.8(W) X 116.9(H) X 6.4(D) mm |
| Color arrangement | RGB-stripe |
| Interface | Digital (TTL) |
| Backlight power consumption | 2.232 W (Typ) |
| Panel power consumption | 0.226W (Typ.) |
|
Source-IC
Gate-IC
|
NT39419BH-D/4ID
NT52001H-D/4IC
|
| Driving methods | 1+2 dot |
| Weight | 245g |
MORE INFORMATION ABOUT OLED DISPLAY
0.84 inch OLED Arduino is very popular application for the 0.84 inch OLED displays, it is also known for 0.84 inch OLED I2C Display. If need Arduino 0.84 inch OLED I2C example, you can buy the I2C 0.84 inch OLED Display Module to test at first, you can check the 0.84 inch OLED datasheet above, and we can provide the 0.84 inch OLED I2C Arduino library for your projects.
PRODUCT APPLICATION
Our 0.96 inch OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.
OUR SERVICE ADVANTAGES
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
6. Got many good reviews from our customers.
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
