640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3

640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3
640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3 640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3 640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3 640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3

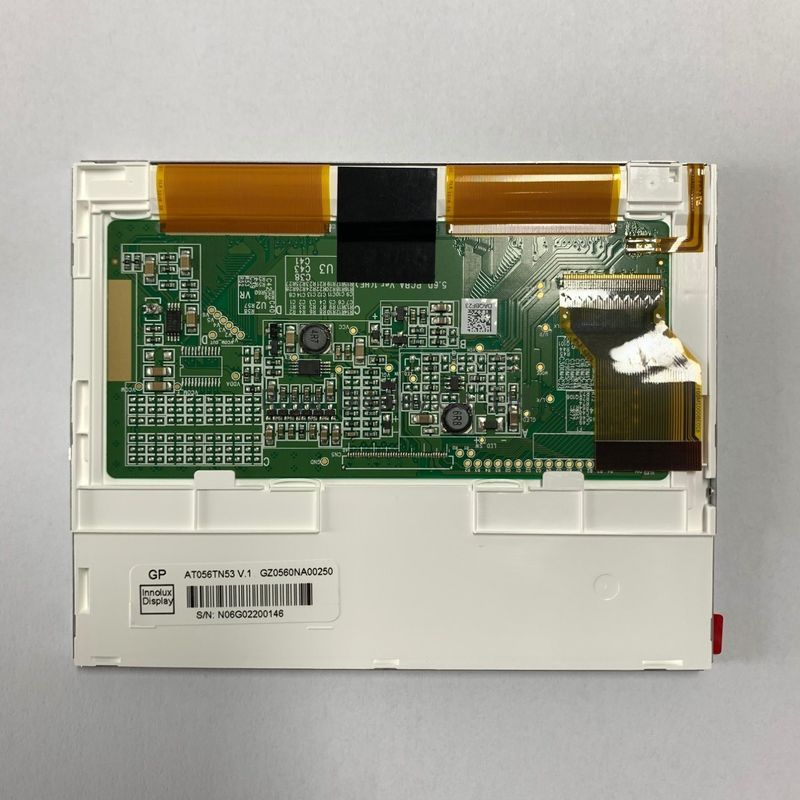

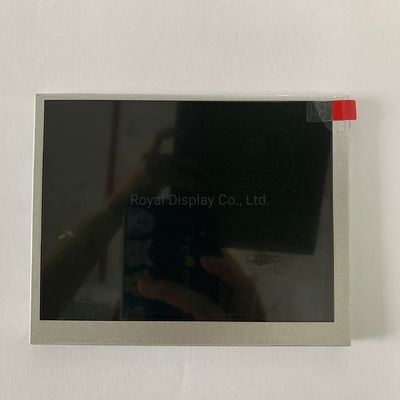

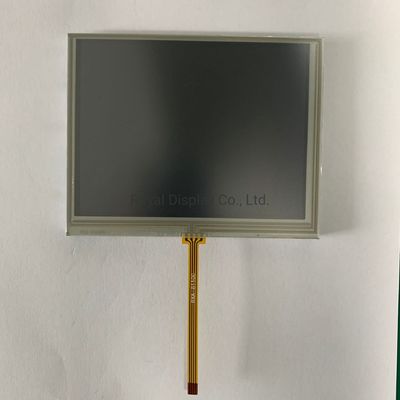

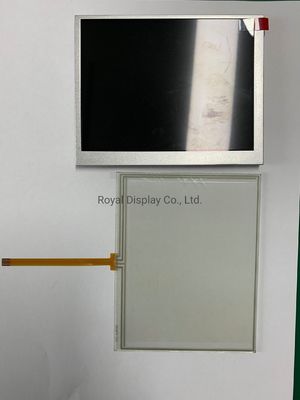

Large Image :  640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: AT056TN52 V. 3
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 16.59-18.9
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
Product Type: TFT LCD Resolution: 640X3(RGB)X480
Module Size(mm): 126.5 X 100.0 X 5.7 Active Area(mm): 153.6(W) × 90.0(H) mm
Viewing Angle: 50/70/70/70 Interface: 50pin FPC, Parallel 24bit RGB
 Certificate: Ce, RoHS, SGS Operating Temp.: -20°C~+70°C
   Storage Temp.: -30°C~+80°C
High Light:

5.6 Inch TFT LCD Panel

,

640X480 TFT LCD Panel

,

STN FPC Lcd Screen Module

Original Innolux At056tn52 V.3 5.6 Inch TFT LCD Screen Display Panel with 640X480

Innolux's employees worldwide number more than 60,000, and its production sites and sales locations span the global.
With its major TFT plants located in Zhunan and Tainan, both in Taiwan, Innolux has also established overseas
module plants in the Chinese cities of Ningbo, Nanjing, Foshan, and Shanghai. Innolux's extensive global presence allows it to quickly provide a full range of services to its customers, reducing logistics and manpower costs, while achieving the environmental objectives of energy conservation and reduced carbon emissions. Innolux's unique intelligent management platform has not only enhanced the company's management capabilities, but also provides customers with prompt, accurate delivery information.
This is just one of the ways we are constantly striving to boost customer satisfaction.



PRODUCT DESCRIPITION



Panel Brand INNOLUX
Panel Model AT056TN53
Panel Type a-Si TFT-LCD , Panel
Panel Size 5.6 inch
Resolution 640*480
Display Mode STN, Normally Black, Transmissive
Surface Antiglare
Brightness 350:1 (Typ.)
Contrast Ratio 500:1 (Typ.)
Display Colors 262K (6-bit) , CIE1931 50%
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type WLED
Signal Interface Parallel RGB (1 ch, 6-bit) , 40 pins





Advantages:

1. ODM/OEM : Customized LCD Display



2. Warranty service: 12months warranty for all products



3. Rich experience: LCD business over 10 years



4. Reasonable price with high quality: Factory price



5. Self-owned factory: 2000 square meter factory



​​



Applications

640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3 0



640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3 1







Factory Facilities



640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3 2







ABOUT US
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.

More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.



640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3 3







640X480 5.6 Inch TFT LCD Panel STN FPC Innolux At056tn52 V. 3 4
