High Brightness LCD Panel LVDS 1024x600 High Brightness LCD Panel 1.90W 7.0'' TFT

High Brightness LCD Panel LVDS 1024x600 High Brightness LCD Panel 1.90W 7.0'' TFT
High Brightness LCD Panel LVDS 1024x600 High Brightness LCD Panel 1.90W 7.0'' TFT High Brightness LCD Panel LVDS 1024x600 High Brightness LCD Panel 1.90W 7.0'' TFT

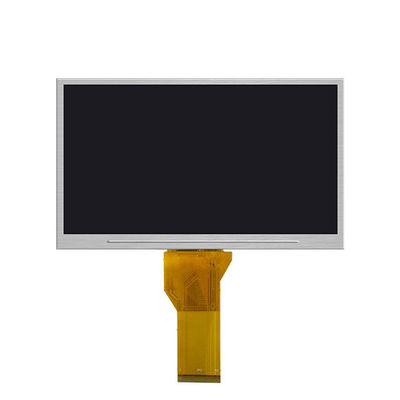

Large Image :  High Brightness LCD Panel LVDS 1024x600 High Brightness LCD Panel 1.90W 7.0'' TFT

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: AT070TNA2 V. 1
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
Product Type: TFT LCD Resolution: 1042X3(RGB)X600
Active Area(mm): 153.6(W) × 90.0(H) mm Surface Treatment: Anti-Glare
Electrical Interface: Lvds Name: High Brightness LCD Panel
High Light:

LVDS High Brightness LCD Panel

,

1024x600 High Brightness LCD Panel

,

1.90W Touch Screen LCD Panel

7.0'' TFT Resolution 1024*600 High Brightness LCD Display with Touch Screen

Innolux's employees worldwide number more than 60,000, and its production sites and sales locations span the global.
With its major TFT plants located in Zhunan and Tainan, both in Taiwan, Innolux has also established overseas
module plants in the Chinese cities of Ningbo, Nanjing, Foshan, and Shanghai. Innolux's extensive global presence allows it to quickly provide a full range of services to its customers, reducing logistics and manpower costs, while achieving the environmental objectives of energy conservation and reduced carbon emissions. Innolux's unique intelligent management platform has not only enhanced the company's management capabilities, but also provides customers with prompt, accurate delivery information.
This is just one of the ways we are constantly striving to boost customer satisfaction.





Module number AT070TNA2 V.1
Resolution 1024X600
Pixel pitch 0.05(W) × 0.15(H) mm
Active Area 153.6(W) × 90.0(H) mm
View angle R/L/U/D 75/75/70/75(Deg)
Pixel Arrangement RGB Vertical Stripe
Surface Treatment Anti-glare
Electrical Interface LVDS
Brightness 250(cd/m2)
Contrast ratio 500:01:00
Outline dimension 165.75(W) ×105.39(H) ×3.4(D) mm
Backlight LED
Response time 25(ms)
Display mode TN, Normally White, Transmissive
Operate temperature -30-85(°C)
Storage temperature -30-85(°C)
Display Colors 262k/16.7M(6 bit/ 6 bit + Dithering)
Power Consumption 1.90W(Typ.)
Power Supply Voltage 3.3v(Typ.)
Backlight lifetime 20k hrs(Min.)

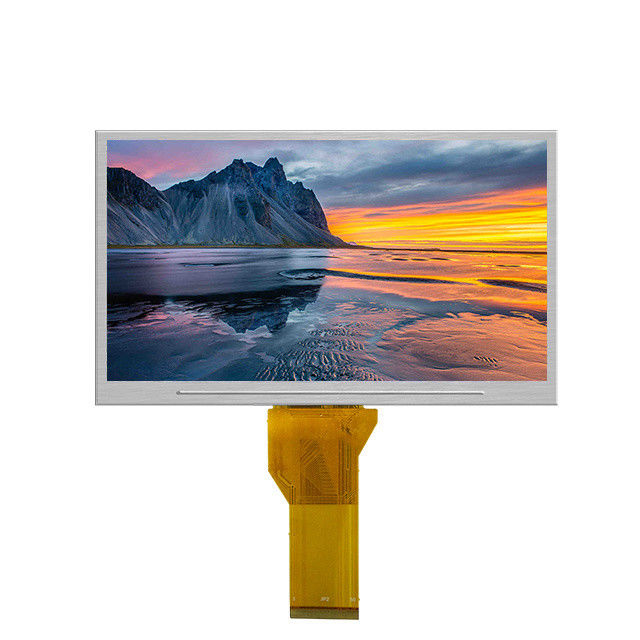

High Brightness LCD Panel LVDS 1024x600 High Brightness LCD Panel 1.90W 7.0'' TFT 0





OUR SERVICE ADVANTAGES



TFT Advantages

1.High quality of TFT LCD screens.



2.The visible area of TFT LCD screens is large.



3.TFT LCD screens have a wide range of applications.



4.TFT LCD screens have no electromagnetic radiation.



5.TFT LCD screens digital interface.



6.TFT LCD screens "figure" symmetrical and small.



7. The effect of TFT LCD screens is good



8. Low power consumption of TFT LCD screens





APPLICATIONS



Our products can be widely used in telecommunication devices, consumer products, telecommunication devices, technical equipment, office automation, home appliances, automobile, it products, medical equipment and other fields.





High Brightness LCD Panel LVDS 1024x600 High Brightness LCD Panel 1.90W 7.0'' TFT 1



High Brightness LCD Panel LVDS 1024x600 High Brightness LCD Panel 1.90W 7.0'' TFT 2









FAQ



Q: How long can I get reply?
A: Within 24 hours. Chinese working time 9:00-18:00 Monday-Friday online service to help you solve problems.Also reply by phone is possible at night time and weekends



Q: Can we customize the product? What cost will be included?
A: The product can be customized, but the TFT LCD module has different tooling cost, which includes FPC, Touch Screen, Backlight, Bezel, and so on.



Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS / FEDEX/TNT, or ship the goods to your HK or Shenzhenforwarder.



Q: What kind of packaging? The transport process will not be damaged?
A: Our products are divided into two categories, small-medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and straps to ensure the safety of material transportation.
