| Product Type: | TFT LCD | Drive IC: | St7789V2 |
|---|---|---|---|
| Resolution: | 1042X3(RGB)X600 | Active Area(mm): | 153.6(W) × 90.0(H) mm |
| Surface Treatment: | Anti-Glare | Electrical Interface: | Lvds |
| High Light: | IPS I2c TFT LCD Display,1024x600 TFT LCD Display,CTP Lcd Monitor Module |
||

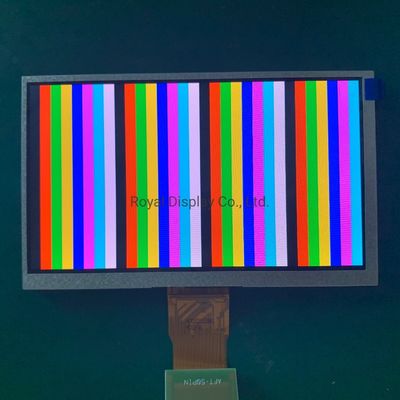

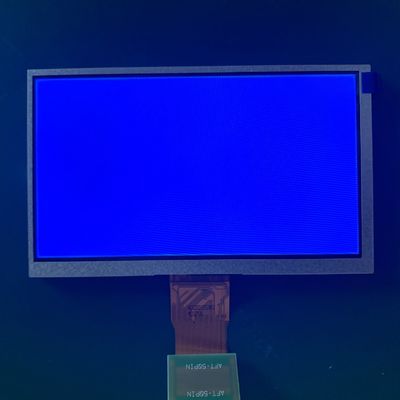

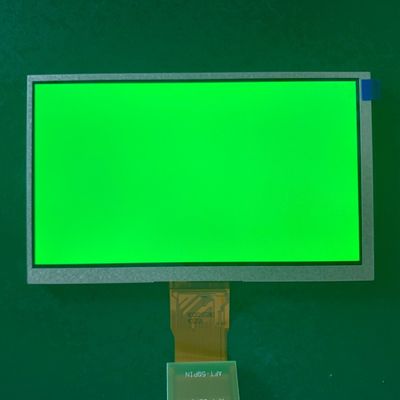

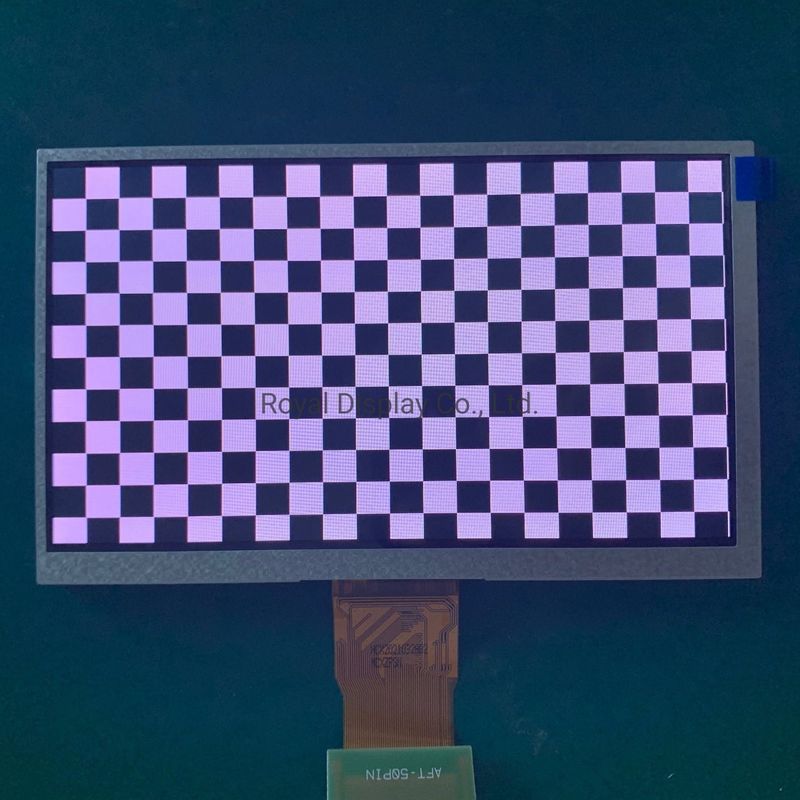

RYT0700CIW02-01 is a TM (Transmissive) type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit and a back-light unit. The resolution of a 7.0" contains 1024RGBx600 dots. The following table described the features of RYT0700CIW02-01
|
Size
|
7.0 inch
|
|
Operating Temperature
|
-20ºC ~ 70ºC
|
|
Storage Temperature
|
-30ºC ~ 80ºC
|
|
Outline Dimension
|
165.00(W)x100.00(H)x7.73(D) mm
|
|
Viewing Area
|
154.88(W)x86.72(H) mm
|
|
Active Area
|
154.08(W)x85.92(H) mm
|
|
Support Systems
|
Windows/Android/Linux etc.
|
|
Warranty
|
1 year
|
|
PCAP Interface Type
|
LVDS
|
|
Structure
|
G+G
|
|
Display Model
|
Normally black/Transmissive
|
|
Resolution
|
1024X600
|
|
TFT Interface Type
|
RGB(50 pins) / HDMI / VGA
|
|
Luminance
|
500 cd/m²
|
