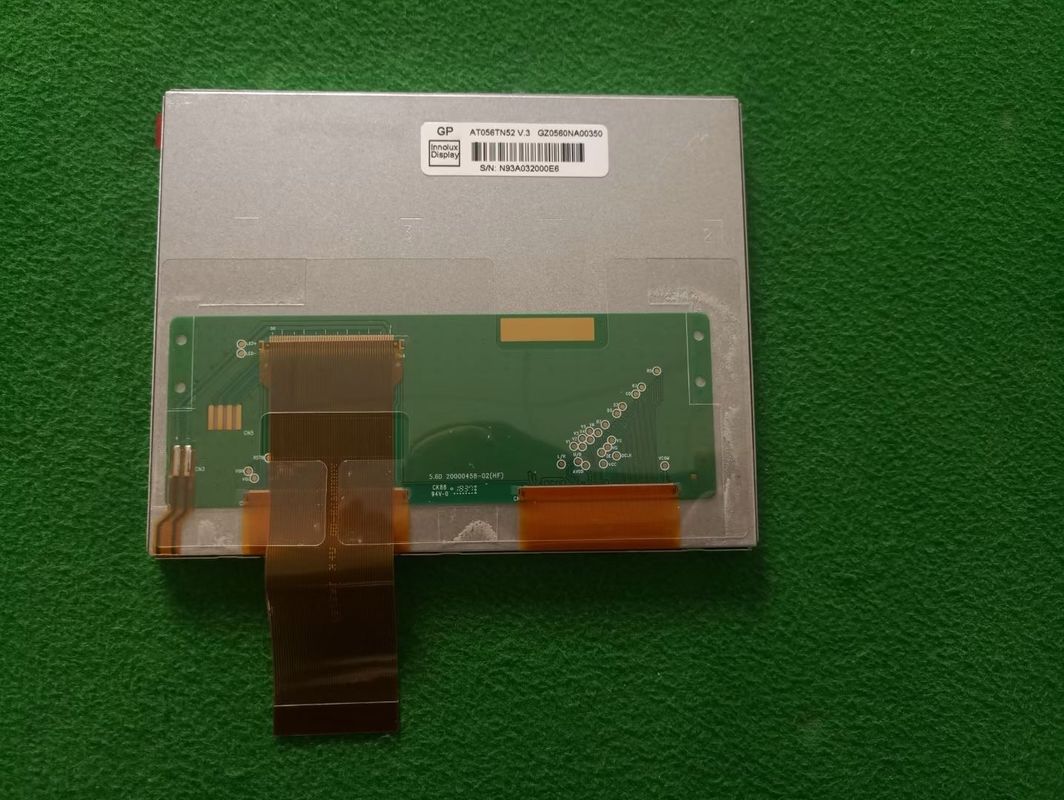

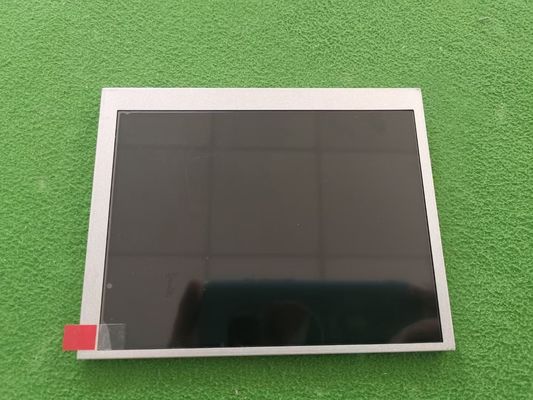

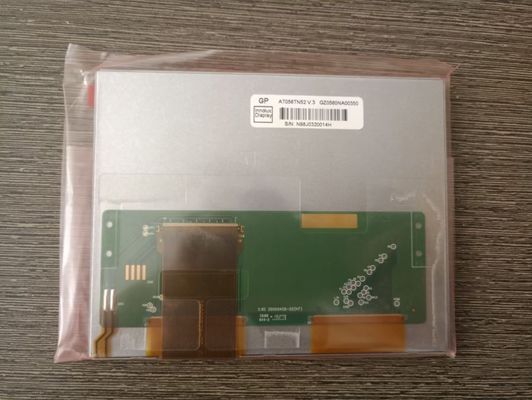

Transmissive 5.6 Inch TFT LCD Panel Module At056tn52 V.3 Innolux

Name: Transmissive 5.6 Inch TFT LCD Panel Module At056tn52 V.3 Innolux
Brand: INNOLUX
SKU: INNOLUX
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (106 reviews)

Large Image : Transmissive 5.6 Inch TFT LCD Panel Module At056tn52 V.3 Innolux

Product Details:

Place of Origin:	CHINA
Brand Name:	INNOLUX
Certification:	ROHS

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Negotiable
Packaging Details:	Standard Packaging
Delivery Time:	25~30days
Supply Ability:	2000pcs per month

Contact Now

Detailed Product Description

Model Number:	At056tn52 V.3	Product Name:	Innolux At056tn52 V.3 LCD Panel
Resolution:	640X3(RGB)X480	Display Mode:	Normally White, Transmissive
Module Size(mm):	126.5(W) X100(H) X5.7(D) Mm	Active Area(mm):	112.896 (W)X4.672(H) Mm
High Light:	5.6 Inch TFT LCD Panel Module , 143 PPI TFT LCD Panel Module , At056tn52 V.3 Innolux Automotive LCD Panel

5.6 Inch At056tn52 V.3 Innolux LCD Panel Automotive TFT LCD Display

PRODUCT DESCRIPITION

Panel Size	5.6 inch
Dot Resolution	640(RGB)×480 (VGA)
Pixel Configuration	RGB Vertical Stripe
Pixel Density	143 PPI
Aspect Ratio	4:3 (H:V)
Form Factor	Flat Rectangle Display
Dot Pitch	0.0588×0.1764 mm (H×V)
Pixel Pitch	0.1764×0.1764 mm (H×V)
Weight	127.5g (Typ.)
Surface	Antiglare
Active Area	112.896×84.672 mm (H×V)
Bezel Area	115.70×87.47 mm (H×V)
Outline Dimension	126.5×100 mm (H×V)
Outline Depth	5.7±0.3 mm
Landscape or Portrait	Landscape type
Touch Panel	Without

APPLICATION OF CHIMEI INNOLUX AT056TN52 V.3

1. Automotive Application

2. Industrail Security

3. Intelligent Interaction

4. Smart Home Appliances

5. Digital Signage
