Product Details:
Payment & Shipping Terms:
|
| Product Type: | TFT LCD | Resolution: | 320X3(RGB)X240 |
|---|---|---|---|
| Module Size: | 50.2(W)X69.3(H)X4.9(D) | Active Area(mm): | 43.2(H) X57.6 (V) |
| Outline Dimension(mm): | 50.2(W) X 69.3 (H) X 4.0 (D) | Pixel Arrangement: | RGB-Veritical Stripe |
| Tp: | 8 Wire CTP | Drive IC: | Ili9341V |
| High Light: | 240x320 TFT LCD Display,2.8 Inch TFT LCD Display,8 Wire CTP Lcd Monitor Module |
||

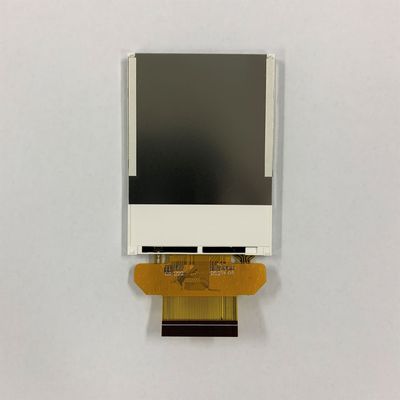

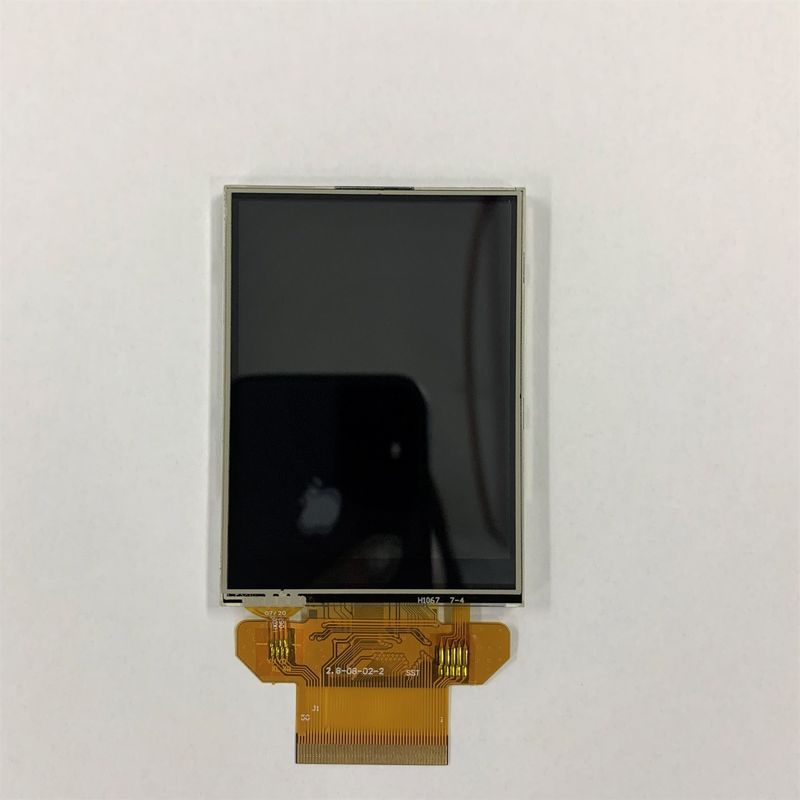

2.8 Inch TFT Display | RYTPQ28NN08-02
Module size: 50.2(W)x69.3(H)x4.9(D)
Driver: ILI9341V
LVDS, White LED backlight, IPS, Wide temp, Transmissive, Capacitive Touch Screen, HDMI connection, CTP Driver: ILI9341V RoHS Compliant
1. IPS or 12 o'clock display screen.
2. Customized :Logo,Touch Button,Silk-Printing,Mirror Cover Lens,Shape/Hole
3. Anti-Glare/Anti-Finger/ Anti-Reflective/Waterproof/Gloves Touch Available
4. Supply TFT/Touch Panel/touch display module(TFT+CTP)
| Model NO. | RYTPQ28NN08-02 |
| Digital LCD Module Type | Counting Module |
| Usage | Small-sized LCM, Monitor LCM, Notebook LCM |
| Touch Screen Type | Capacitive |
| Viewing Angle | TN+FILM |
| DOT-Matrix Graphic LCD Module Type | Row/Column-Driven |
| Drive Method | 1/4duty,1/3bias |
| Polarizer Type | Transmissive / Negative /Glare |
OUR SERVICE ADVANTAGES
1. More than 10 years experience, strong background in Monochrome LCD display design.
2. IATF16949:2016 and ISO9001:2015 certificated manufacture, provided all customized solutions.
3. Faster support in Front and After-sales services. Support customer from the product design.
WHAT CAN WE CUSTOM?
1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2.Display form: LCD panel/COB/COG/COF
3.Polarizer: Transflective, Transmissive, Reflective
4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
FAQ
Q:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q:How long is the lead time?
A:The lead time is about 2-3 working days after receipt of payment.
Q:Do you accept sample order?
A:Yes,sample order is welcome.
Q:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly raw materials,semi-finished and a small amount of finished products.After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks
