Product Details:
Payment & Shipping Terms:
|
| Product Type: | Product Type | Resolution: | 1024X3(RGB)X600 |
|---|---|---|---|
| Active Area(mm): | 164.9*100*7.13 | Surface Treatment: | Anti-Glare |
| Electrical Interface: | Lvds | ||
| High Light: | Lvds TFT LCD Display,IPS I2c TFT LCD Display,CTP Lcd Screen Module |
||

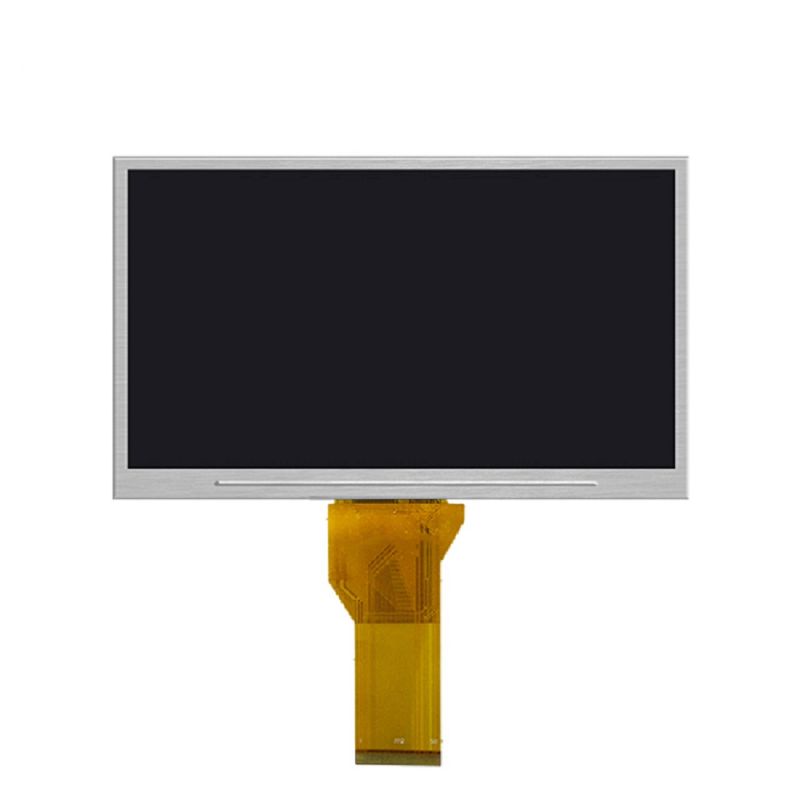

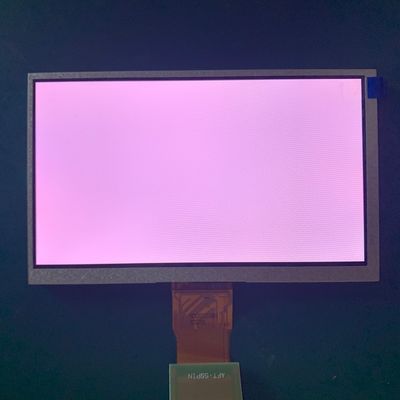

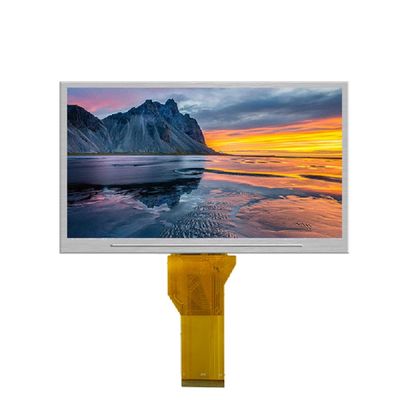

7inch 1024*600 LVDS IPS I2C TFT LCD display with CTP
RYT0700CIW02-01 is a TM (Transmissive) type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit and a back-light unit. The resolution of a 7.0" contains 1024RGBx600 dots. The following table described the features of RYT0700CIW02-01
|
Size
|
7.0 inch
|
|
Operating Temperature
|
-20ºC ~ 70ºC
|
|
Storage Temperature
|
-30ºC ~ 80ºC
|
|
Outline Dimension
|
165.00(W)x100.00(H)x7.73(D) mm
|
|
Viewing Area
|
154.88(W)x86.72(H) mm
|
|
Active Area
|
154.08(W)x85.92(H) mm
|
|
Support Systems
|
Windows/Android/Linux etc.
|
|
Warranty
|
1 year
|
|
PCAP Interface Type
|
LVDS
|
|
Structure
|
G+G
|
|
Display Model
|
Normally black/Transmissive
|
|
Resolution
|
1024X600
|
|
TFT Interface Type
|
RGB(50 pins) / HDMI / VGA
|
|
Luminance
|
500 cd/m²
|
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
1>Feature: High pixel, wide Angle, High contrast color
2>Application: Radio,Access control,Home appliances, Industrial control equipment
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY
Royal Display offers the original purchaser who has purchased a product from the lcd module tft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
