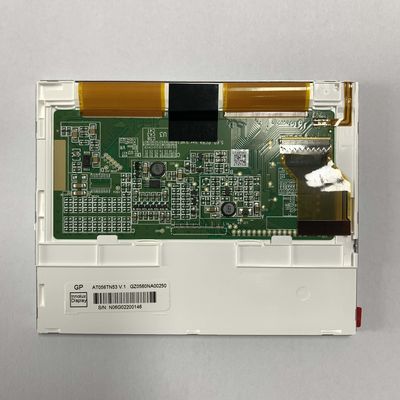

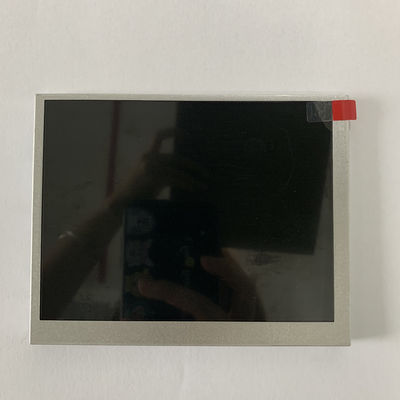

640X480 40pin TFT LCD Display Module Innolux At056tn53 V. 1

640X480 40pin TFT LCD Display Module Innolux At056tn53 V. 1
640X480 40pin TFT LCD Display Module Innolux At056tn53 V. 1

Large Image :  640X480 40pin TFT LCD Display Module Innolux At056tn53 V. 1

Product Details:
Place of Origin: China
Brand Name: INNOLUX
Certification: RoHS
Model Number: AT056TN53
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 64pcs/carton
Delivery Time: 7~10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300,000 Piece/Pieces per Year
Detailed Product Description
Type: TFT Display Type: TFT LCD
Screen Size: 5.6'' Resolution: 640X3(RGB)X480
Driver Element: A-Si TFT Active Matrix Display Model: Stn, Normally Black, Transmissive
Outline (mm): 117.65(W) × 88.43(H) × 5.70(D) Active Area(mm): 101.57(W) × 76.18(H)
Surface Treatment: Anti-Glare Color Arrangement: RGB-stripe
Interface: Digital Backlight Power Consumption: 0.960W (Typ.)
Application: Industrial Application
High Light:

40pin TFT LCD Display Module

,

640X480 TFT LCD Display Module

,

5.6'' Lcd Monitor Module

Innolux 5.6'' At056tn53 V. 1 640X480 40pin TFT Touch Screen Display Module

PRODUCT DESCRIPTION

Panel Brand INNOLUX
Panel Model AT056TN53
Panel Type a-Si TFT-LCD , Panel
Panel Size 5.6 inch
Resolution 640*480
Display Mode STN, Normally Black, Transmissive
Surface Antiglare
Brightness 350:1 (Typ.)
Contrast Ratio 500:1 (Typ.)
Display Colors 262K (6-bit) , CIE1931 50%
Response Time 10/15 (Typ.)(Tr/Td)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type WLED
Signal Interface Parallel RGB (1 ch, 6-bit) , 40 pins

640X480 40pin TFT LCD Display Module Innolux At056tn53 V. 1 0

OUR SERVICE ADVANTAGES



1)CUSTOMER FOCUSED


We’re here to serve customers, and they receive our unwavering focus. We also continually communicate with those we serve, encouraging feedback on how we can better meet their needs and expectations. This helps guide our priorities and methodology.


2)EFFECTIVE TEAMWORK


We feel a team-based approach works best, for all engagements. Effective teamwork demands strong relationships, respect, and diversity of thought from all contributors, and we foster an environment where those are stimulated.


3)ADVANCED FACILITIES


The advanced facilities and automated production lines in designated class 100 and class 1000 clean rooms ensure the product quality.
With the pioneering technical team and sophisticated manufacturing facilities, Royal’s products and services are both competitive and quality.


4) INTEGRATED SOLUTIONS


We propose most suitable display solutions to our customers integrated with capacitive touch functions and optical bonding solutions.
The wide selection and integrated solutions of display technologies in our company meet the customers' effective one-stop customization requirements. This includes LCM, TFT, OLED, EPD, CTP and optical bonding.





PRODUCTS QUALITY ASSURANCE


1. High-quality raw material supplier
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.


2. Other materials
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials


3. Strict quality control


Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.





640X480 40pin TFT LCD Display Module Innolux At056tn53 V. 1 1





640X480 40pin TFT LCD Display Module Innolux At056tn53 V. 1 2

FAQ



1.How do you guarantee the quality?
Re: We pass ISO900, ISO14001 and TS16949 certificates.Strict quality control Inspection is done in FOG==>LCM==>LCM+ RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC



2. What about the delivery time?
Re: For standard product,1 week for samples,4 weeks for bulk order;
For customization,3-4 weeks for samples,4 weeks for mass production after sample confirmation.



3. Is there any warranty for your products?
Re: Yes,we offer 12-month warranty for unartificial defect.



4.Do you have any MOQ limit?

Re: No, small quantity order is also welcome!



5. What is your payment method?
Re: We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.



6. Do you offer customization service?
Re: Yes,welcome OEM&ODM,please send us your requirements for assessment.



HOW DOES OUR CUSTOMER SAID



640X480 40pin TFT LCD Display Module Innolux At056tn53 V. 1 3640X480 40pin TFT LCD Display Module Innolux At056tn53 V. 1 4
