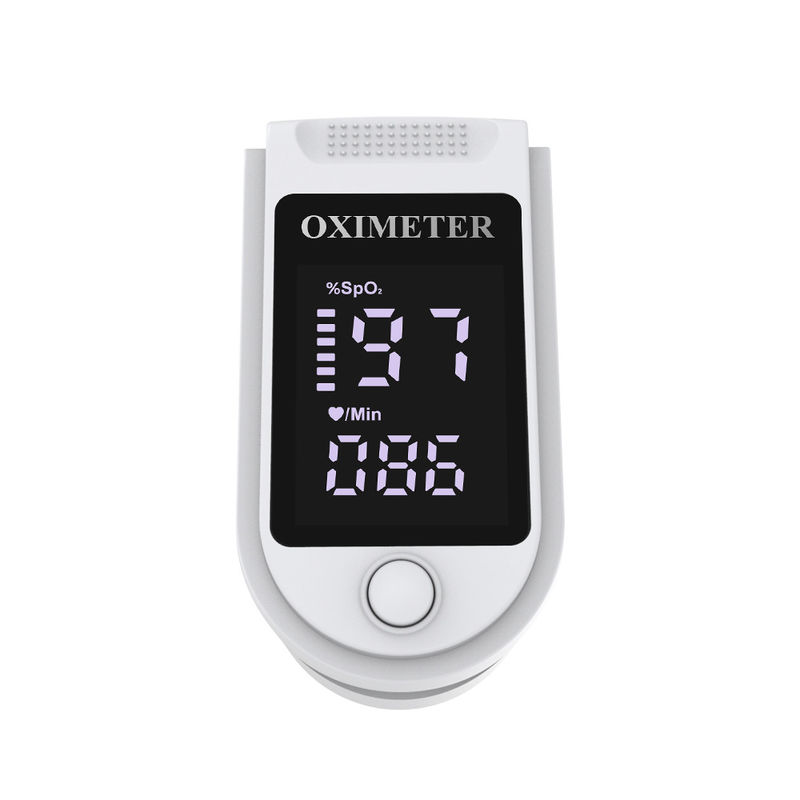

Blood Saturation 250bpm 128x64 dots Finger Pulse Oximeter 0.96" OLED

Blood Saturation 250bpm 128x64 dots Finger Pulse Oximeter 0.96" OLED
Blood Saturation 250bpm 128x64 dots Finger Pulse Oximeter 0.96" OLED Blood Saturation 250bpm 128x64 dots Finger Pulse Oximeter 0.96" OLED Blood Saturation 250bpm 128x64 dots Finger Pulse Oximeter 0.96" OLED

Large Image :  Blood Saturation 250bpm 128x64 dots Finger Pulse Oximeter 0.96" OLED

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYO004
Payment & Shipping Terms:
Minimum Order Quantity: 3K
Price: USD6.88~10.39/pcs
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 10-15 Working Days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 300k/Month
Detailed Product Description
Model No.: RYO004 Display Resolution: 128x64 Dots
Display Color: White Controller IC: SSD1306
Outline Dimensions: 27.5*27.8*2.6mm Interface: I2c Port, Spi, Parallel
Dot Patch: 0.17*0.17mm Pixel Size: 0.15*0.15mm
Active Area: 21.74*11.20mm Operating Temp.: -20°C~+70°C
Storage Temp.: -30°C~+80°C Usage: Outdoor, Indoor, Adertising Display, Audio, Automotive Control Panels, Medical Devices
High Light:

128x64 Dots Finger Pulse Oximeter

,

250bpm Finger Pulse Oximeter

,

0.96" OLED Fingertip Oxygen Meter

Mini Finger Pulse Oximeter Blood Saturation Fingerstrip Oxygen Meter

Display mode :
0.96" Dual-color OLED display(blue and yellow)
Screen resolution :
128*64
SpO2 measuring range :
0%~100%, (the resolution is 1%).
Accuracy :
70%~100%: ±2%, Below 70% unspecified.
PR measuring range :
30bpm~250bpm, (the resolution is 1bpm)
Accuracy :
±2bpm or ±2% (whichever is greater)
Measurement performance in weak filling condition :
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2bpm or ±2%
(whichever is greater).
Resistance to surrounding light :
The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less
than ±1%.
)Power consumption :
no more than 100mA
Voltage :
DC 3.6V~4.2V
Power supply :
3.7V rechargeable lithium battery × 1
Battery working hour :
20 hours in theoretical
Battery service life :
no less than 500 times of charge and discharge
Safety type :
Internally powered equipment, Type BF applied part

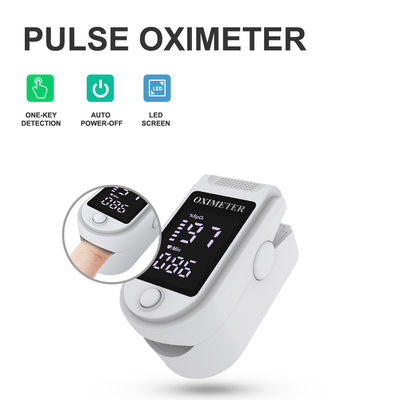

ABOUT OXIMETER



Figure pulse oximeter The oximeter monitors fluctuations in blood oxygen saturation in small volume. Using fingers to care family health is easier than going to hospital.

Features:

-OLED display: Dual Color OLED display. Better shows the data.

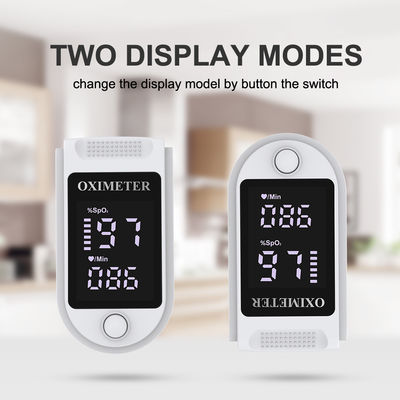

-Multi-direction display: Rotatable multidirectional display. 4 directions, 6 modes, allow you to view your results in any direction.

-Alarm function: Set the alarm and beep according to your needs. There will be a warning once the measured values go beyond the setting. Know it immediately.

-With case: Small in volum, light in weight, convenient to carry. With a landyard and carrying case, convenient to use and to storage

-Long battery life: 1) Low-power consumption, continuously work for 6 hours.

2)In the absence of signal, the product will be in after 8 seconds to enter standby state.



PRODUCT APPLICATION
Blood Saturation 250bpm 128x64 dots Finger Pulse Oximeter 0.96" OLED 0
OUR SERVICE ADVANTAGES



1.Small order would be accepted.

2.Mass production lead time would be guaranteed.

3.Each order will have 0.2%-0.5% spare.

4.Even customers do not have a cooperation with us, we aslo can provide technical services.

5.If mass production has any quality problem, customer can return it.



Blood Saturation 250bpm 128x64 dots Finger Pulse Oximeter 0.96" OLED 1
