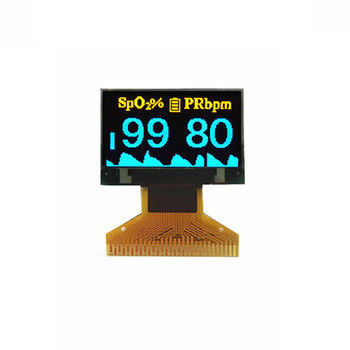

COG FPC 0.96in I2C 128x64 OLED Display Module For Medical
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYO12864-108-KSWG7P096 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 10-15 Working Days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Model No.: | RYO12864-108-KSWG7P096 | Resolution: | 128x64 Dots |
|---|---|---|---|
| Display Color: | White | Controller IC: | SSD1306 |
| Outline Dimensions: | 27.5*27.8*2.6mm | Interface: | I2c Port, Spi, Parallel |
| Dot Patch: | 0.17*0.17mm | Pixel Size: | 0.15*0.15mm |
| Active Area: | 21.74*11.20mm | Operating Temp.: | -20°C~+70°C |
| Storage Temp.: | -30°C~+80°C | Usage: | Outdoor, Indoor, Adertising Display, Audio, Automotive Control Panels, Medical Devices |
| Highlight: | COG FPC OLED Display Module,128x64 OLED Display Module,0.96in I2C OLED Display Panel |
||
Product Description
128x64 Graphic OLED Display | RYO12864-108-KSWG7P096
ABOUT OLED DISPLAY
OLED is an organic light-emitting diode with the characteristics of spontaneous light, wide viewing, wide temperature range, high contrast, low power consumption, high reaction rate and visibility in sunlight.
It is a new generation of display technology. We have used Taiwan OLED display glass for design, and produce products with Full-Automatic Production Line.
Our solution make the OLED product perfect for suing industrial products, whose working environment is hard. We then carry out the OLED display bonding processing in our factory in China.
We are dedicated to providing top quality display products for industrial display solution to improve the end client users' experience.
Our 0.96 inch OLED Displays are widely used at consumer and industrial applications such as Audio, Automotive control panels, Medical devices, White goods or Home automation products, Smart Watch, Smart Bracelet, Device, Equipment, Printer, Projector, Scanner, Fax Machine, Copier, Bar Code Printer and etc.
| Product Name |

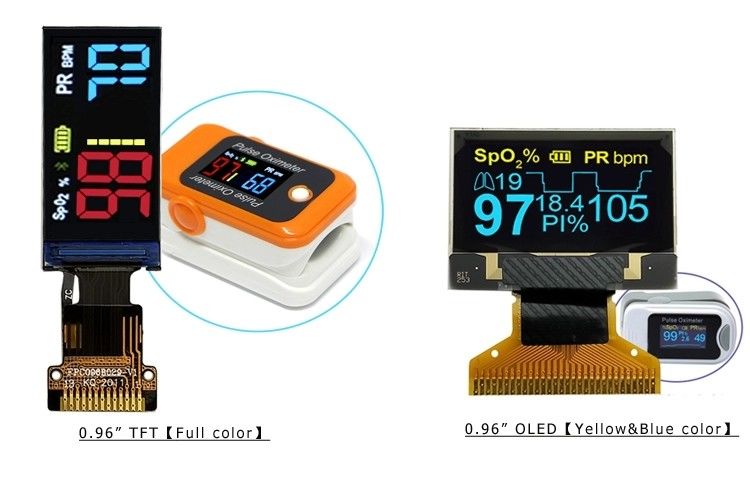

0.96'' Inch I2C OLED Display 128x64 Yellow-Blue For Oximeter
|
||
|
Outline Size
|
26.7x19.26mm | Interface | SPI,I2C |
|
Viewing Area
|
23.74x13.20mm | Drive IC | SSD1306 |
|
Connector
|
COG+FPC | Display color | Y&B |
|
Resolution
|
128x64 | Working voltage | 3.0V |
|
Viewing Angle
|
160 degree | Drive Method | 1/64 duty, 1/9 bias |
|
Operating temperature
|
-30℃~+80℃ | Storage temperature | -40℃~+85℃ |
PRODUCT APPLICATION
OUR SERVICE ADVANTAGES
1.Small order would be accepted.
2.Mass production lead time would be guaranteed.
3.Each order will have 0.2%-0.5% spare.
4.Even customers do not have a cooperation with us, we aslo can provide technical services.
5.If mass production has any quality problem, customer can return it.
