AT080TN64 Innolux 50 Pin 8" 800x480 TFT LCD Display

AT080TN64 Innolux 50 Pin 8" 800x480 TFT LCD Display
AT080TN64 Innolux 50 Pin 8" 800x480 TFT LCD Display

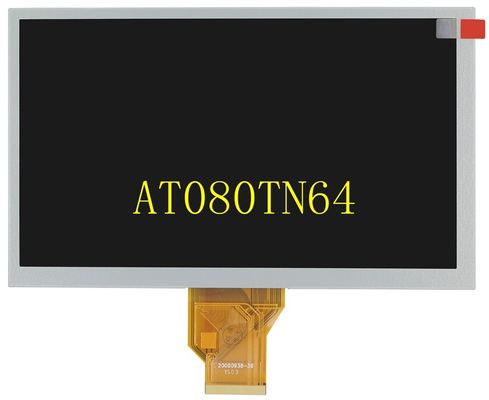

Large Image :  AT080TN64 Innolux 50 Pin 8" 800x480 TFT LCD Display

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: RoHS
Model Number: AT080TN64
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: $USD 18.9/pcs
Packaging Details: 30pcs/carton
Delivery Time: 7~10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300,000 Piece/Pieces per Year
Detailed Product Description
Type: TFT Display Type: TFT LCD
Screen Size: 8'' Resolution: 800X3(RGB)X480
Driver Element: A-Si TFT Active Matrix Outline (mm): 192.8(W) X 116.9(H) X 6.4(D)
Active Area(mm): 176.64(W) X 99.36(H) Color Arrangement: RGB-stripe
Surface Treatment: Anti-Glare Backlight Power Consumption: 2.232 W (Typ)
Interface: Digital Driving Methods: 1+2 Dot
Application: Industrial Application
High Light:

800x480 TFT LCD Display

,

Innolux TFT LCD Display

,

AT080TN64

Innolux AT080TN64 8inches 800x480 50 pin TFT LCD display

PRODUCT DESCRIPTION

Item Description
Model Name AT080TN64
Product type TFT LCD Module
Screen Size 8.0"
Resolution 800X3(RGB)X480
Module Size(mm) 192.8(W) X 116.9(H) X 6.4(D)
Active Area(mm) 176.64(W) X 99.36(H) mm
Surface treatment Anti-Glare
Color arrangement RGB-stripe
Backlight Power consumption 2.232 W (Typ)
Panel Power consumption 0.226 W (Typ)
Driving methods 1+2 dot
Interface Digital
Operation Temperature( ºC) -20º C~70ºC
Storage Temperature (ºC) -30º C~80ºC



AT080TN64 Innolux 50 Pin 8" 800x480 TFT LCD Display 0
